GS8041i05.55A603

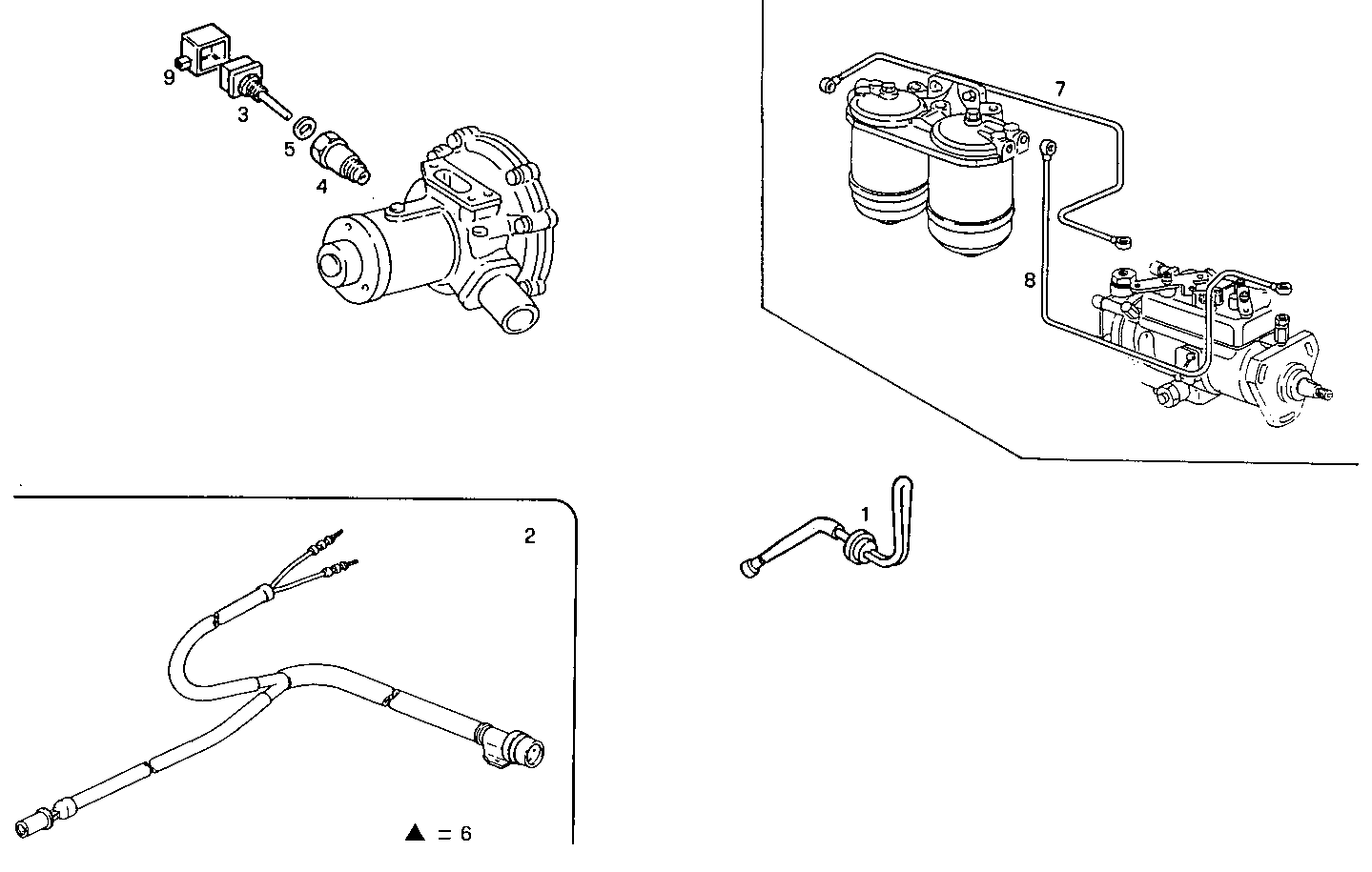

A20040056 WATER PREHEATER DEVICE - 220V
Item | Part number | Description |
---|---|---|
1 | 8023335 | RESISTOR |
2 | 8023336 | ENGINE HARNESS |
3 | 8017120 | THERMOSTAT [from 10-93] |
4 | 8017119 | SPACING BAR [from 10-93] |
5 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
6 | 8009376 | WIRE/CABLE ASSY |
7 | 8018669 | HOSE L=700 MM |
8 | 8018670 | HOSE L=550 MM |
9 | 8021565 | CAP |
