GS8041i06.55A612

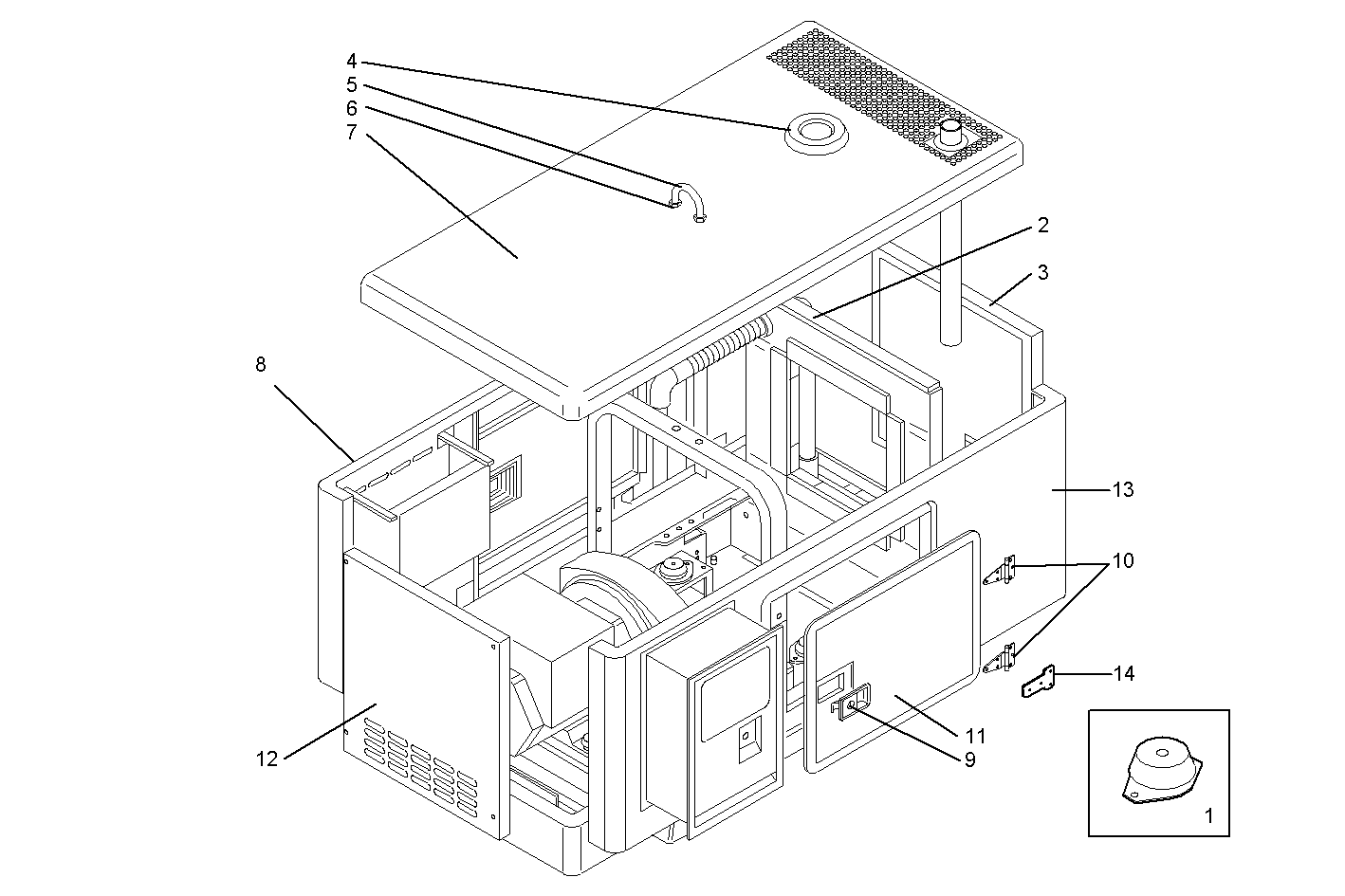

620700.002 FRAME
| Item | Part number | Description |
|---|---|---|
| 1 | 8094144 | DOWEL |
| 2 | 8094143 | PARTITION PANEL |
| 3 | 8094138 | FRONT WALL |
| 4 | 8094112 | PLASTIC PLUG |
| 5 | 8094113 | HOOK |
| 6 | 8094114 | RUBBER PLUG |
| 7 | 8094139 | ROOF |
| 8 | 8094136 | SIDE PANEL LEFT |
| 9 | 8094109 | DOOR LOCK |
| 10 | 8094108 | DOOR HINGE [FROM 2004] |
| 11 | 8094124 | SIDE DOOR SIDE |
| 12 | 8094137 | REAR WALL |
| 13 | 8094135 | SIDE PANEL RIGHT |
| 14 | 8094155 | DOOR HINGE [UP TO 2004] |
