GS8061i25.05A061

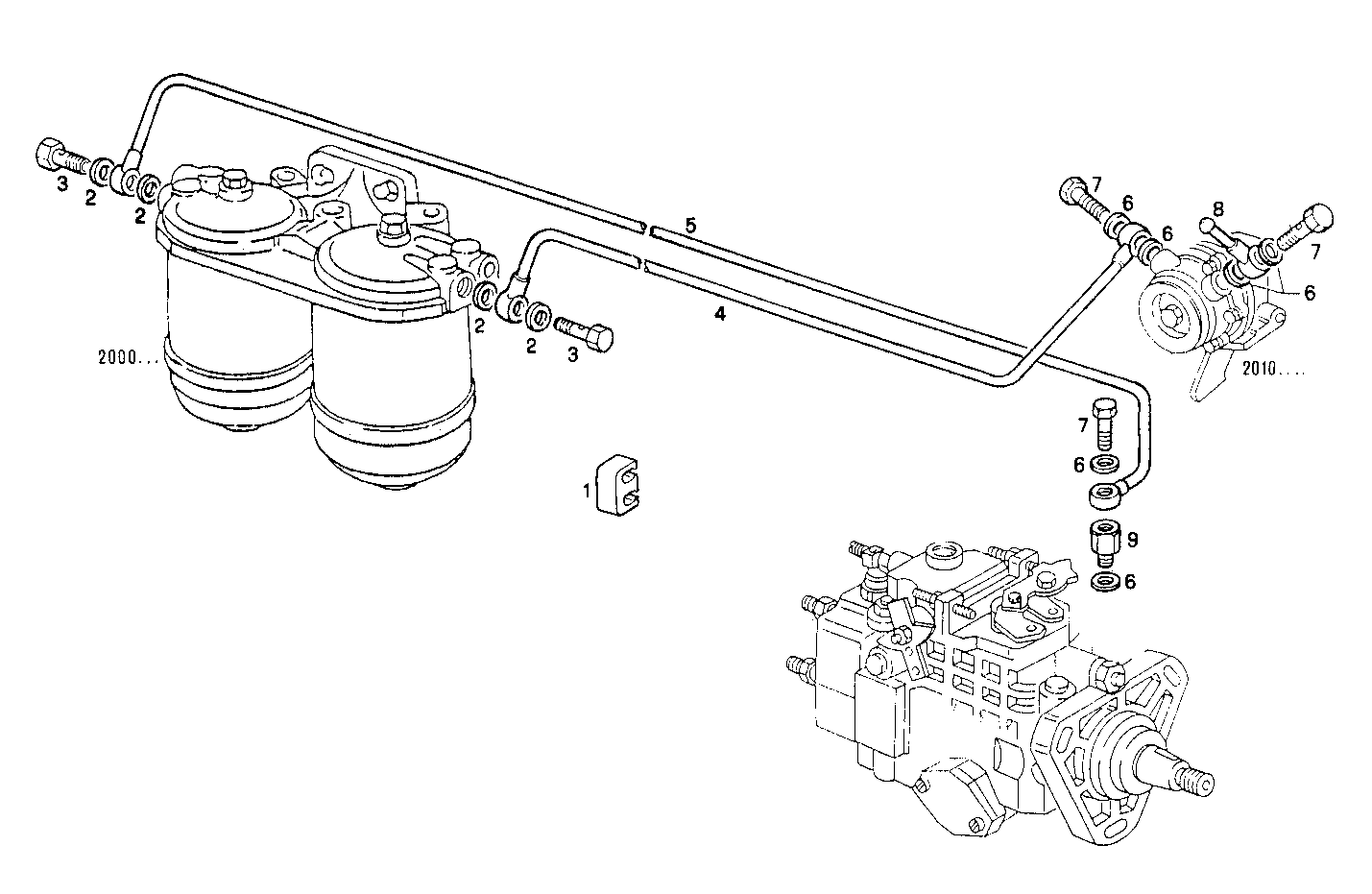

2030.035 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 4807808 RETAINER
2 4858608 SEAL GASKET dia.14x19,5x1,5
3 4864083 SCREW CONNECTOR M14X1,5X30 MM
4 4801669 FUEL LINE
5 4801671 FUEL LINE
6 4858607 WASHER Ø12X17 MM SP=1,5 MM
7 4864082 BANJO BOLT M12X1,5X25 MM
8 98420346 FUEL LINE
9 4802434 THREADED UNION M12X1,5
