GS8061i25.05A602

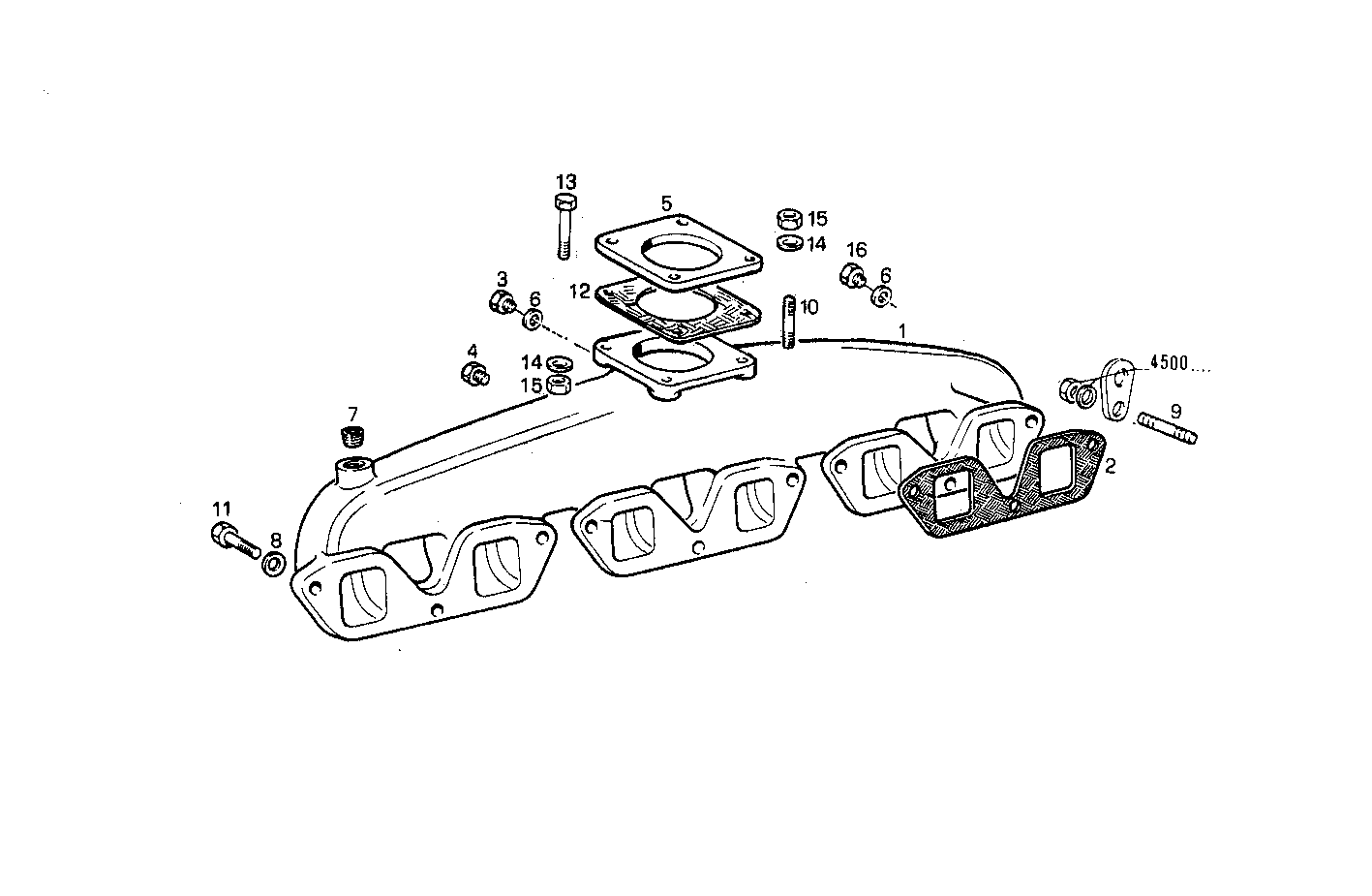

0710.030 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 4776966 | INTAKE ELBOW |
| 2 | 4851921 | INTAKE ELBOW GASK. |
| 3 | 4753563 | PLUG M10X1,5 |
| 4 | 4577310 | THREADED PLUG |
| 5 | 4935889 | FLANGE |
| 6 | 4858606 | GASKET Ø10X14X1 MM |
| 7 | 10269850 | LOCK PLUG Ø22 MM |
| 8 | 17094914 | WASHER 8x16 |
| 9 | 13543321 | STUD M8X16X20 MM |
| 10 | 16729324 | STUD M8X12X20 MM |
| 11 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 12 | 98400790 | FLAT ENGINE GASKET |
| 13 | 16605824 | HEXAGON BOLT M8X35 MM |
| 14 | 17090174 | SPRING WASHER Ø10X20 MM |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 11903111 | LOCK PLUG M10X1,25 |
