GS8061i25.05A602

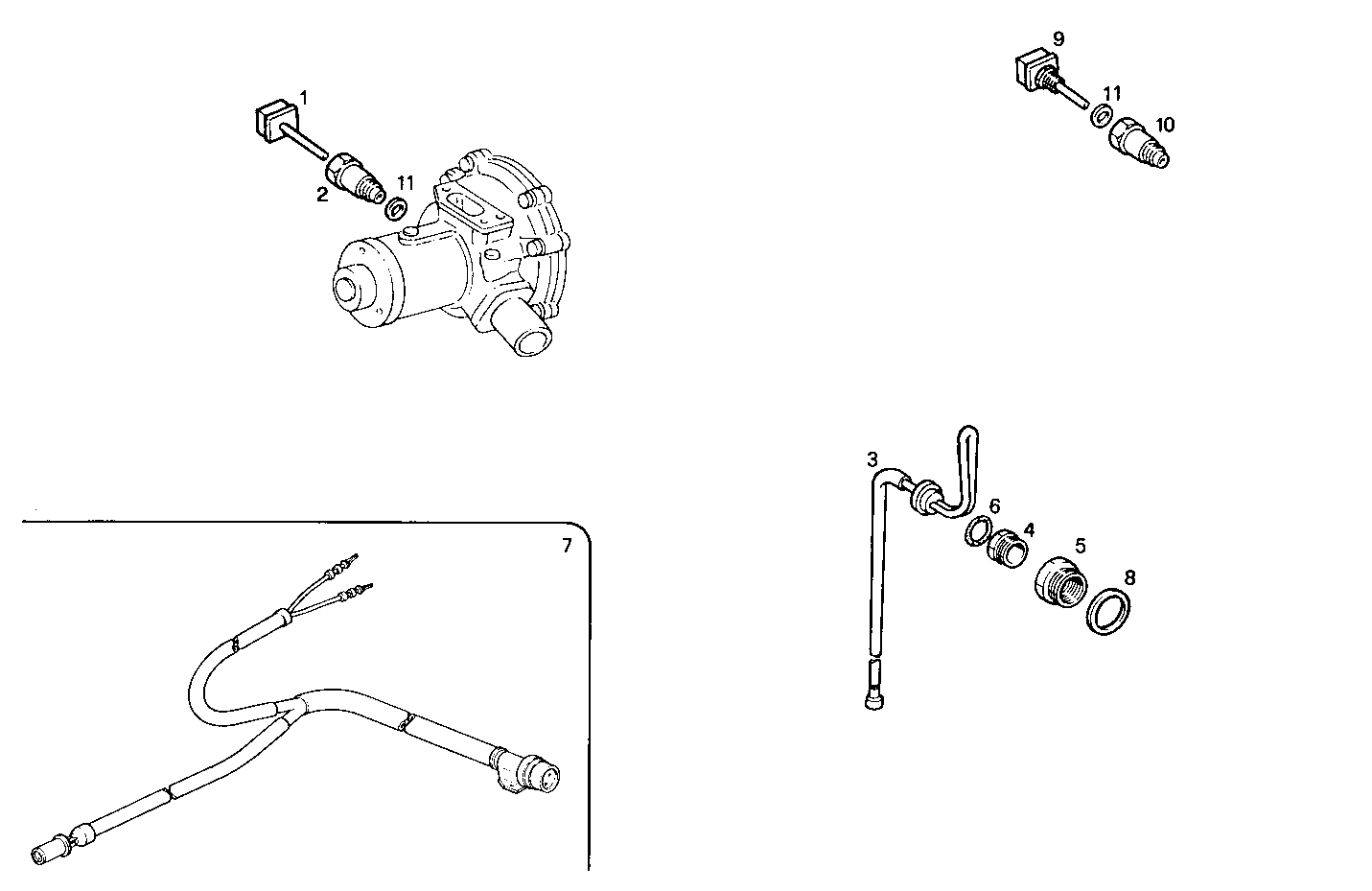

A20040045 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8102863 | THERMOSTAT |
| 2 | 4936182 | SPACING BAR |
| 3 | 8016093 | RESISTOR |
| 4 | 8016092 | PIPE SOCKET |
| 5 | 8016070 | PIPE SOCKET |
| 6 | 17282381 | O-RING Ø25,07 MM SP=2,62 MM |
| 7 | 8016257 | WIRE/CABLE |
| 8 | 10265460 | SEAL GASKET Ø42X49 MM SP=1,5 MM |
| 9 | 8017120 | THERMOSTAT [from 10-93] |
| 10 | 8017119 | SPACING BAR [from 10-93] |
| 11 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
