GS8061i25.05A603

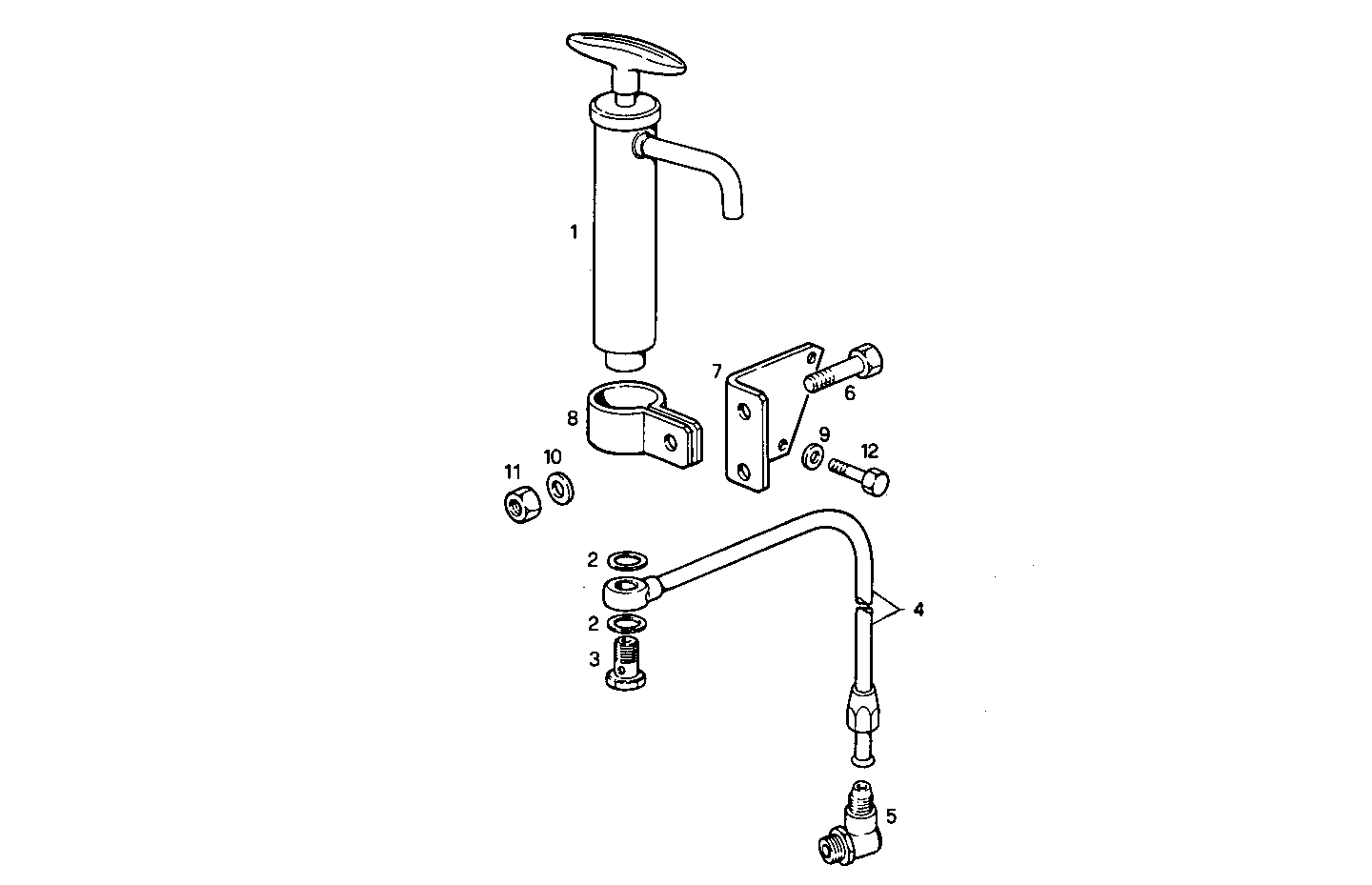

A49010005 OIL DRAIN PUMP - left side
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 3 | 4864084 | BANJO BOLT M16X1,5 |
| 4 | 8010983 | OIL LINE |
| 5 | 4928527 | PIPE SOCKET |
| 6 | 16043424 | HEXAGON BOLT M8X20 MM |
| 7 | 4936469 | RETAINER |
| 8 | 4928851 | CLIP |
| 9 | 17091074 | WASHER Ø12X24X2,8 MM |
| 10 | 11198371 | SPRING WASHER Ø10X20 MM |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
