GS8061Si16.05A606

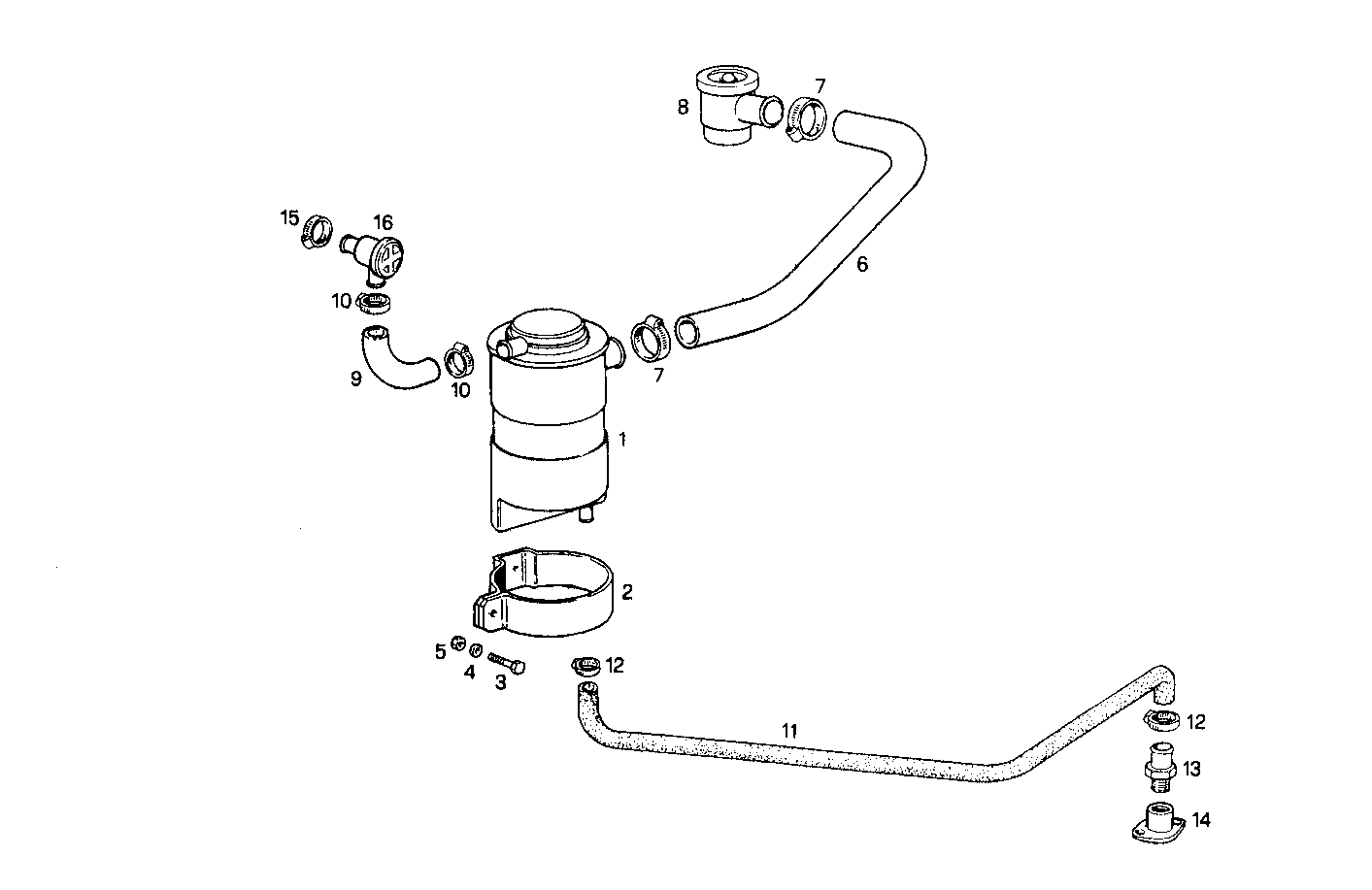

0450.059 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 7303441 BREATHER [up to 03-97]
2 4860370 SUPPORT [up to 03-97]
3 16605734 HEXAGON BOLT M8X30 MM
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 17037931 HEXAGON NUT M8X1,25
6 8018443 AIR HOSE
7 17764691 CLIP Ø25/40 MM
8 4812047 BREATHER
9 8108085 RUBBER SLEEVE
10 18088391 CLIP Ø16/25 MM
11 8018442 OIL HOSE
12 17764491 CLIP Ø16/25 MM
13 4616630 THREADED UNION
14 8008802 PIPE SOCKET M32X1,5/M16X1,5
15 17765191 CLIP Ø70/90 MM
16 4810557 BYPASS VALVE
