GS8061Si16.05A651

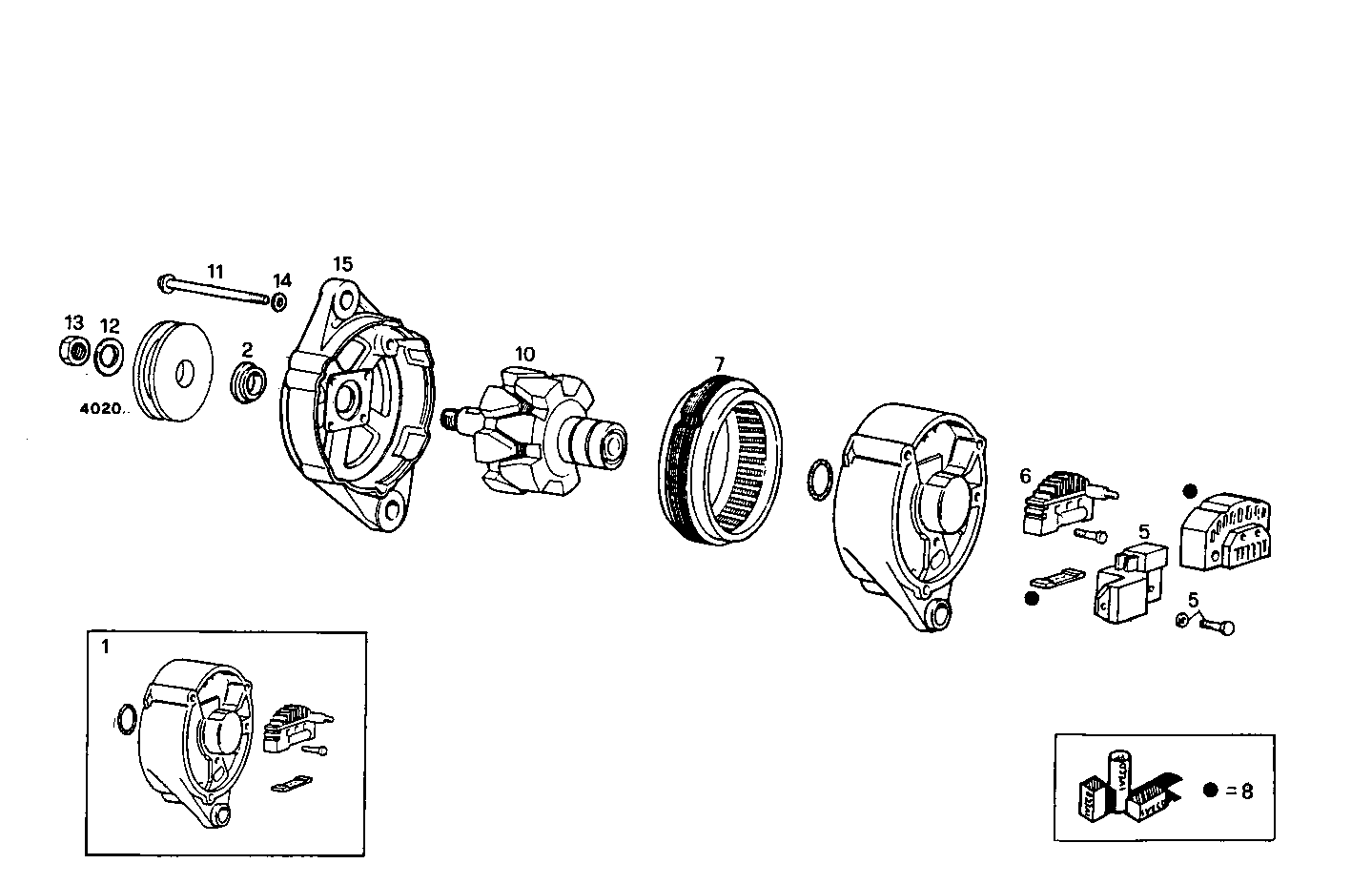

T1402005 SELF-REGULATED ALTERNATOR - (components)

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 79070380 GENERATOR SUPPORT ASSY
2 4479391 SPACING BAR
5 93193292 VOLTAGE REGULATOR MARELLI - 12V
6 79070381 RECTIFIER BRIDGE
7 79084342 GENERATOR STATOR
8 79070385 KIT-GENERATOR
10 8193399 ROTOR
11 11030321 HEXAGON BOLT M6X80 MM
12 11200171 SPRING WASHER Ø15 MM
13 12164021 HEXAGON NUT M14X1,5
14 14084211 CASTLE NUT M6
15 79070377 GENERATOR SUPPORT
