GS8061Si16.06

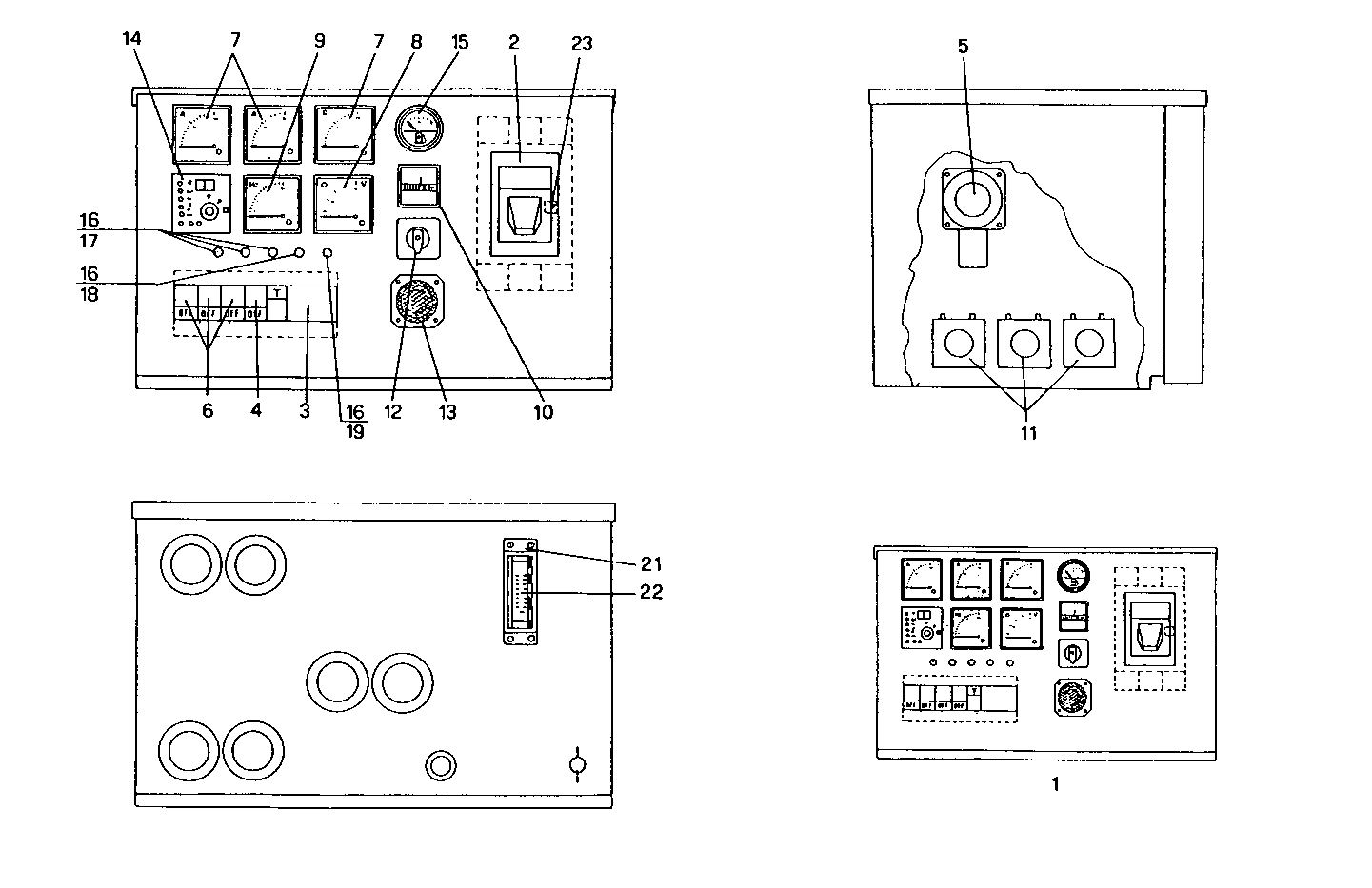

A60000924 MANUAL CONTROL BOARD
Item |
Part number |
Description |
1 |
8093142 |
RUBBER PAD 250-300 KVA |
2 |
8093143 |
RUBBER PAD 350 KVA Ø105 |
3 |
8092798 |
DIFFERENTIAL SWITCH |
4 |
8092806 |
RELAY |
5 |
8093144 |
RUBBER PAD 350 KVA Ø120 |
6 |
8092793 |
SWITCH |
7 |
8093145 |
RUBBER PAD 400 KVA |
8 |
8109465 |
VOLTMETER |
9 |
8100632 |
FREQUENCYMETER |
10 |
8090251 |
HOURMETER |
11 |
8093146 |
RUBBER PAD 20 KVA |
12 |
8104624 |
SWITCH |
13 |
8107950 |
ACOUSTIC HORN |
14 |
8092692 |
ELECTR.CONTR.UNIT |
15 |
8092811 |
FUEL LEVEL GAUGE |
16 |
8105267 |
FUSE BOX 2A |
17 |
8105268 |
FUSE 2A |
18 |
8092812 |
FUSE 20 A |
19 |
8092813 |
FUSE 4 A |
21 |
8092799 |
CONNECTION |
22 |
8092809 |
CONNECTION |
23 |
8021328 |
MINIMUN TENSION COIL |
