GS8061SRi25.05A066

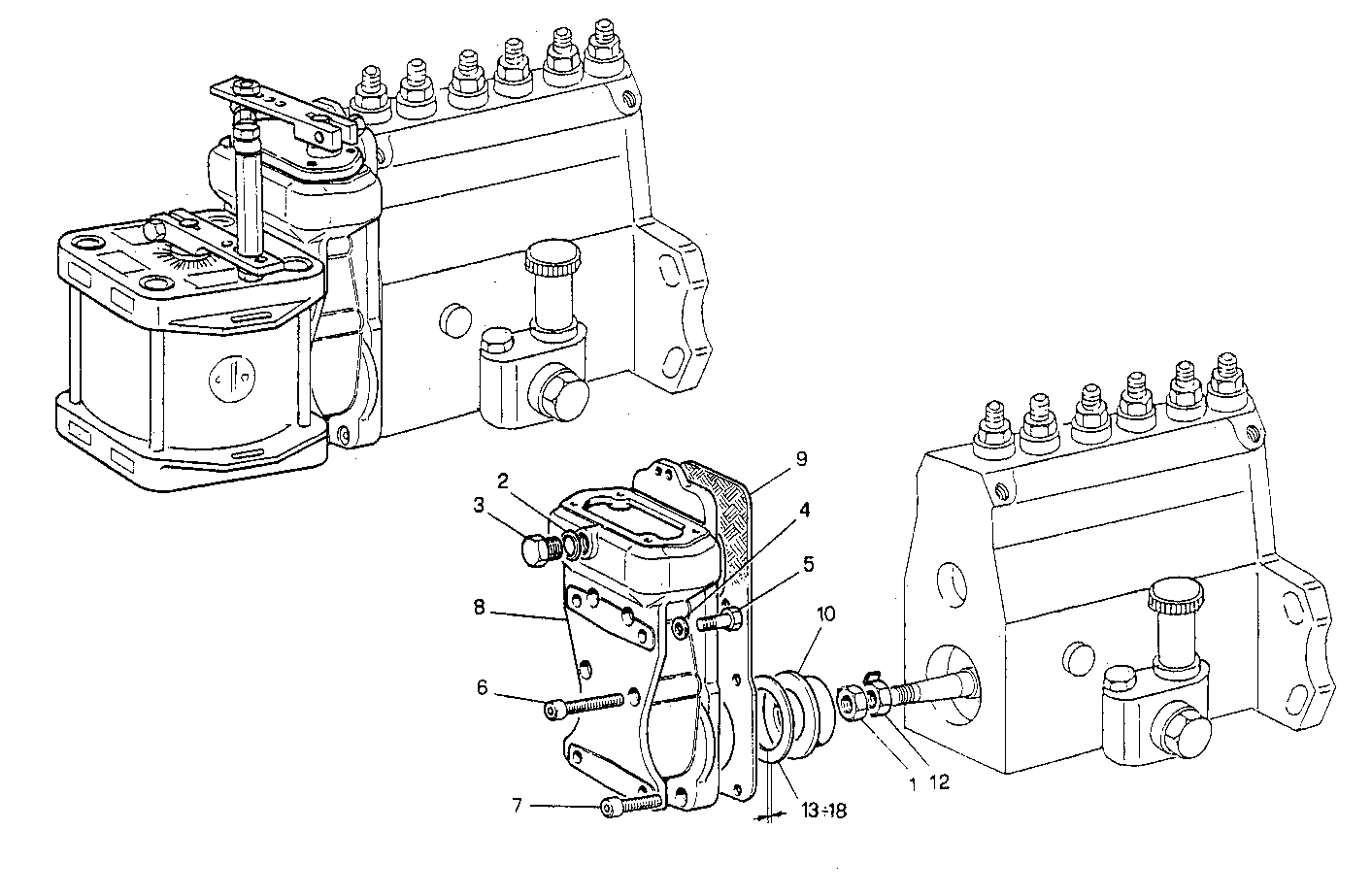

1460.018/01 ELECTRONIC SPEED GOVERNOR

Iveco/FPT ELECTRONIC SPEED GOVERNOR

Item Part number Description
1 10177311 NUT
2 98474309 WASHER Ø16X24 MM SP=1,9 MM
3 16992411 THREADED PLUG M16X1,5
4 17088474 WASHER Ø6X12 MM
5 4934404 SCREW
6 14309221 SCREW M6X65
7 16689134 SOCKET-HEAD SCREW M6X16 MM
8 8007453 SUPPORT
9 8013620 GASKET
10 8108613 FLANGE
12 8108716 NUT
13 8012528 SPACING BAR 2,00 MM
14 8012529 SPACING BAR 1,80 MM
15 8012530 SPACING BAR 1,50 MM
16 8012531 SPACING BAR 1,20 MM
17 8012532 SPACING BAR 0,75 MM
18 8012533 SPACING BAR 0,50 MM
