GS8061SRi25.05A601

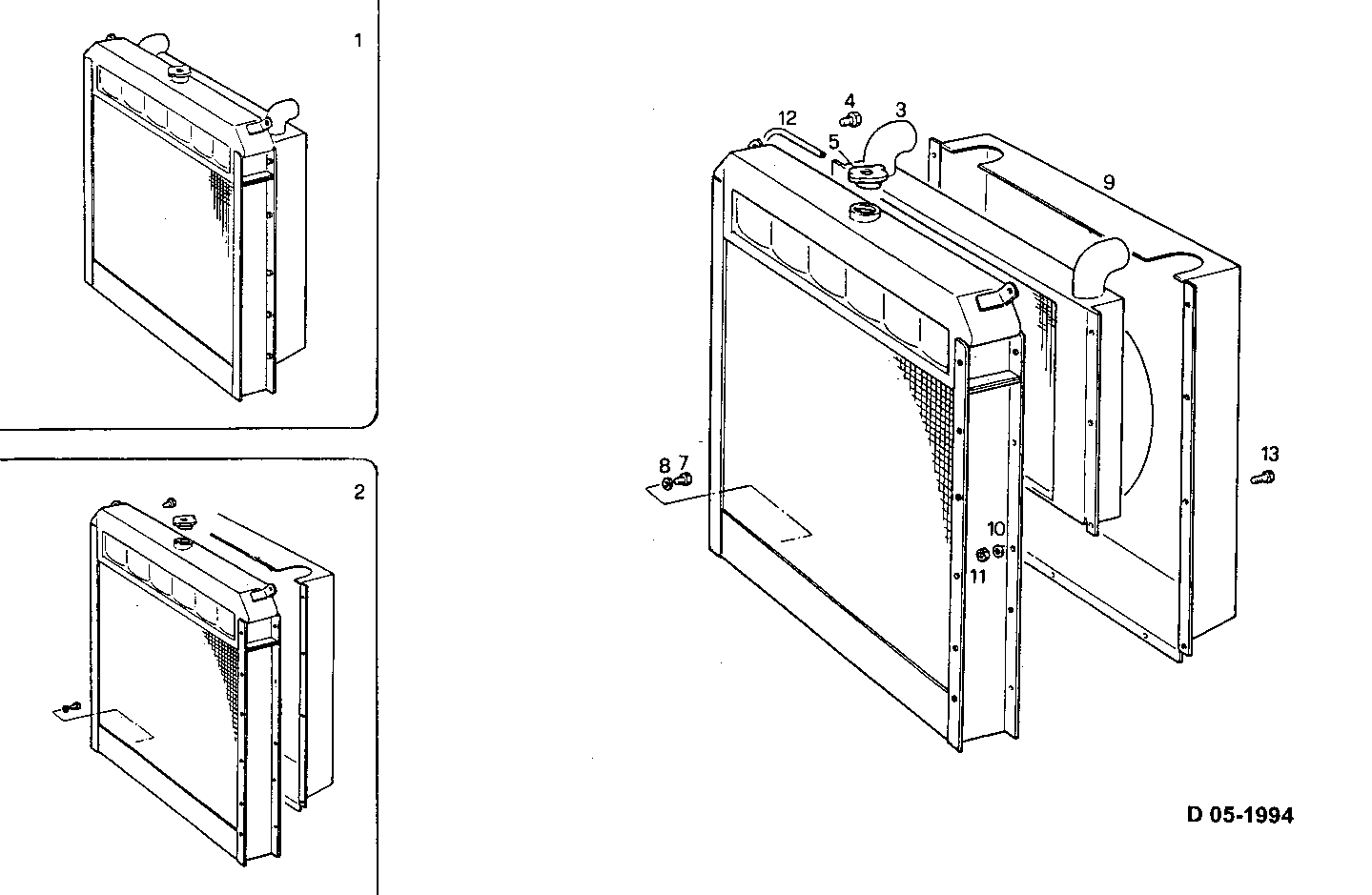

3300.004/02 RADIATOR
Item | Part number | Description |
---|---|---|
1 | 8017125 | WATER RADIATOR ASSY [from 05-94] |
2 | 8018656 | WATER RADIATOR ASSY [from 05-94] |
3 | 8018659 | INTERCOOLER [from 05-94] |
4 | 8105096 | PLUG |
5 | 8107632 | RADIATOR PLUG |
7 | 16992340 | THREADED PLUG M14X1,5 |
8 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
9 | 8018658 | AIR HOOD |
10 | 14496501 | WASHER Ø8,5 MM |
11 | 17037931 | HEXAGON NUT M8X1,25 |
12 | 17723181 | WATER HOSE |
13 | 16043424 | HEXAGON BOLT M8X20 MM |
