GS8061SRi25.05A601

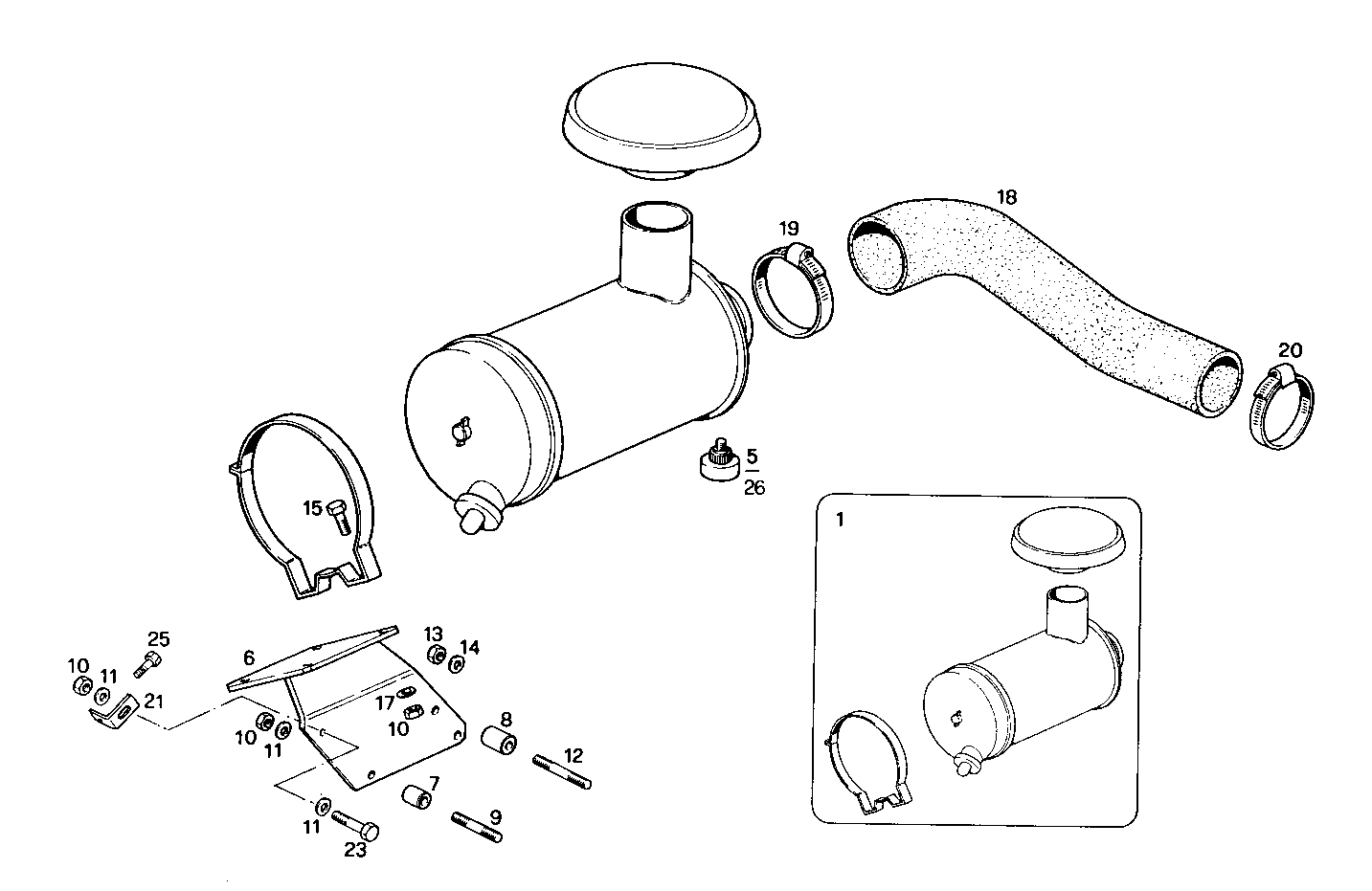

A21210010 DRY AIR CLEANER - with mechanical clogging gauge - genset

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8013302 AIR CLEANER ASSY
5 4936137 CHOCKED FILTER INDIC. MECHANICAL
6 8014570 SUPPORT
7 8015452 SPACING BAR
8 8015453 SPACING BAR
9 16729524 STUD M8X1,25X30
10 17037931 HEXAGON NUT M8X1,25
11 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
12 16731524 STUD M8X40 MM
13 17038121 HEXAGON NUT M10
14 17090474 SPRING WASHER Ø10X27 MM SP=2,5
15 16605524 HEXAGON BOLT M8X20 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 8014592 RUBBER SLEEVE
19 17765391 CLIP Ø90/110 MM
20 17765191 CLIP Ø70/90 MM
21 8015921 RETAINER
23 16605624 HEXAGON BOLT M8X25 MM (8.8)
25 16606024 SCREW M8X45 MM
26 8022540 CHOCKED FILTER INDIC. MECHANICAL
