GS8061SRi25.05A602

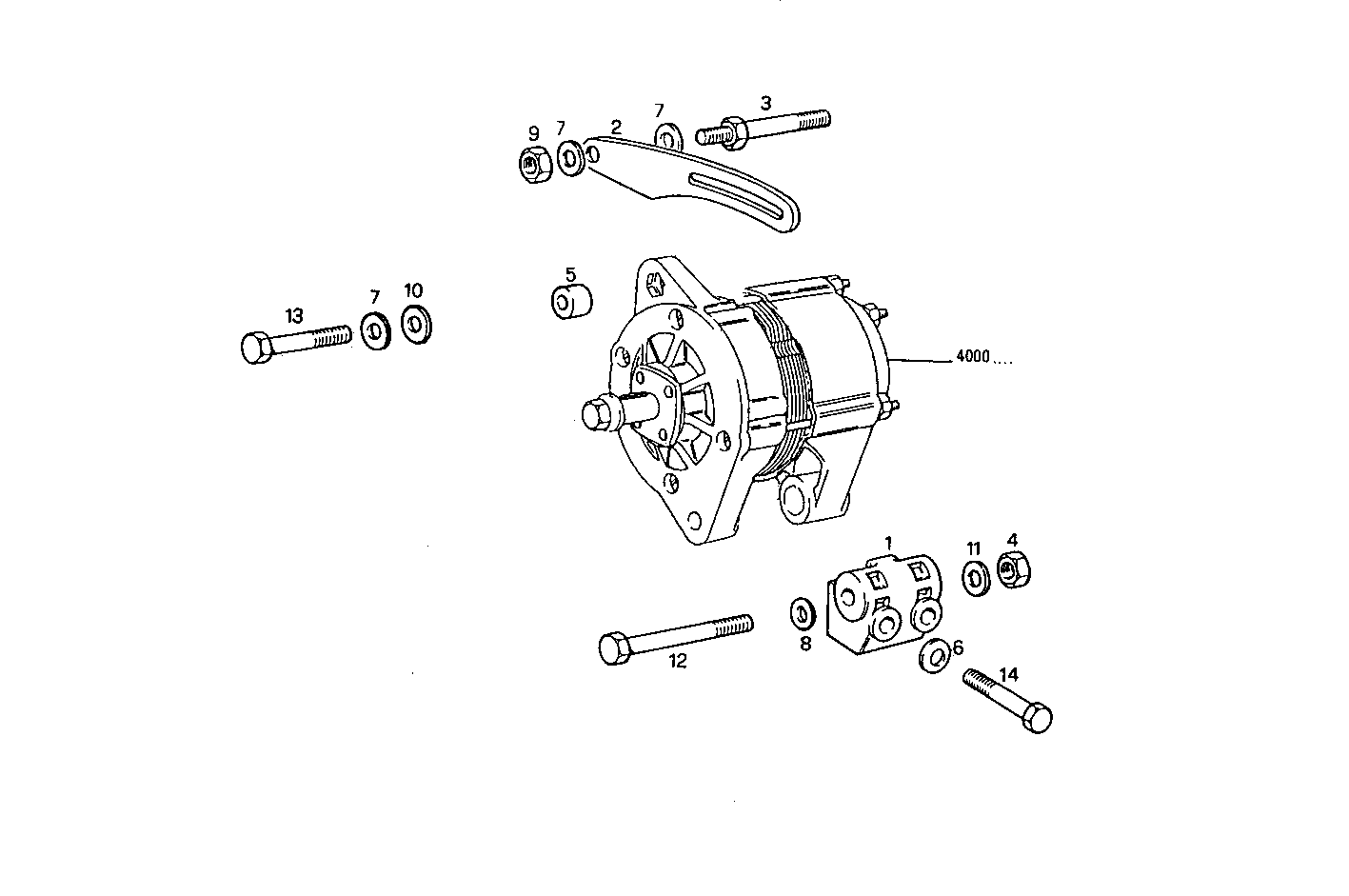

4010.093 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 4600128 GENERATOR SUPPORT
2 4787485 TURNBUCKLE
3 4605854 STUD
4 17036821 NUT
5 4619064 SPACING BAR
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17090174 SPRING WASHER Ø10X20 MM
8 17091074 WASHER Ø12X24X2,8 MM
9 17038221 HEXAGON NUT M10
10 17095104 WASHER Ø10X21X2 MM
11 17095304 WASHER Ø12X24 MM
12 15541821 HEXAGON BOLT M12X1,25X120 MM [up to 565948]
13 15970921 HEXAGON BOLT M10X1,25X35 MM
14 16606124 HEXAGON BOLT M8X50 MM
