GS8210SRi26.02A602

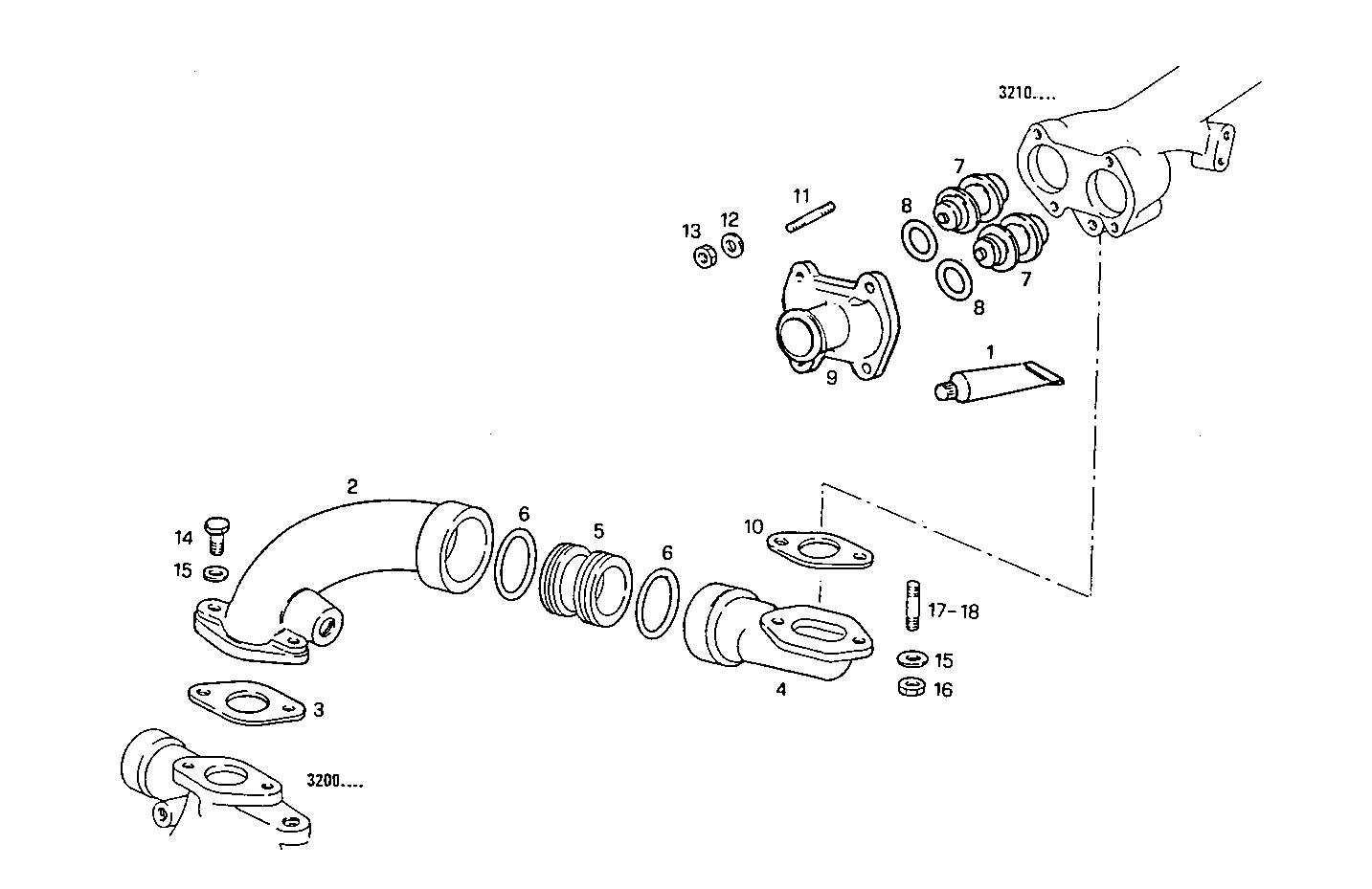

3220.054 THERMOSTAT
| Item |
Part number |
Description |
|
1 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
2 |
4799656 |
CONNECTOR SLEEVE |
|
3 |
61318819 |
FLAT ENGINE GASKET |
|
4 |
4799654 |
CONNECTOR SLEEVE |
|
5 |
4799655 |
CONNECTOR SLEEVE |
|
6 |
98461202 |
O-RING |
|
7 |
8110948 |
THERMOSTAT |
|
8 |
4863955 |
O-RING Ø60 MM |
|
9 |
98418513 |
THERM.BODY COVER |
|
10 |
4864029 |
FLAT ENGINE GASKET |
|
11 |
13546821 |
STUD M10X1,25X20X45 MM |
|
12 |
17095104 |
WASHER Ø10X21X2 MM |
|
13 |
17038221 |
HEXAGON NUT M10 |
|
14 |
16606024 |
SCREW M8X45 MM |
|
15 |
17094914 |
WASHER 8x16 |
|
16 |
17037931 |
HEXAGON NUT M8X1,25 |
|
17 |
12354521 |
STUD M8X16X22 |
|
18 |
13544121 |
STUD M8X16X55 MM |
