GS8210SRi26.02A602

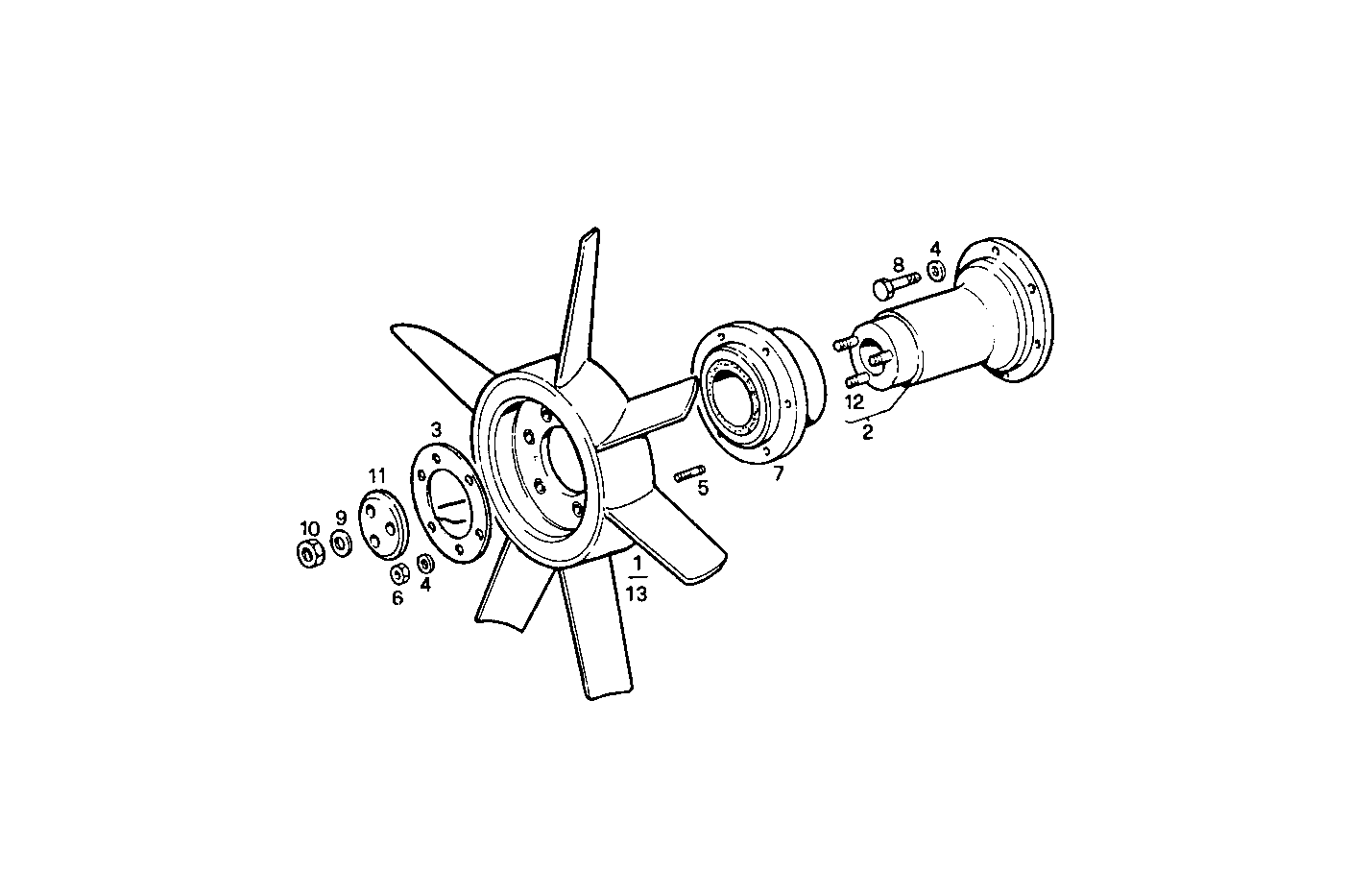

3230.010 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 8104135 | FAN Ø820 MM |
| 2 | 8108873 | HUB ASSY |
| 3 | 4933279 | RING |
| 4 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 5 | 16729224 | STUD M8X16 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 8031260 | FLEXIBLE COUPLING |
| 8 | 16043721 | HEXAGON BOLT M8X28 MM |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 8108876 | SPACING BAR |
| 12 | 13546421 | STUD M10X1,25X48 MM |
| 13 | 8021735 | FAN DIA 820 |
