GS8210SRi27.00A601

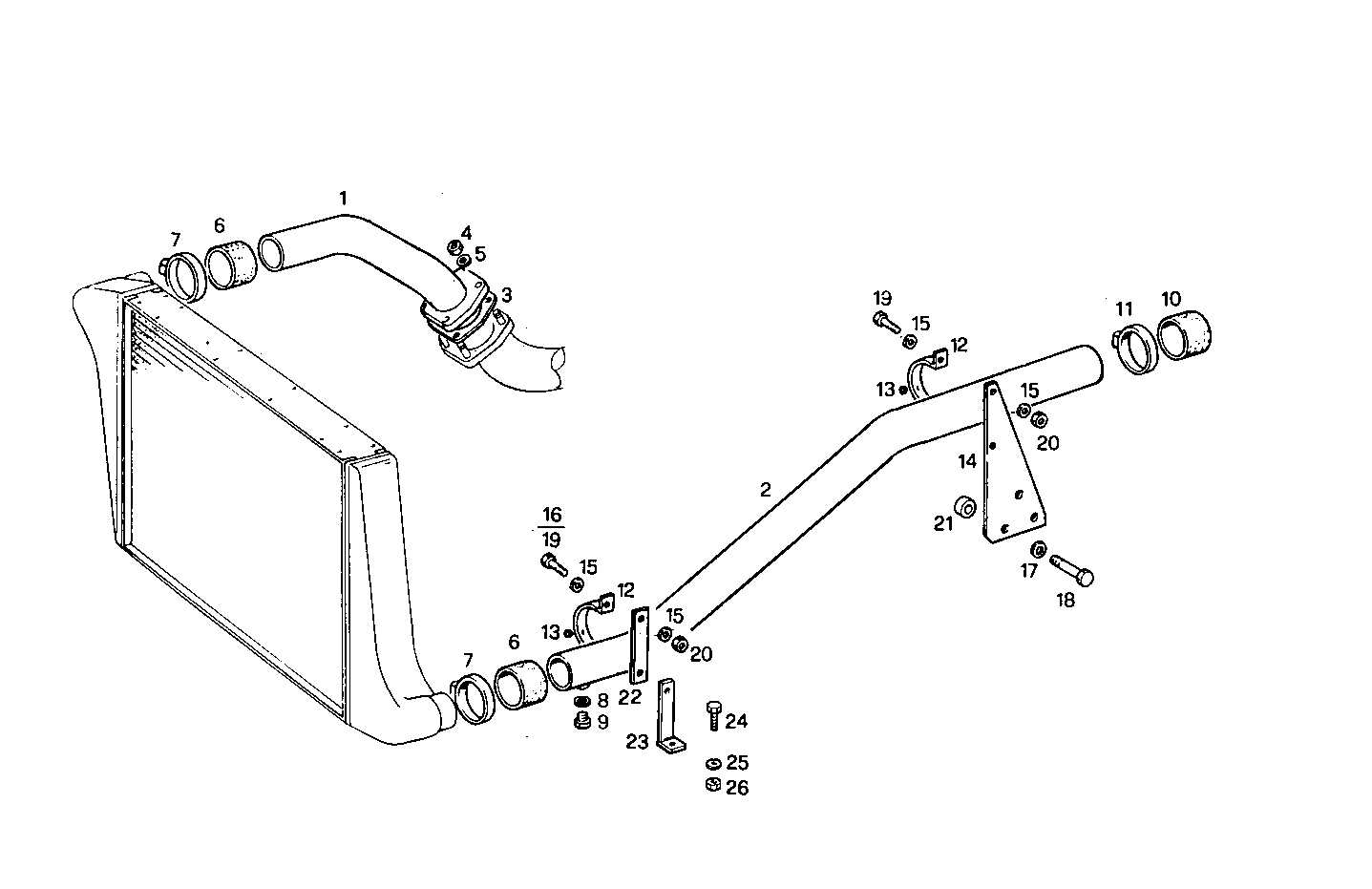

2420.040/02 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8010582 AIR PIPE/DUCT
2 8010583 AIR PIPE/DUCT
3 98415081 FLAT ENGINE GASKET
4 17037931 HEXAGON NUT M8X1,25
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 42088612 WATER HOSE
7 8005839 CLIP
8 4858607 WASHER Ø12X17 MM SP=1,5 MM
9 16992211 THREADED PLUG M12X1,5
10 4865230 TURBOCHARGER HOSE
11 4788410 CLIP Ø92/98 MM
12 8108759 CLIP
13 1366290 RUBBER LUG
14 8005097 RETAINER
15 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
16 16605734 HEXAGON BOLT M8X30 MM
17 17092374 SPRING WASHER Ø16X34X3,6 MM
18 11391521 HEXAGON BOLT M16X45 MM
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 4934451 SPACING BAR
22 8114420 RETAINER
23 8011585 RETAINER
24 16608824 HEXAGON BOLT M10X100 MM
25 17090174 SPRING WASHER Ø10X20 MM
26 17038121 HEXAGON NUT M10
