GS8210SRi27.00A601

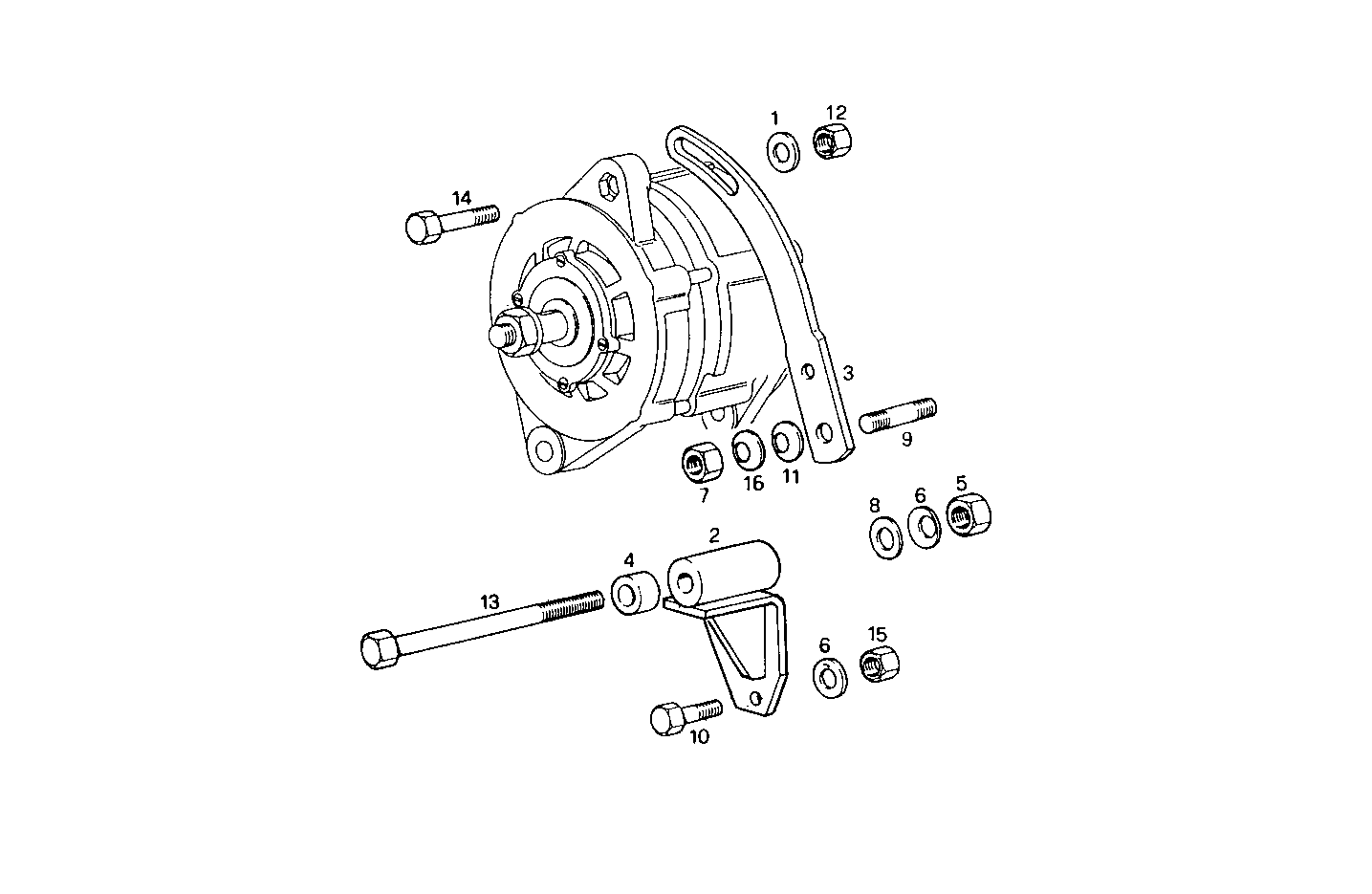

4010.030 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 17095104 | WASHER Ø10X21X2 MM |
| 2 | 8006911 | SUPPORT |
| 3 | 8007183 | BELT TENSIONER |
| 4 | 8114378 | SPACING BAR |
| 5 | 17157521 | NUT M12X1,25 |
| 6 | 17091074 | WASHER Ø12X24X2,8 MM |
| 7 | 16101511 | HEXAGON NUT M12X1,25 |
| 8 | 12646901 | WASHER Ø12X28 MM |
| 9 | 13453721 | STUD M10X25X30 |
| 10 | 16610724 | SCREW M12X1,75X70 MM |
| 11 | 12646921 | WASHER Ø12X28 MM |
| 12 | 17157221 | NUT M10X1,25 |
| 13 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
| 14 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 15 | 17038421 | HEXAGON NUT M12 (8) |
| 16 | 11198371 | SPRING WASHER Ø10X20 MM |
