GS8210SRi28.00

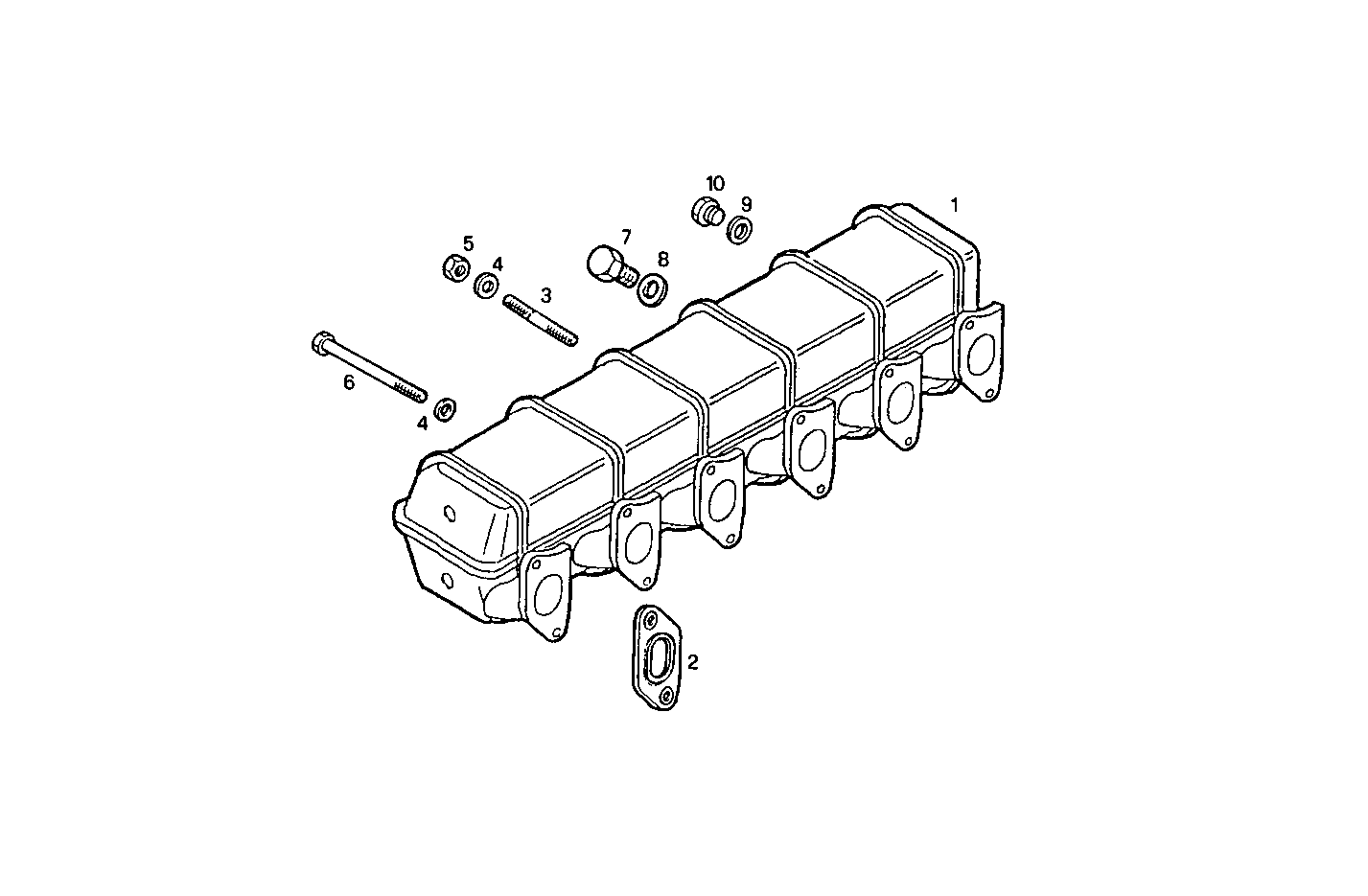

0710.069 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 8019199 INTAKE ELBOW
2 99440847 INTAKE ELBOW GASK.
3 13449921 STUD M10X15X40
4 17095114 WASHER Ø10X21 MM
5 17038221 HEXAGON NUT M10
6 15972821 HEXAGON BOLT M10X150 MM
7 4595833 THREADED PLUG M20X1,5
8 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
9 4858607 WASHER Ø12X17 MM SP=1,5 MM
10 16992211 THREADED PLUG M12X1,5
