GS8210SRi28.00

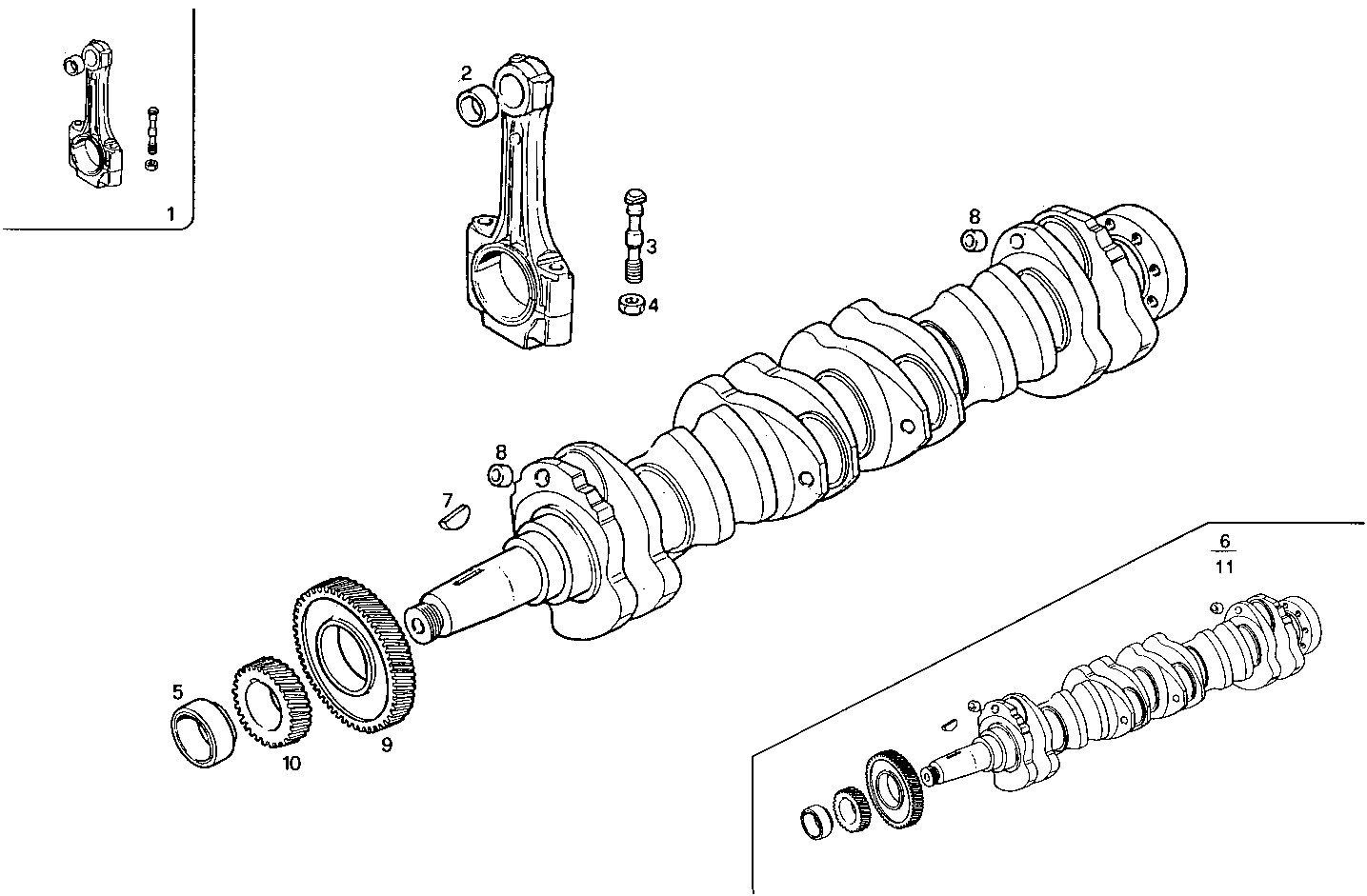

0800.045 CRANK SHAFT - CONNECTING RODS
| Item | Part number | Description |
|---|---|---|
| 1 | 98452330 | CONN.ROD ASSY. ASSY |
| 2 | 4787170 | BIG-END BUSH |
| 3 | 4633536 | BIG-END BOLT |
| 4 | 4693706 | BIG END NUT |
| 5 | 98420369 | RING |
| 6 | 98475015 | CRANK SHAFT ASSY [up to ...] |
| 7 | 4606319 | KEY |
| 8 | 14282070 | LOCK PLUG Ø10 MM |
| 9 | 98482198 | OIL PUMP DRIV.GEA |
| 10 | 98435492 | TIMING DRIVE GEAR |
| 11 | 98485360 | CRANK SHAFT ASSY [from ...] |
