GS8210SRi28.00

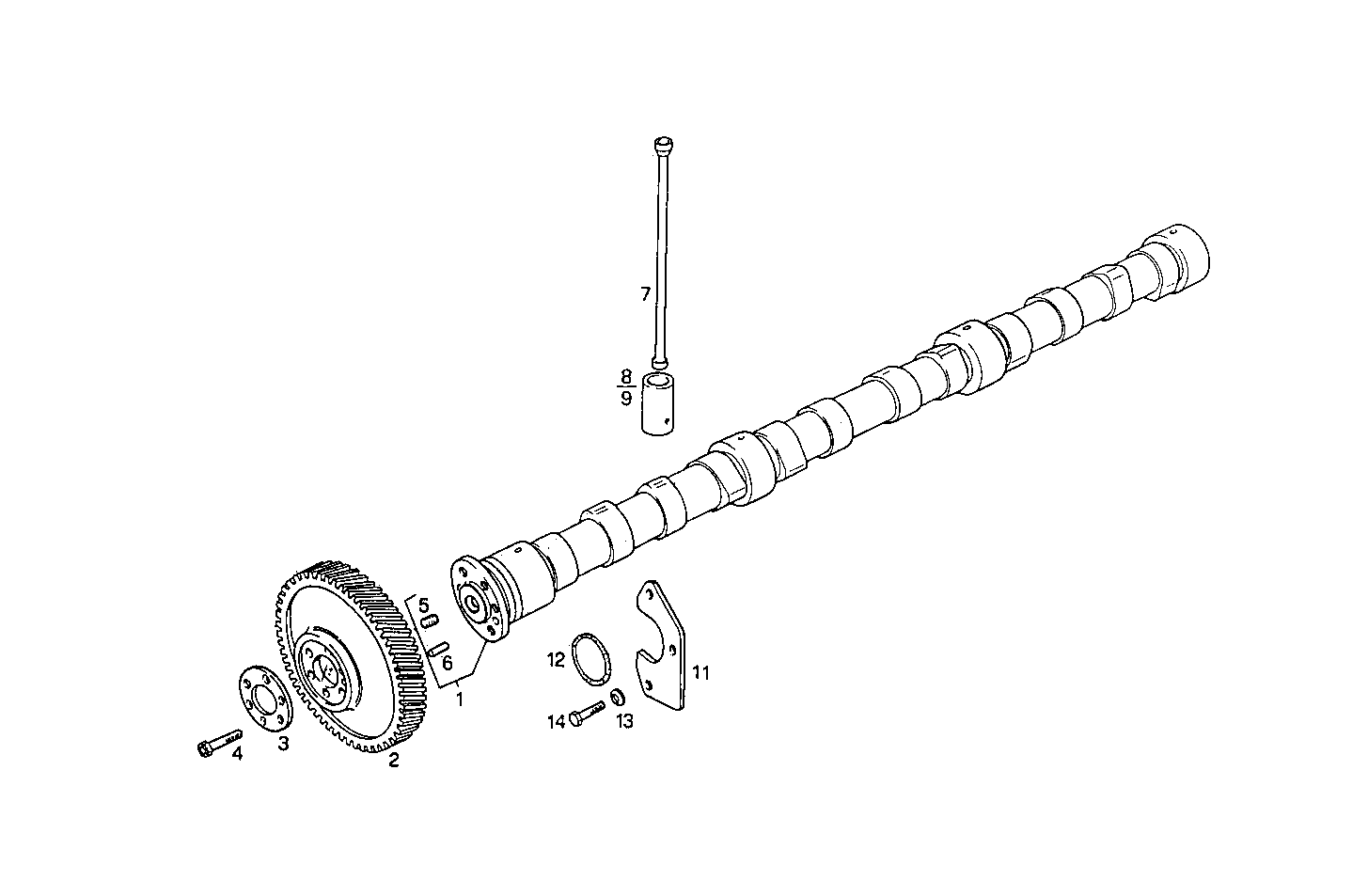

1250.055 TIMING PARTS

Iveco/FPT TIMING PARTS

Item Part number Description
1 99457896 CAMSHAFT ASSY
2 98418372 TIMING INTERM.GEA
3 4772396 SPACER
4 16323430 LOCKING SCREW M10X1,25
5 4623643 PLUG
6 4619885 DOWEL PIN
7 99432740 PUSHROD
8 99432644 VALVE TAPPET +0,0 MM
9 99433717 VALVE TAPPET +0,1 MM
10 99433718 TAPPET +0,2 MM
11 98434327 PLATE [from ...]
12 17282181 O-RING Ø21,8 MM SP=2,6 MM
13 17090274 WASHER Ø10X20 MM
14 14307630 SOCKET-HEAD SCREW M10X1,25X35 MM
