GS8210SRi28.00

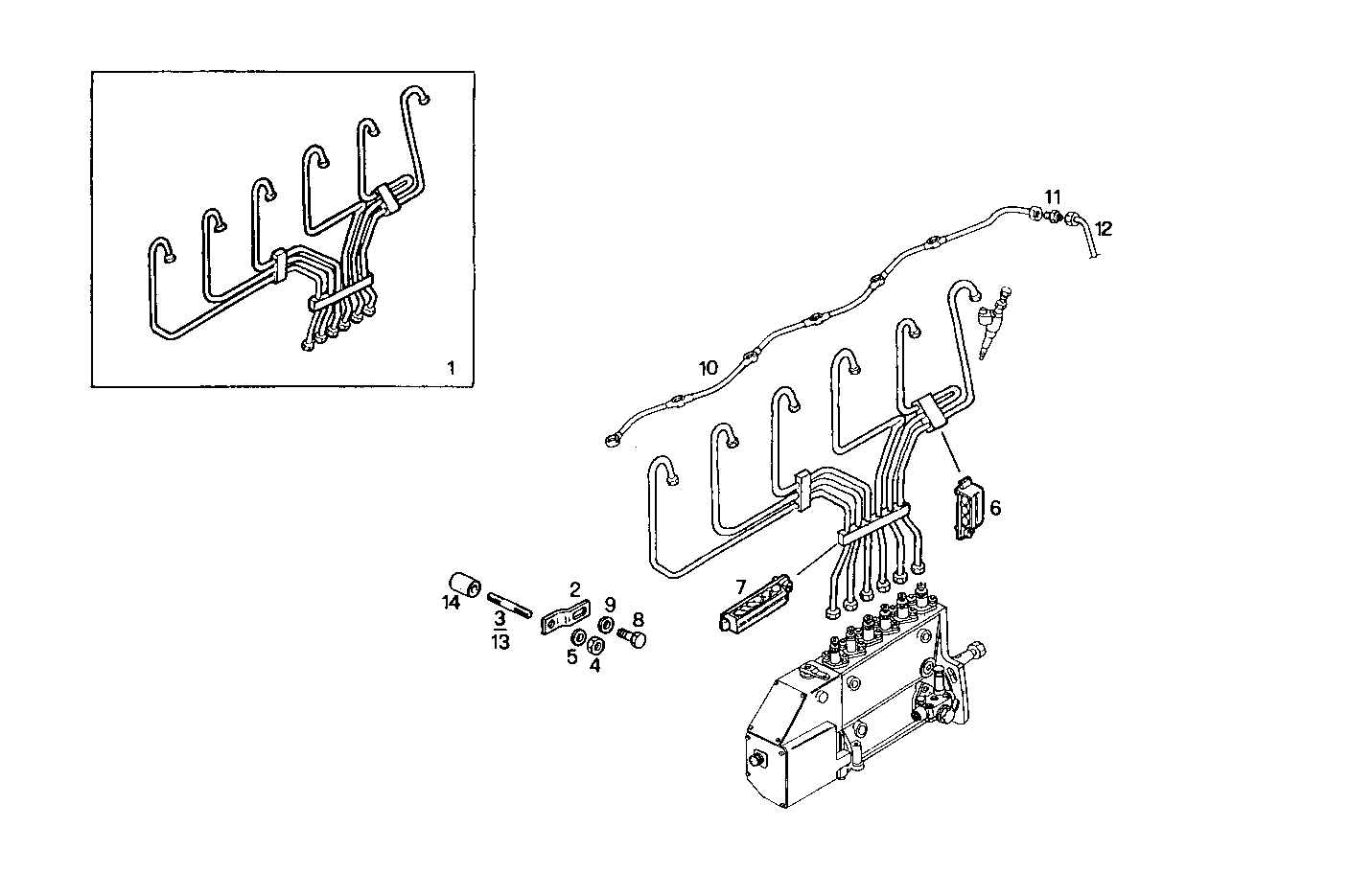

2020.062 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 98425916 | INJECTION LINE SET ASSY GUIDO |
| 2 | 8019203 | RETAINER |
| 3 | 16729324 | STUD M8X12X20 MM |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 99434292 | FASTENING BRACKET BUNDY |
| 7 | 99434293 | FASTENING BRACKET BUNDY |
| 8 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 9 | 17094714 | WASHER Ø6,4X12 MM |
| 10 | 98435435 | FUEL LINE |
| 11 | 16501511 | SCREW CONNECTOR M12X1,5 |
| 12 | 8019769 | FUEL LINE |
| 13 | 16729524 | STUD M8X1,25X30 |
| 14 | 17816111 | SPACING BAR Ø8,5X18 MM SP=8 MM |
