GS8210SRi28.00

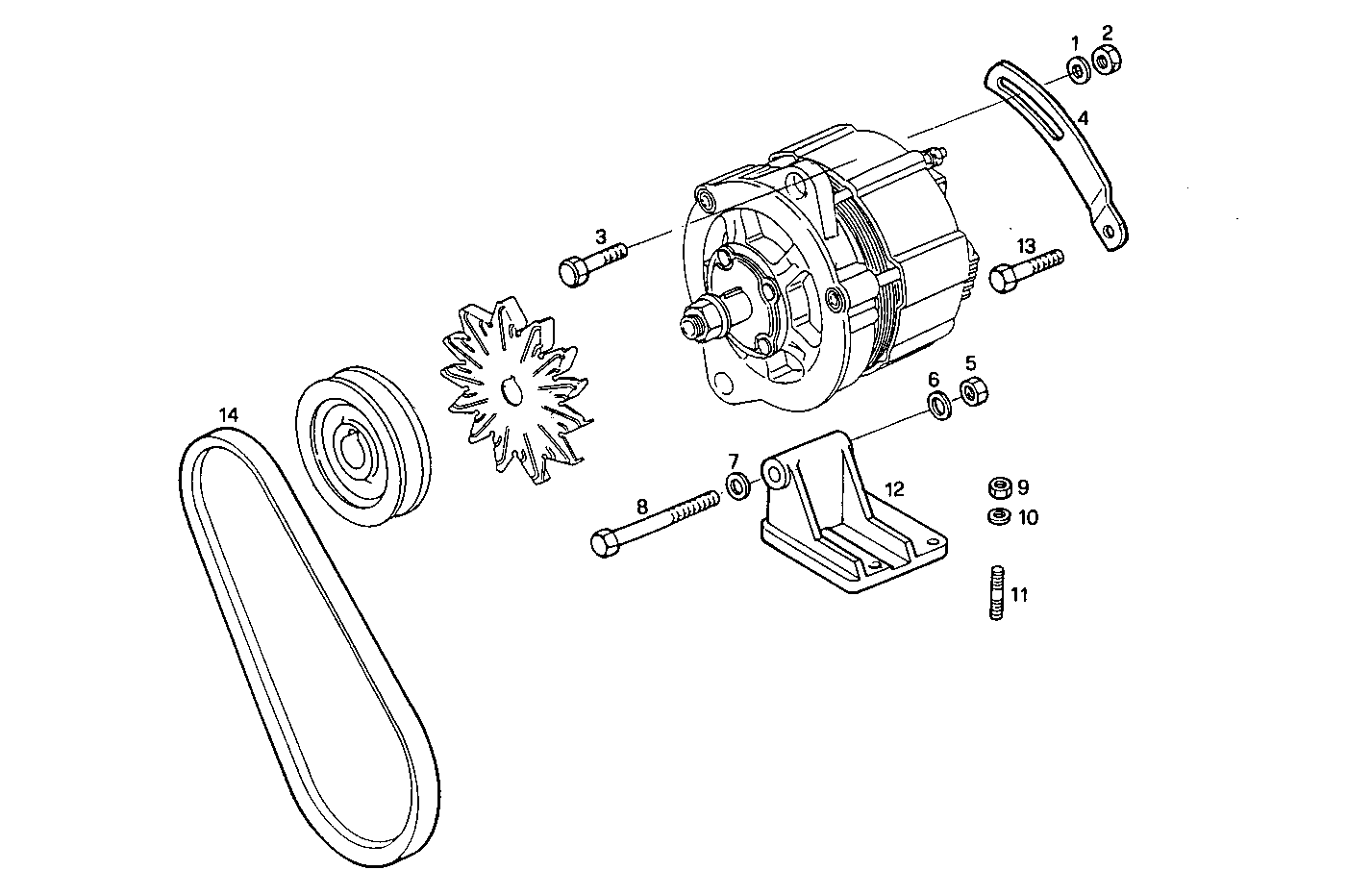

4010.048 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 4513436 SUPPORT RING Ø10X21X2 MM
2 17157221 NUT M10X1,25
3 11307021 HEXAGON BOLT M10X40 MM
4 98432033 BELT TENSIONER
5 17157521 NUT M12X1,25
6 17091074 WASHER Ø12X24X2,8 MM
7 12646921 WASHER Ø12X28 MM
8 15541921 HEXAGON BOLT M12X1,25X130 MM
9 17038221 HEXAGON NUT M10
10 17090474 SPRING WASHER Ø10X27 MM SP=2,5
11 13449521 STUD M10X15X25
12 4862414 SUPPORT
13 11343721 HEXAGON BOLT M10X65 MM
14 98459454 ALTERNATOR BELT
