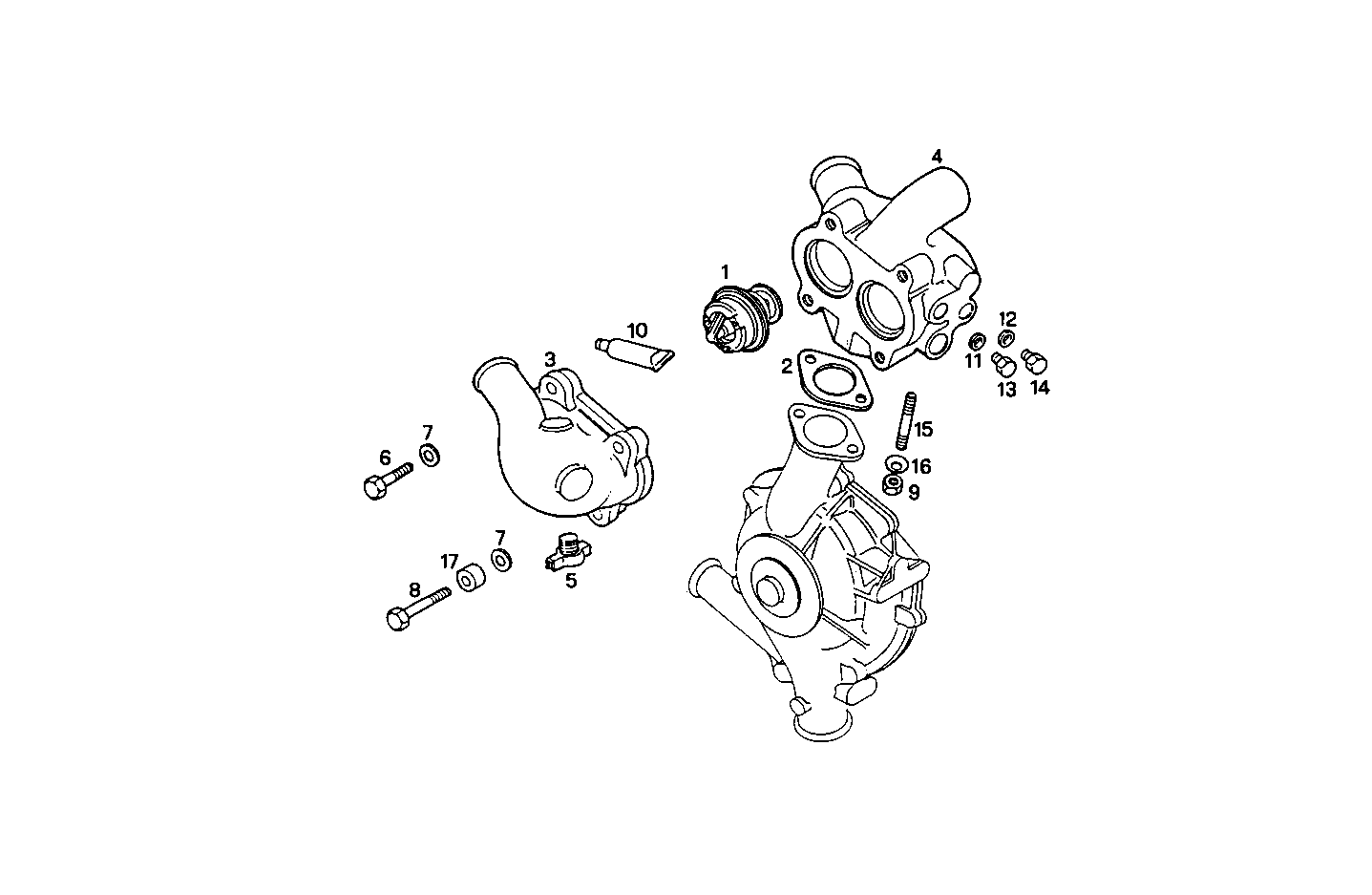

| Item |
Part number |
Description |
|
1 |
4807492 |
THERMOSTAT ASSY 79° |
|
2 |
4863503 |
FLAT ENGINE GASKET CURTY |
|
3 |
4751149 |
WATER PIPE |
|
4 |
4818606 |
THERMOSTAT BODY |
|
5 |
17914790 |
DRAIN COCK |
|
6 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
7 |
12642521 |
WASHER |
|
8 |
11288021 |
HEXAGON BOLT M10X1,25X60 MM |
|
9 |
17037931 |
HEXAGON NUT M8X1,25 |
|
10 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
11 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
12 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
13 |
16992340 |
THREADED PLUG M14X1,5 |
|
14 |
16992440 |
THREADED PLUG M16X1,5 |
|
15 |
13516821 |
STUD M8X12X20 MM |
|
16 |
11198071 |
SPRING WASHER Ø8X15 SP=1,4 MM |
|
17 |
8105637 |
SPACING BAR |
