GS8281SRi26.01A061

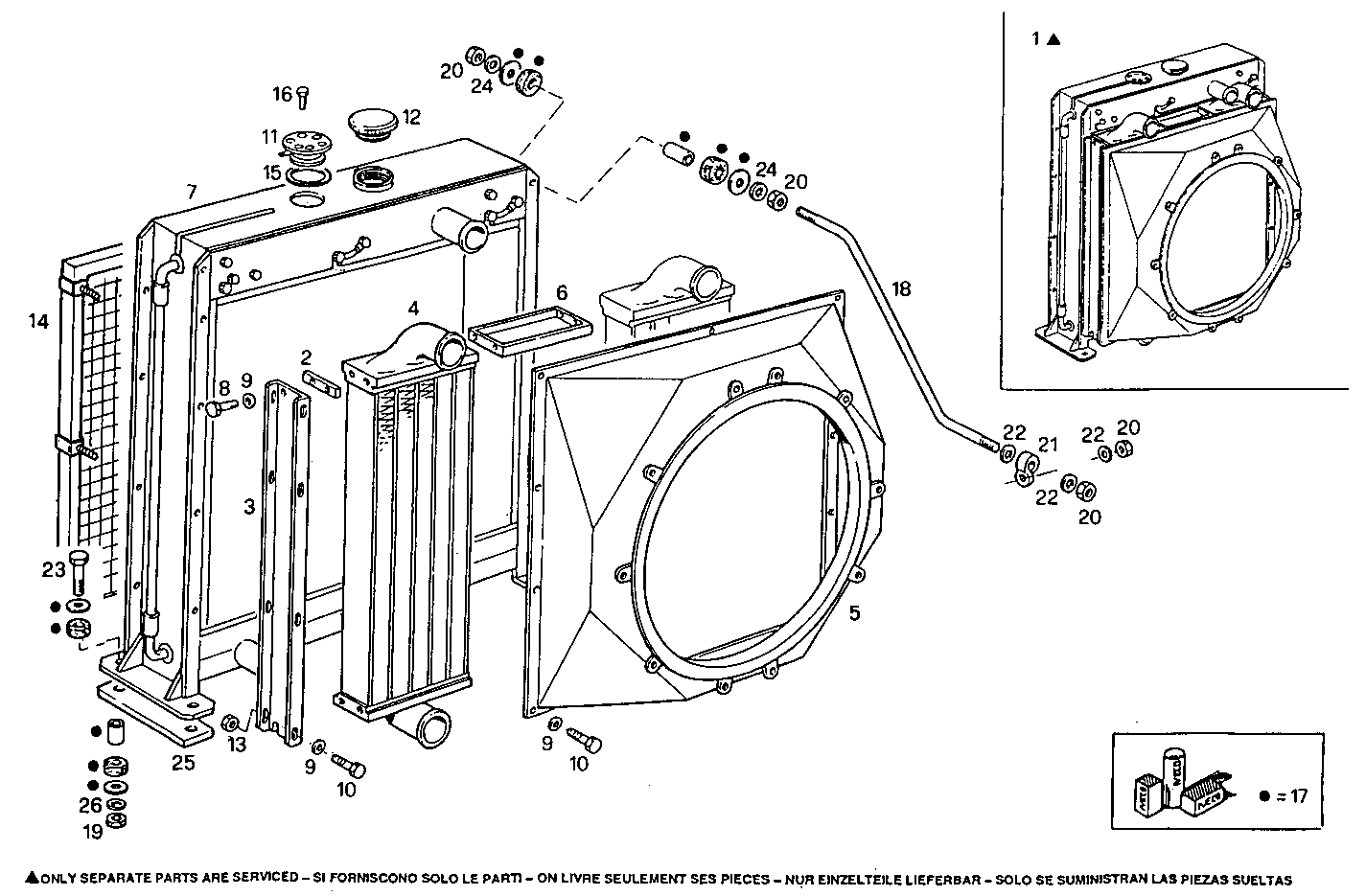

3300.009 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8009972 WATER RADIATOR ASSY
2 8008484 SPACING BAR
3 8107994 RETAINER
4 8107992 INTERCOOLER
5 8008462 AIR HOOD
6 8008463 SPACING BAR
7 8008461 WATER RADIATOR ASSY
8 16605624 HEXAGON BOLT M8X25 MM (8.8)
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 16605524 HEXAGON BOLT M8X20 MM
11 8012140 VALVE
12 8018813 RADIATOR PLUG Tesio
12 8017558 RADIATOR PLUG
13 17037931 HEXAGON NUT M8X1,25
14 8111444 PROTECTION
15 8012141 GASKET
16 17930004 SCREW
17 8090977 KIT-RADIATOR A.S. COMPLETE
18 8008506 TIE ROD
19 17038921 NUT M16X2
20 17038621 NUT M12
21 8108056 PIN
22 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
23 16614624 HEXAGON BOLT M16X40 MM
24 17091371 SPRING WASHER Ø12X30 MM
25 8010041 SPACING BAR SP=7 MM
26 17092374 SPRING WASHER Ø16X34X3,6 MM
