GS8281SRi26.01A601

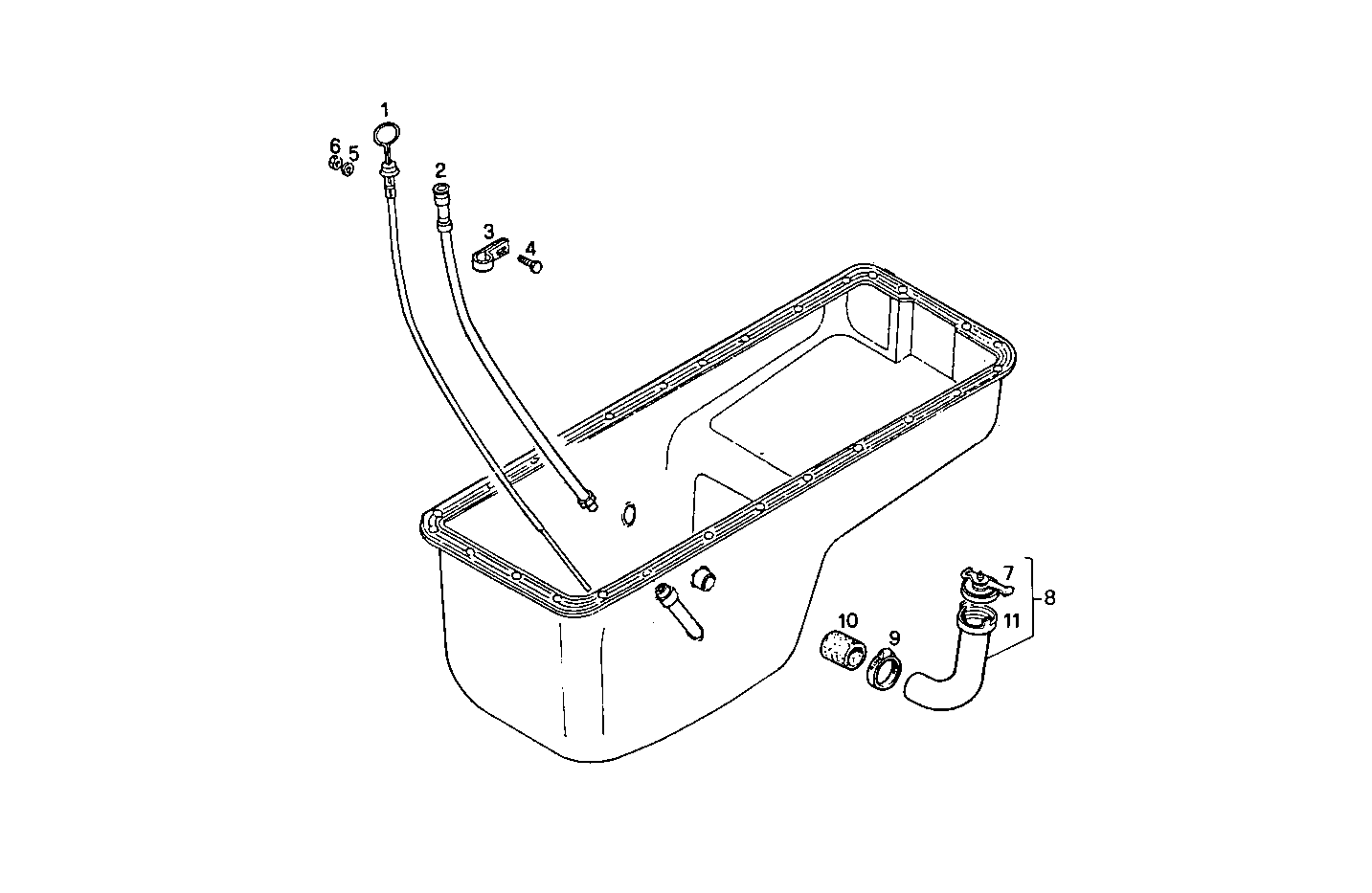

2710.031 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 4696147 | OIL DIPSTICK |
2 | 8007179 | ROD GUIDE |
3 | 8100228 | CLIP |
4 | 16605524 | HEXAGON BOLT M8X20 MM |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 61688466 | PLUG |
8 | 8018576 | FILLER NECK ASSY |
9 | 17764791 | CLIP Ø32/50 MM |
10 | 4935775 | RUBBER SLEEVE |
11 | 8018577 | OIL FILLER PIPE |
