GS8281SRi26.01A601

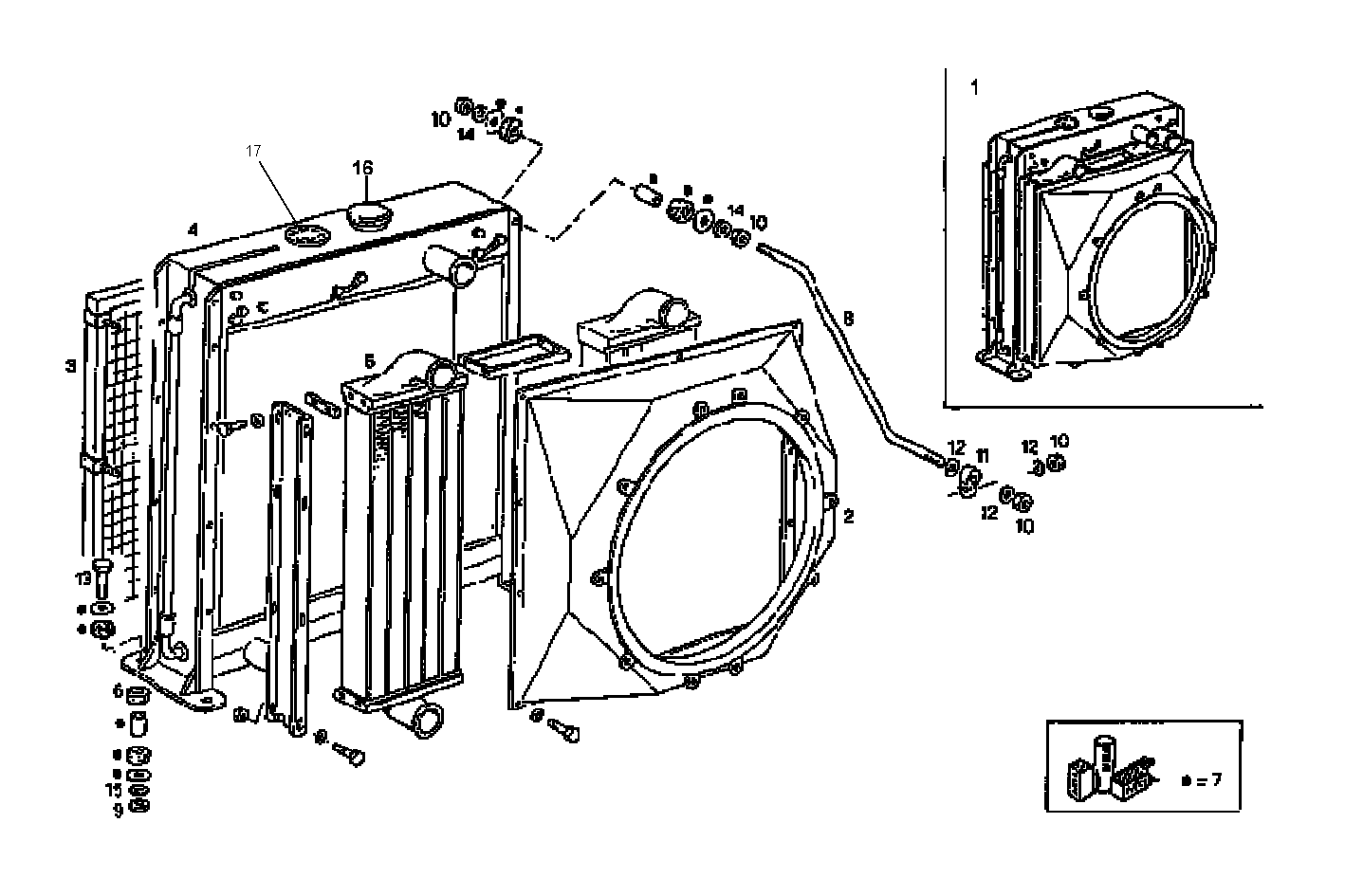

3300.017 RADIATOR [D 12-1994] [from12-1994]
Item | Part number | Description |
---|---|---|
1 | 8021806 | WATER RADIATOR ASSY |
2 | 8021809 | AIR HOOD |
3 | 8021810 | PROTECTION |
4 | 8021807 | WATER RADIATOR |
5 | 8021808 | INTERCOOLER |
6 | 8019415 | SPACING BAR |
7 | 8090977 | KIT-RADIATOR A.S. COMPLETE |
8 | 8008506 | TIE ROD |
9 | 17038921 | NUT M16X2 |
10 | 17038621 | NUT M12 |
11 | 8108056 | PIN |
12 | 17091071 | SPRING WASHER Ø12X24 SP=2,8 MM |
13 | 16614624 | HEXAGON BOLT M16X40 MM |
14 | 17091371 | SPRING WASHER Ø12X30 MM |
15 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
16 | 8018813 | RADIATOR PLUG Tesio |
17 | 8032345 | RADIATOR PLUG |
