GS8281SRi26.01A651

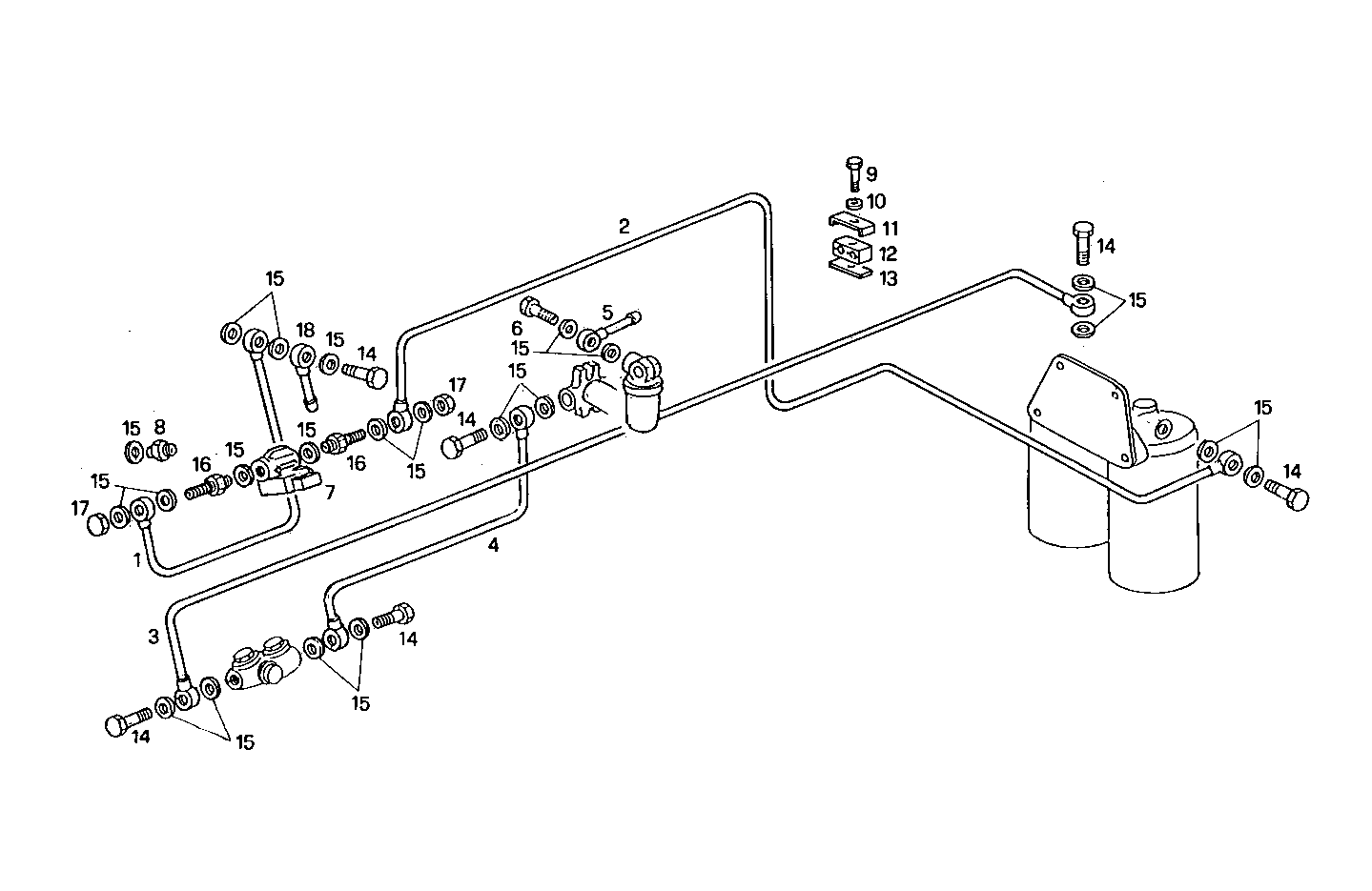

2030.040 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8012556 | FUEL LINE |
| 2 | 8008513 | FUEL LINE |
| 3 | 8008512 | INJECTION LINE |
| 4 | 8012480 | FUEL LINE |
| 5 | 98404882 | PIPE SOCKET Ø8 MM |
| 6 | 61320123 | SCREW CONNECTOR |
| 7 | 8108944 | ELECTROVALVE |
| 8 | 4929626 | PIPE SOCKET |
| 9 | 16603824 | SCREW M6X25 |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 4644288 | CLIP |
| 12 | 4871771 | RUBBER LUG |
| 13 | 4644289 | CLIP |
| 14 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 15 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 16 | 4929627 | PIPE SOCKET |
| 17 | 10182817 | LOCK PLUG |
| 18 | 98413896 | PIPE SOCKET Ø8 MM |
