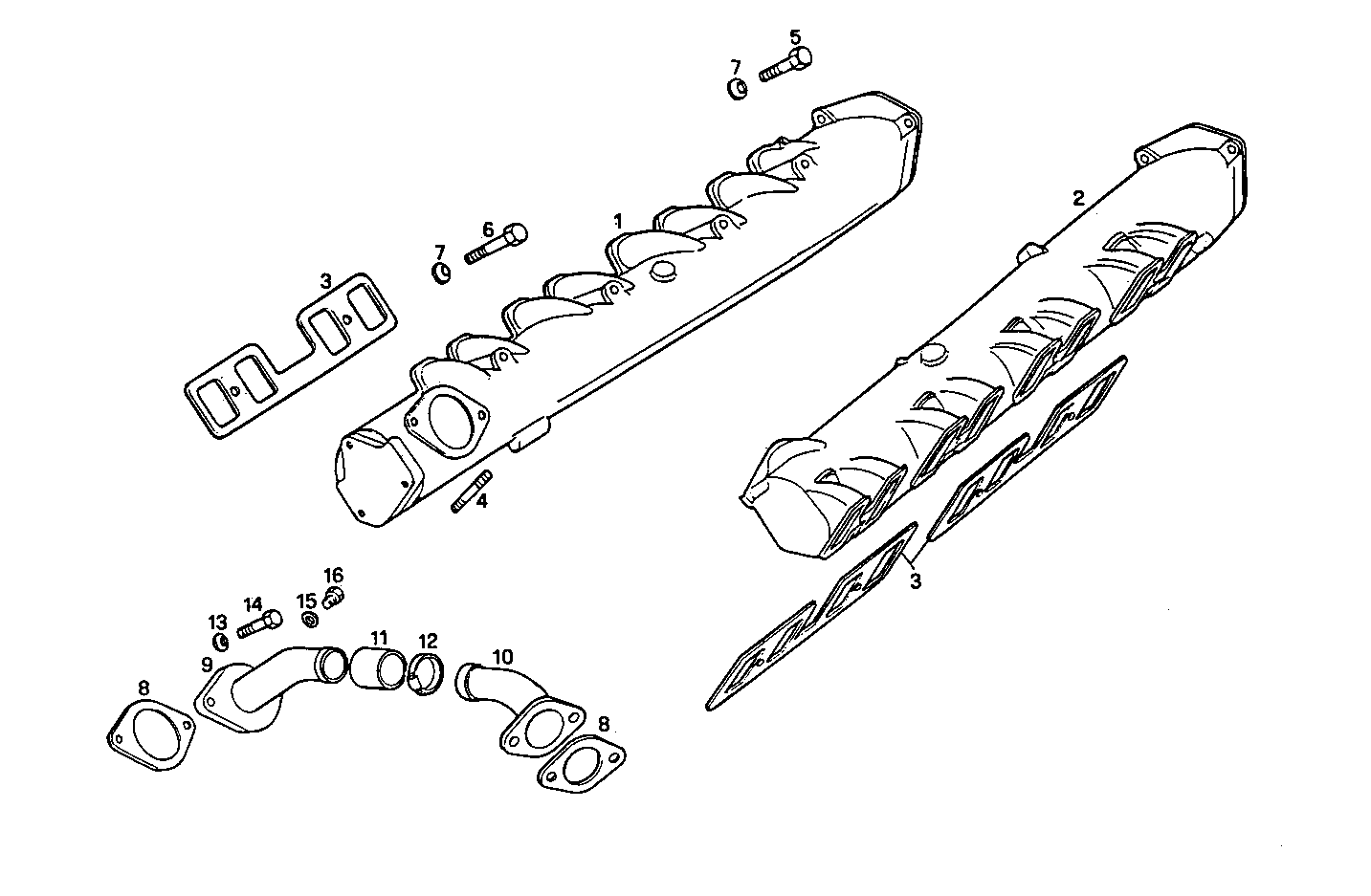

0710.034 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 4731274 INTAKE ELBOW RIGHT
2 4761438 INTAKE ELBOW LEFT
3 4789747 INTAKE ELBOW GASK.
4 16729424 STUD M8X1,25X25
5 15971821 SCREW M10X1,25X100
6 15972221 SCREW M10X1,25X120
7 4789748 WASHER
8 4863536 FLAT ENGINE GASKET
9 98443150 INTAKE ELBOW
10 98443151 INTAKE ELBOW
11 99443999 WATER HOSE
12 17765192 HOSE CLIP Ø70-90 MM
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 4858607 WASHER Ø12X17 MM SP=1,5 MM
16 16992240 THREADED PLUG M12X1,5
