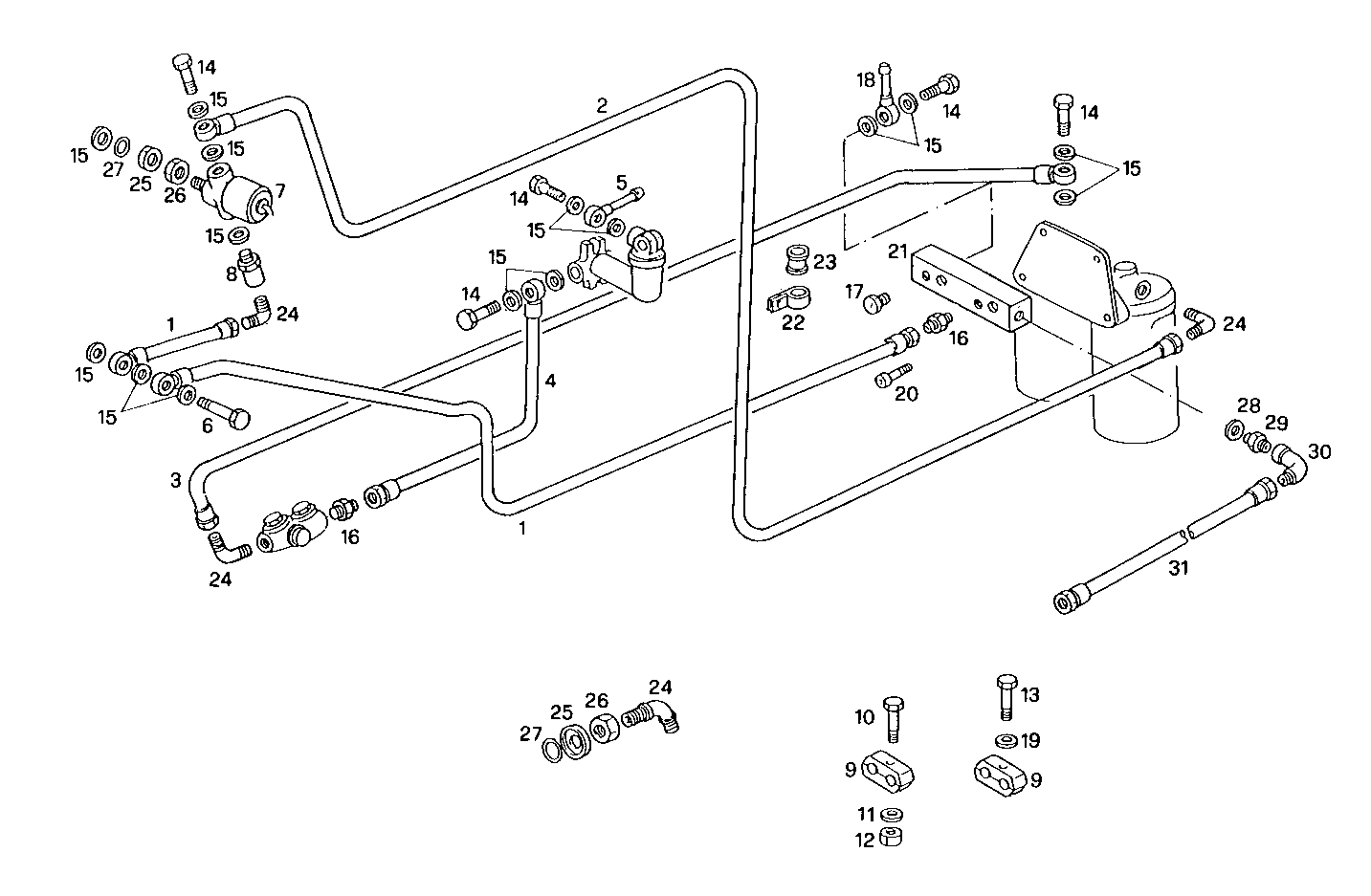

2030.107 FUEL LINES [D 11-1994] [from11-1994]

Iveco/FPT FUEL LINES

Item Part number Description
1 8019054 HOSE L=300 MM
2 8019053 FLEXIBLE FUEL PIPE L=900 MM
3 8019052 FLEXIBLE FUEL PIPE L=1000 MM
4 8019051 HOSE L=400 MM
5 98404882 PIPE SOCKET Ø8 MM
6 61608319 SCREW CONNECTOR
7 8017500 ELECTROVALVE [from 04-94]
8 8102465 VALVE
9 8010505 CLAMP Ø16 MM
10 16605824 HEXAGON BOLT M8X35 MM
11 17094914 WASHER 8x16
12 17037931 HEXAGON NUT M8X1,25
13 16604024 HEXAGON BOLT M6X35 MM
14 4864083 SCREW CONNECTOR M14X1,5X30 MM
15 4858608 SEAL GASKET dia.14x19,5x1,5
16 16500214 THREADED UNION M14X1,5/M16X1,5
17 16992311 LOCK PLUG M14X1,5
18 98413896 PIPE SOCKET Ø8 MM
19 17088974 SPRING WASHER Ø6X18X1,4 MM
20 16691224 CYLIND-HEAD SCREW M8X55 MM
21 8019035 DISTRIBUTOR
22 8019420 CLIP
23 4757122 RUBBER PAD
24 8006222 PIPE SOCKET [from 05-92]
25 8006339 CAP
26 16508711 NUT M14X1,5 [from 05-92]
27 17281581 O-RING Ø12,37X2,62 MM
28 4858606 GASKET Ø10X14X1 MM
29 16500011 PIPE SOCKET
30 16503811 ELBOW COUPLING
31 8019699 FUEL LINE L=400 MM
