GS8281SRi26.02

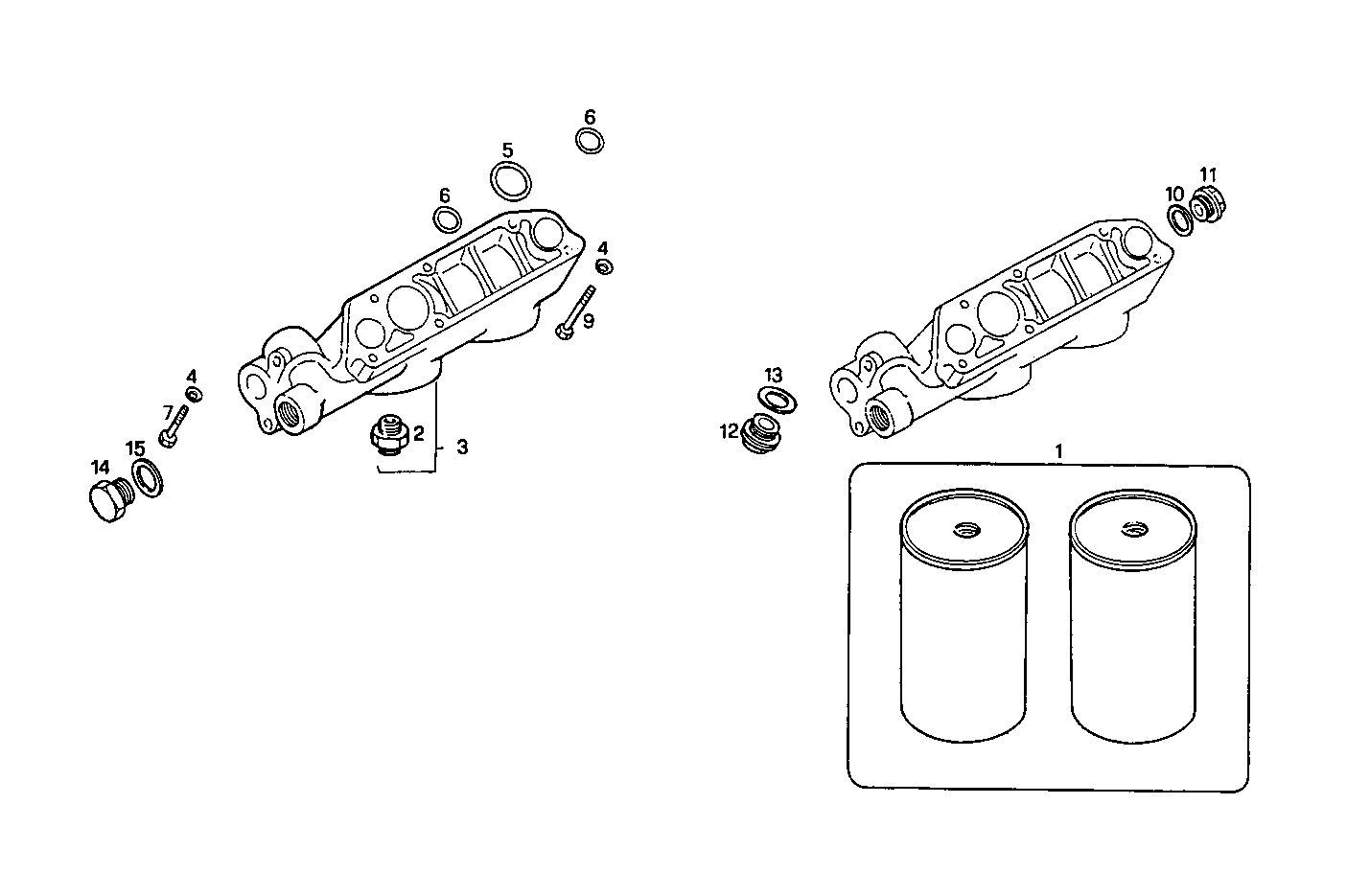

3020.023 OIL FILTERS
Item | Part number | Description |
---|---|---|
1 | 1907571 | OIL FILTER CARTRIDGE |
2 | 4741301 | THREADED UNION ASSY |
3 | 4824761 | OIL FILTER ASSY |
4 | 17089875 | WASHER |
5 | 14460081 | O-RING SP=2,62 MM |
6 | 14458281 | O-RING Ø2,62X31,42 MM |
7 | 16606324 | HEXAGON BOLT M8X60 MM |
9 | 16606824 | HEXAGON BOLT M8X100 MM |
10 | 10296260 | SEAL GASKET Ø28X36 MM SP=1,5 MM |
11 | 4627301 | PLUG M28X1,5/M14X1,5 |
12 | 16992340 | THREADED PLUG M14X1,5 |
13 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
14 | 16992240 | THREADED PLUG M12X1,5 |
15 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
