GS8281SRi27.00

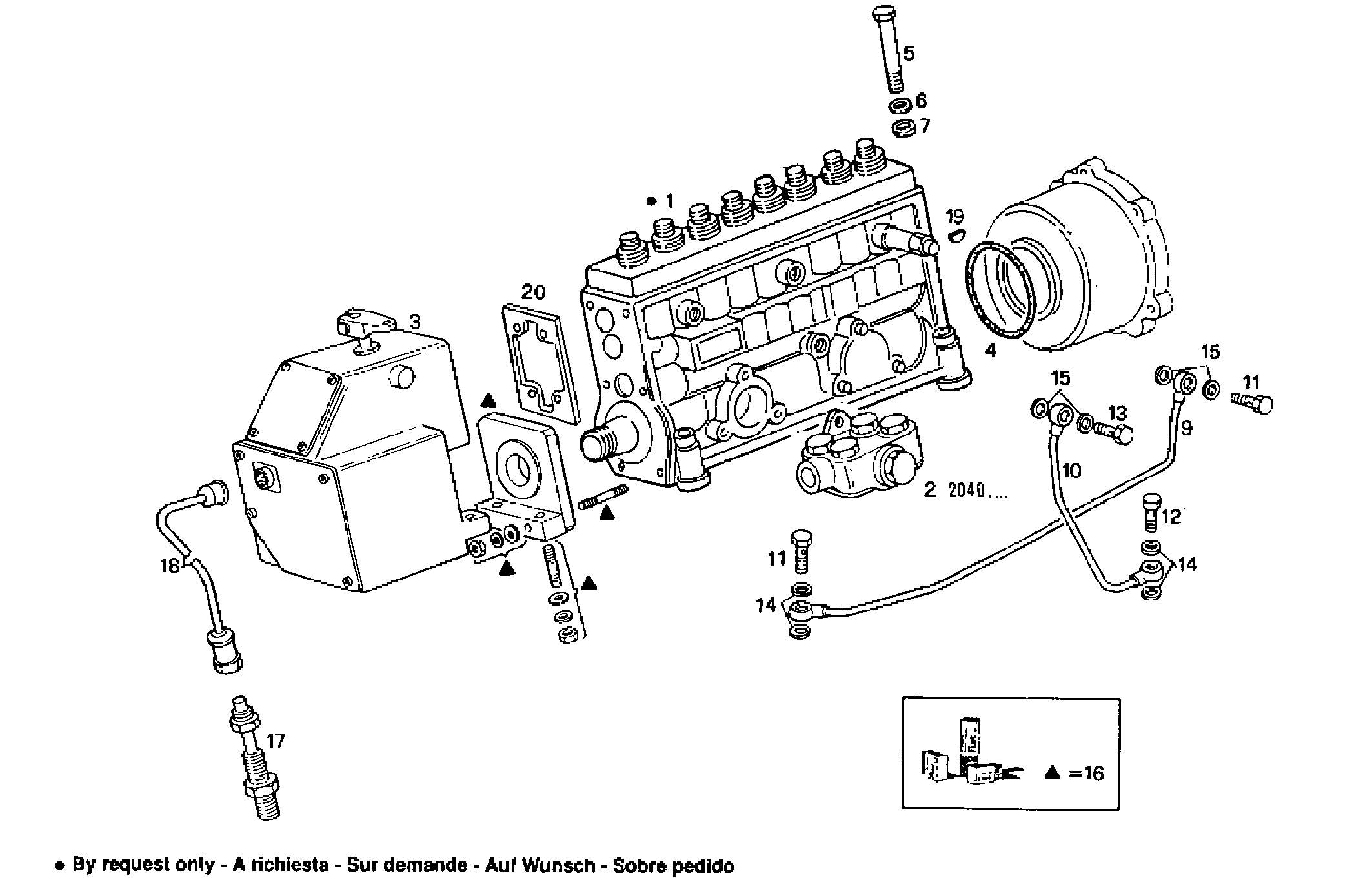

1400.120 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8018482 INLINE INJECT.PUMP
2 93160510 FUEL PUMP OPT.
3 8029133 ENGINE ACTUATOR
4 61317062 O-RING
5 15971330 HEXAGON BOLT M10X75 MM
6 17090274 WASHER Ø10X20 MM
7 756671 WASHER
9 98420456 OIL LINE
10 98420453 OIL LINE
11 4864083 SCREW CONNECTOR M14X1,5X30 MM
12 4864080 SCREW CONNECTOR M10X1,25
13 4864079 SCREW CONNECTOR M10X1
14 98474305 WASHER Ø10X17 MM SP=2,3
15 98474308 SEAL GASKET Ø14X22 MM
16 8018343 SPEED-GOVERNOR-KIT
17 8018673 PICK-UP
18 8018575 ENGINE HARNESS
19 10205720 KEY 3X5 MM
20 8093808 GASKET
