GS8281SRi27.00

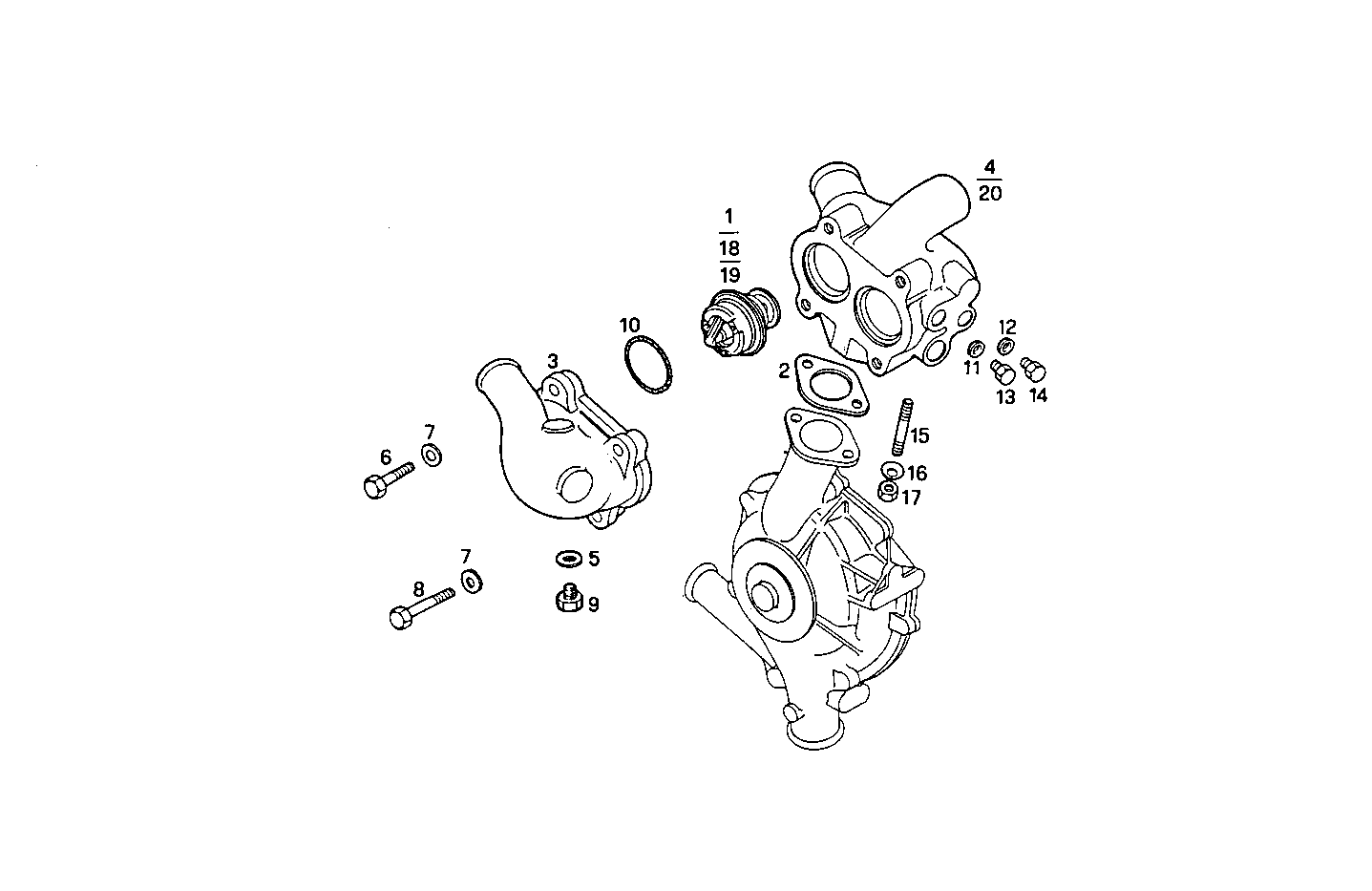

3220.041 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 99438848 THERMOSTAT 79° GILARDINI [from 227935]
2 4863503 FLAT ENGINE GASKET CURTY
3 98420627 COVER
4 99445826 THERMOSTAT BODY [from 227935]
5 4858610 WASHER Ø18X24 MM SP=1,5 MM
6 15971621 HEXAGON BOLT M10X1,25X90 MM
7 17097121 WASHER Ø10X21 MM
8 15970921 HEXAGON BOLT M10X1,25X35 MM
9 16992511 THREADED PLUG M18X1,5
10 98465113 O-RING Ø60 MM
11 4858608 SEAL GASKET dia.14x19,5x1,5
12 4858609 WASHER Ø16X22 MM SP=1,5 MM
13 16992311 LOCK PLUG M14X1,5
14 16992411 THREADED PLUG M16X1,5
15 16729321 STUD M8X1,25X20
16 17089574 WASHER Ø8X16 MM
17 17037931 HEXAGON NUT M8X1,25
18 98467517 THERMOSTAT 79° GILARDINI [up to 227934]
19 98492873 THERMOSTAT 74° GILARDINI [up to 227934]
20 99441803 THERMOSTAT BODY [up to 227934]
