GS8361SRi25.06

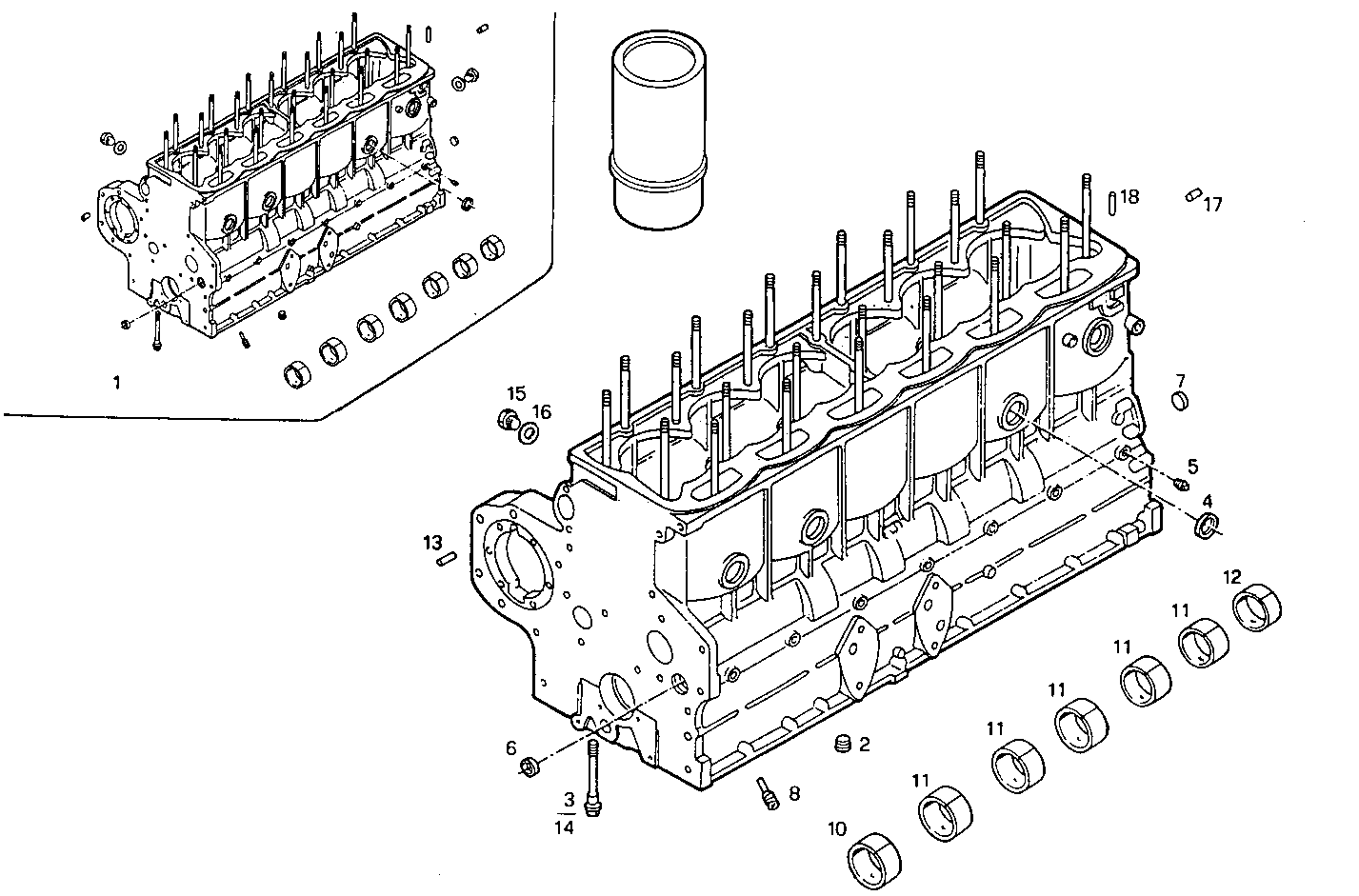

0400.109 CRANKCASE
Item | Part number | Description |
---|---|---|
1 | 4846322 | CRANKCASE ASSY |
2 | 4731414 | THREADED PLUG |
3 | 8829588 | SCREW |
4 | 16991170 | LOCK PLUG Ø36 MM |
5 | 14323911 | LOCK PLUG M10X1,25 |
6 | 14328801 | LOCK PLUG Ø22 MM |
7 | 14329301 | PLUG M42X13 |
8 | 4726808 | OIL NOZZLE |
10 | 8826317 | CAMSHAFT BEARING |
11 | 8826318 | CAMSHAFT BEARING |
12 | 8826319 | CAMSHAFT BEARING |
13 | 4708557 | DOWEL PIN |
14 | 4851814 | SCREW [from ...] |
15 | 10300611 | LOCK PLUG M14X1,5 |
16 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
17 | 10839810 | DOWEL PIN Ø12 MM |
18 | 14167570 | DOWEL PIN Ø6,4 MM |
