GS8361SRi25.06A060

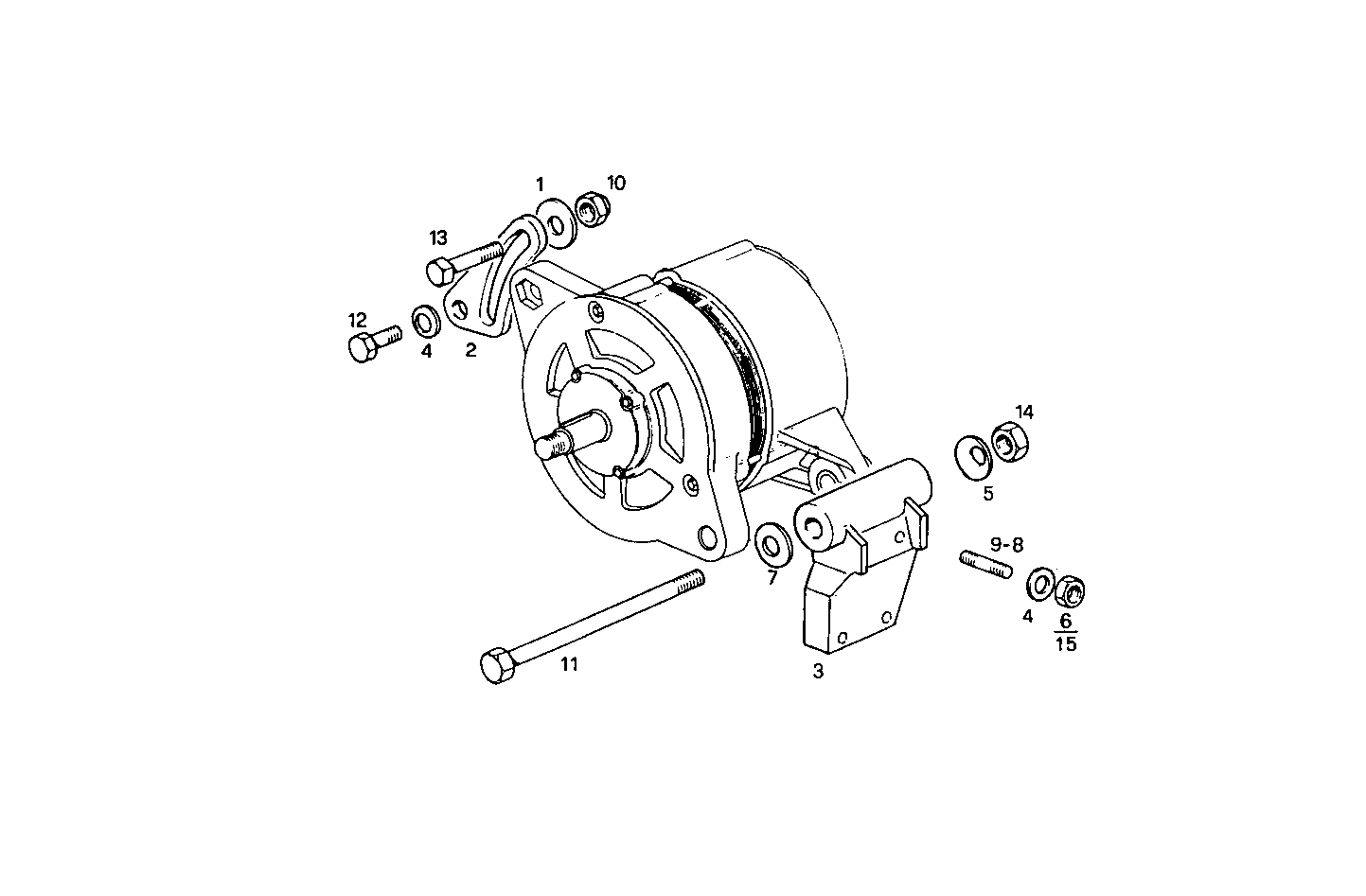

4010.056 MOUNT
Item | Part number | Description |
---|---|---|
1 | 4513436 | SUPPORT RING Ø10X21X2 MM |
2 | 4712521 | BELT TENSIONER |
3 | 4733103 | SUPPORT |
4 | 17090174 | SPRING WASHER Ø10X20 MM |
5 | 17091074 | WASHER Ø12X24X2,8 MM |
6 | 17038221 | HEXAGON NUT M10 |
7 | 17095504 | WASHER Ø14X28 MM |
8 | 13546921 | STUD M8X12X22 MM |
9 | 13547721 | STUD M10X20X90 |
10 | 14048721 | HEXAGON NUT M10X1,25 |
11 | 16611324 | HEXAGON BOLT M12X130 MM |
12 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
13 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
14 | 17038421 | HEXAGON NUT M12 (8) |
15 | 4934617 | NUT |
