GS8361SRi25.06A601

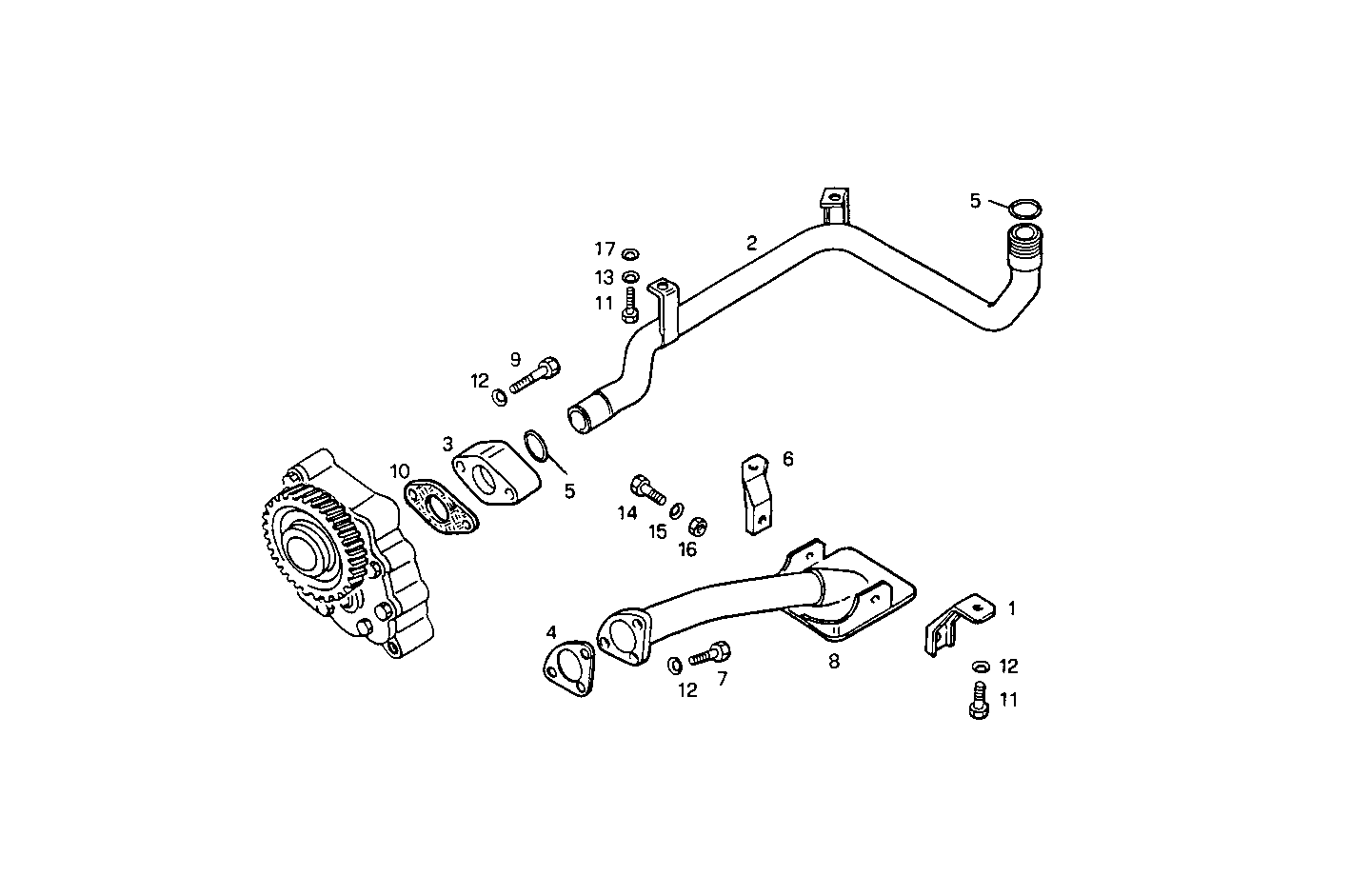

3010.025/02 LUBE OIL LINES
Item | Part number | Description |
---|---|---|
1 | 4735490 | RETAINER |
2 | 4692707 | OIL LINE |
3 | 4692711 | BULKHEAD STR.COUPL |
4 | 500300290 | FLAT ENGINE GASKET |
5 | 17282081 | O-RING Ø20,2 MM SP=2,62 MM |
6 | 4735489 | RETAINER |
7 | 16043621 | HEXAGON BOLT M8X25 MM |
8 | 4735487 | SUCTION STRAINER |
9 | 16044021 | HEXAGON BOLT M8X1,25X40 MM |
10 | 98412165 | FLAT ENGINE GASKET |
11 | 16043321 | HEXAGON BOLT M8X18 MM |
12 | 11193871 | WASHER Ø8X16X1,4 MM |
13 | 11194070 | WASHER Ø8X16X1,9 MM |
14 | 16043421 | HEXAGON BOLT M8X20 MM |
15 | 10519601 | WASHER Ø8X17 MM |
16 | 14048217 | HEXAGON NUT M8 |
17 | 12646724 | WASHER Ø8X21X1,5 MM |
