GS8361SRi26.05

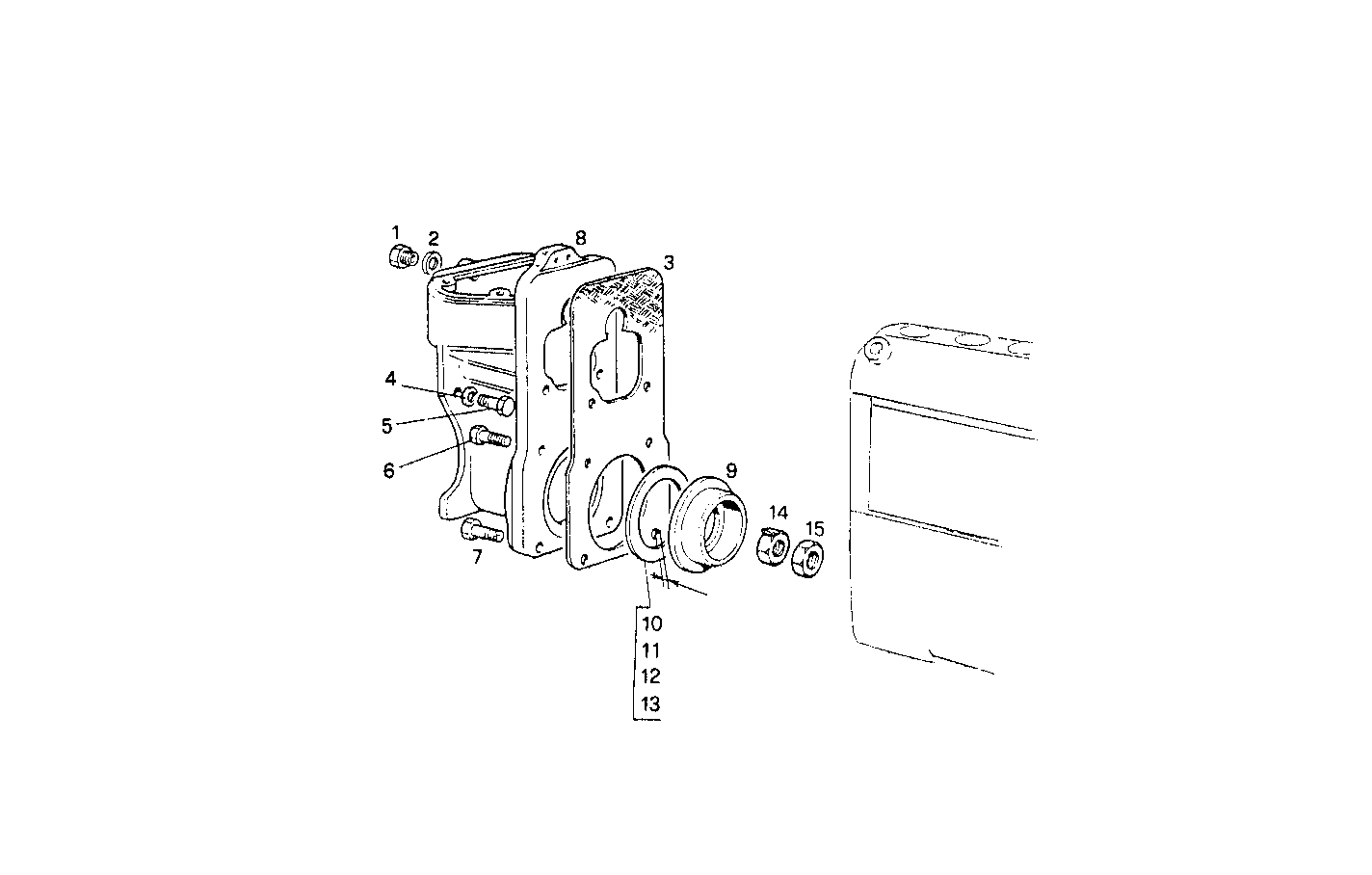

1460.044/02 ELECTRONIC SPEED GOVERNOR

Iveco/FPT ELECTRONIC SPEED GOVERNOR

Item Part number Description
1 16992411 THREADED PLUG M16X1,5
2 4858609 WASHER Ø16X22 MM SP=1,5 MM
3 8015485 GASKET
4 17088474 WASHER Ø6X12 MM
5 4934404 SCREW
6 14309221 SCREW M6X65
7 16689134 SOCKET-HEAD SCREW M6X16 MM
8 8007450 TIMINGGEAR HOUSIN
9 8108613 FLANGE
10 772277 SHIM SP=1,2 MM
11 772278 SHIM SP=1,5 MM
12 772279 SHIM SP=1,8 MM
13 772280 SHIM SP=2,00 MM
14 8108716 NUT
15 16979931 HEXAGON NUT M12
