GS8361SRi26.05

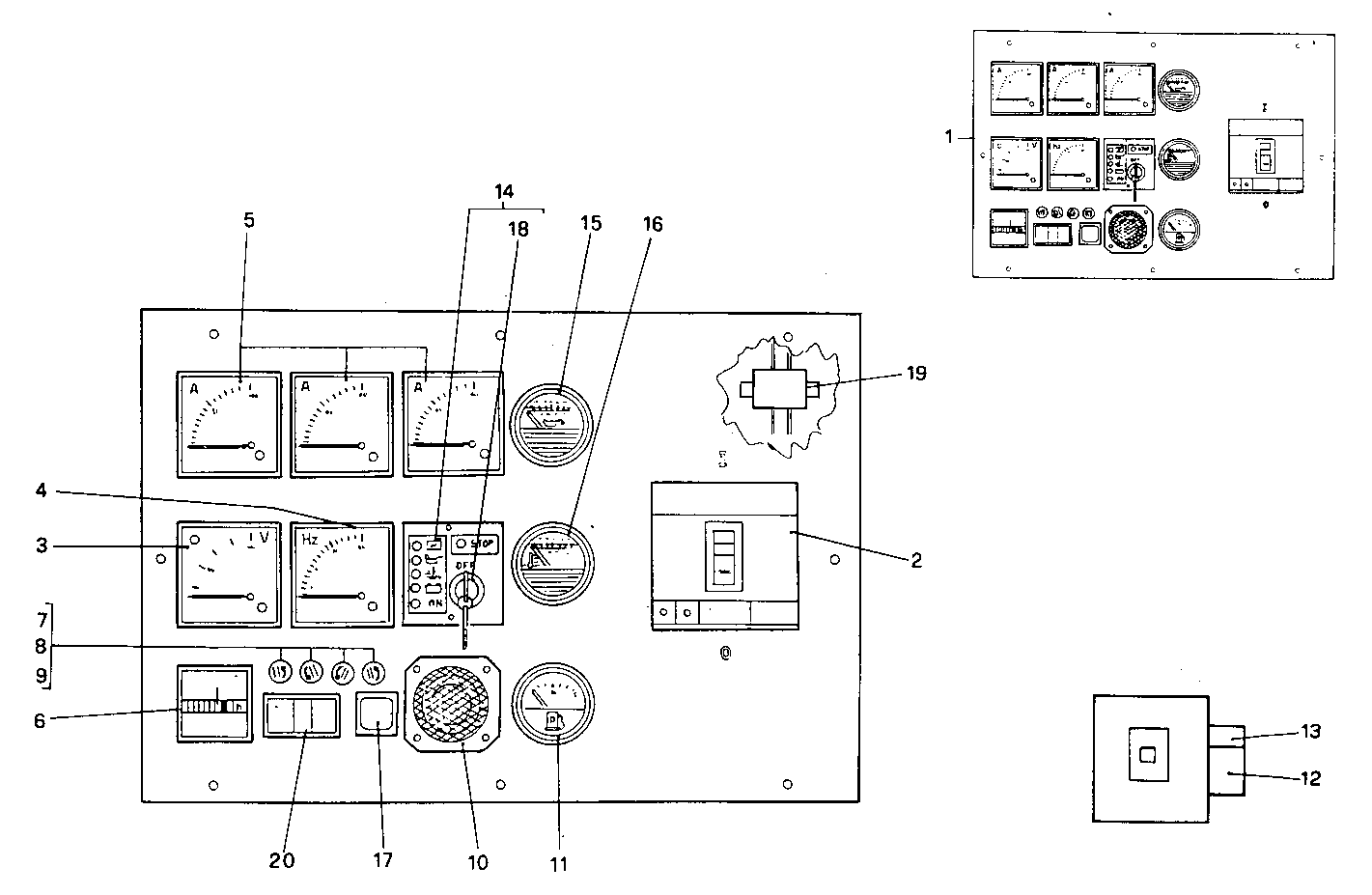

A60000917 MANUAL CONTROL BOARD
| Item |
Part number |
Description |
|
1 |
8092166 |
CONTROL BOARD ASSY ASSY |
|
2 |
8092167 |
SWITCH |
|
3 |
8092128 |
VOLTMETER |
|
4 |
8092129 |
FREQUENCYMETER |
|
5 |
8092168 |
AMMETER |
|
6 |
8092131 |
HOURMETER |
|
7 |
8092132 |
FUSE BOX |
|
8 |
8092133 |
FUSE 2 A |
|
9 |
8092134 |
FUSE 20 A |
|
10 |
8092159 |
ACOUSTIC HORN |
|
11 |
8092160 |
FUEL LEVEL GAUGE |
|
12 |
8092165 |
RELAY |
|
13 |
8092169 |
MINIMUN TENSION COIL |
|
14 |
8092161 |
ELECTRONIC CARD |
|
15 |
8092162 |
OIL PRESSURE GAUGE |
|
16 |
8092163 |
THERMOMETER |
|
17 |
8092222 |
PUSH BUTTON |
|
18 |
8092224 |
SWITCH |
|
19 |
8100713 |
TRANSFORMATOR 400/5A |
|
20 |
8092223 |
PUSH BUTTON |
