GS8361SRi26.05

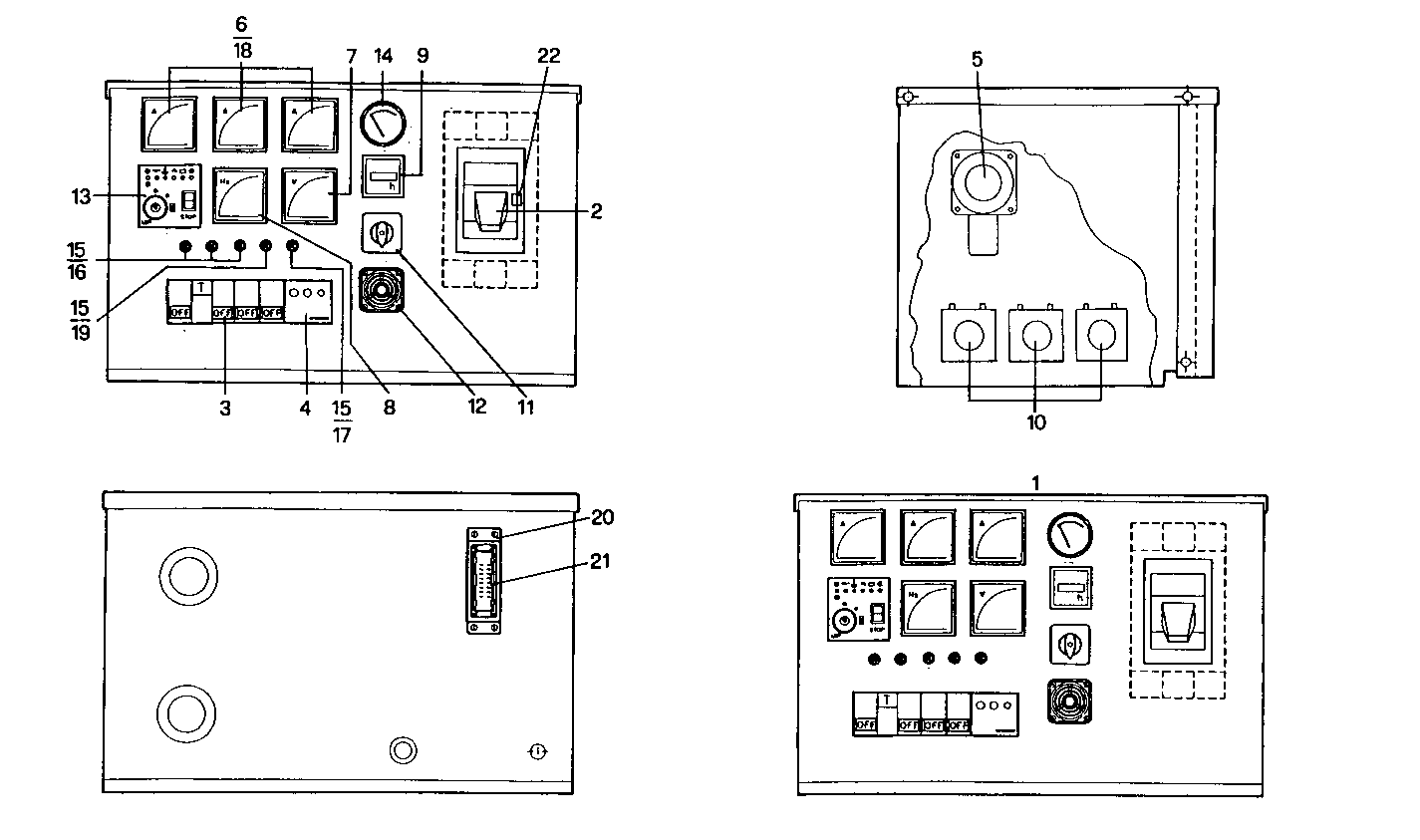

A60000934 MANUAL CONTROL BOARD [D 12-1996] [from12-1996]
| Item |
Part number |
Description |
|
1 |
8093157 |
CONTROL BOARD ASSY ASSY |
|
2 |
8093272 |
SWITCH |
|
3 |
8092798 |
DIFFERENTIAL SWITCH |
|
4 |
8092806 |
RELAY |
|
5 |
8092814 |
MINIMUN TENSION COIL |
|
6 |
8093259 |
AMMETER |
|
7 |
8100665 |
VOLTMETER |
|
8 |
8100632 |
FREQUENCYMETER |
|
9 |
8090251 |
HOURMETER |
|
10 |
8093276 |
TRANSFORMATOR |
|
11 |
8104624 |
SWITCH |
|
12 |
8107950 |
ACOUSTIC HORN |
|
13 |
8092692 |
ELECTR.CONTR.UNIT |
|
14 |
8092810 |
FUEL LEVEL GAUGE |
|
15 |
8105267 |
FUSE BOX 2A |
|
16 |
8105268 |
FUSE 2A |
|
17 |
8092812 |
FUSE 20 A |
|
19 |
8092813 |
FUSE 4 A |
|
20 |
8092799 |
CONNECTION |
|
21 |
8092809 |
CONNECTION |
|
22 |
8093273 |
MINIMUN TENSION COIL |
