GS8361SRi26.06A601

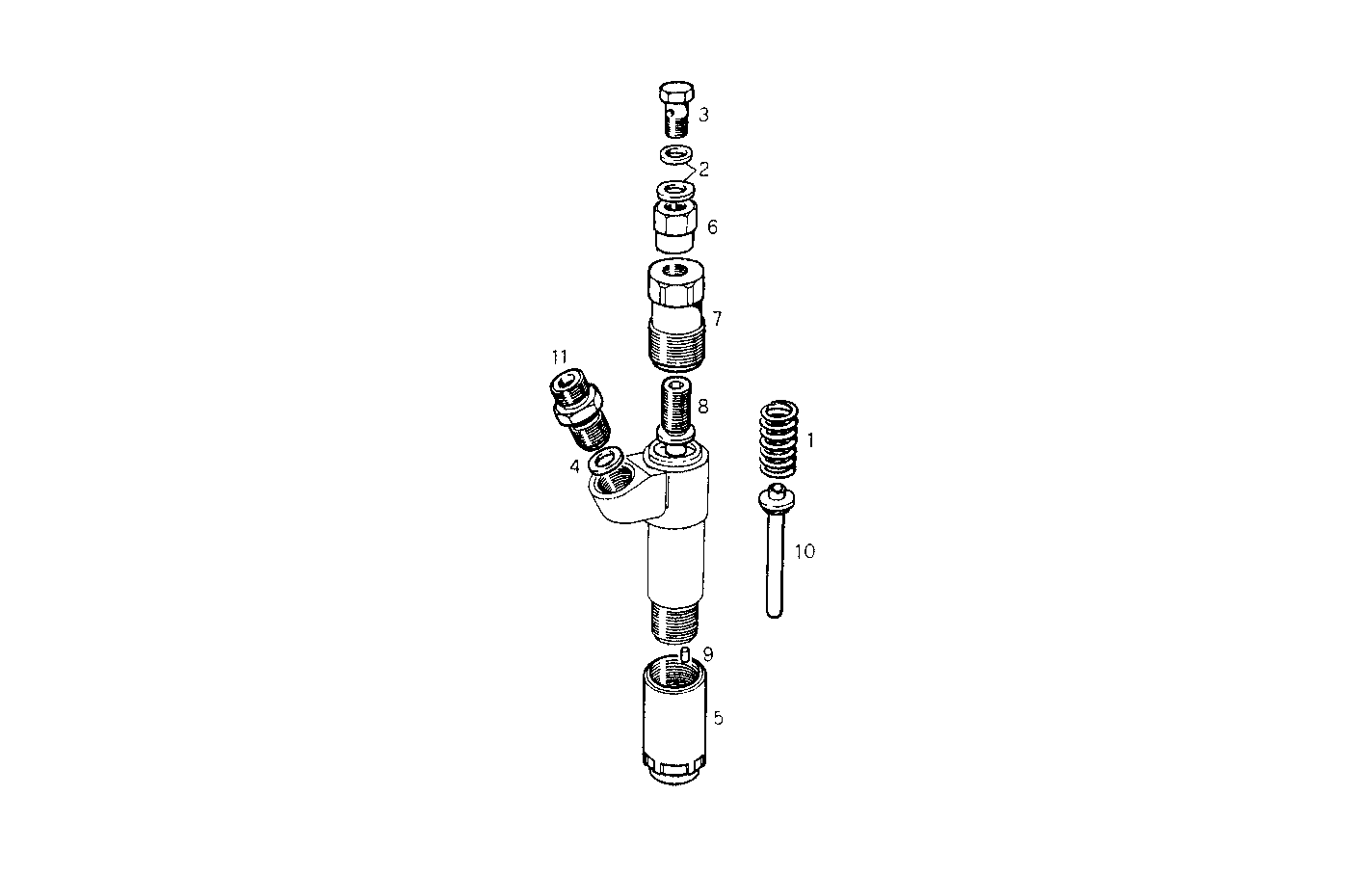

1430.013 NOZZLE HOLDER (COMPONENTS) - Bosch
Item | Part number | Description |
---|---|---|
1 | 656829 | SPRING |
2 | 772052 | GASKET |
3 | 9009403 | SCREW CONNECTOR |
4 | 772047 | GASKET |
5 | 9930867 | CONNECTOR SLEEVE |
6 | 9930868 | THREADED UNION |
7 | 9930870 | ADJUSTING SCREW |
8 | 9930871 | DRAIN SCREW |
9 | 9984028 | PARALLEL PIN |
10 | 9984029 | ROD |
11 | 9984030 | THREADED UNION |
