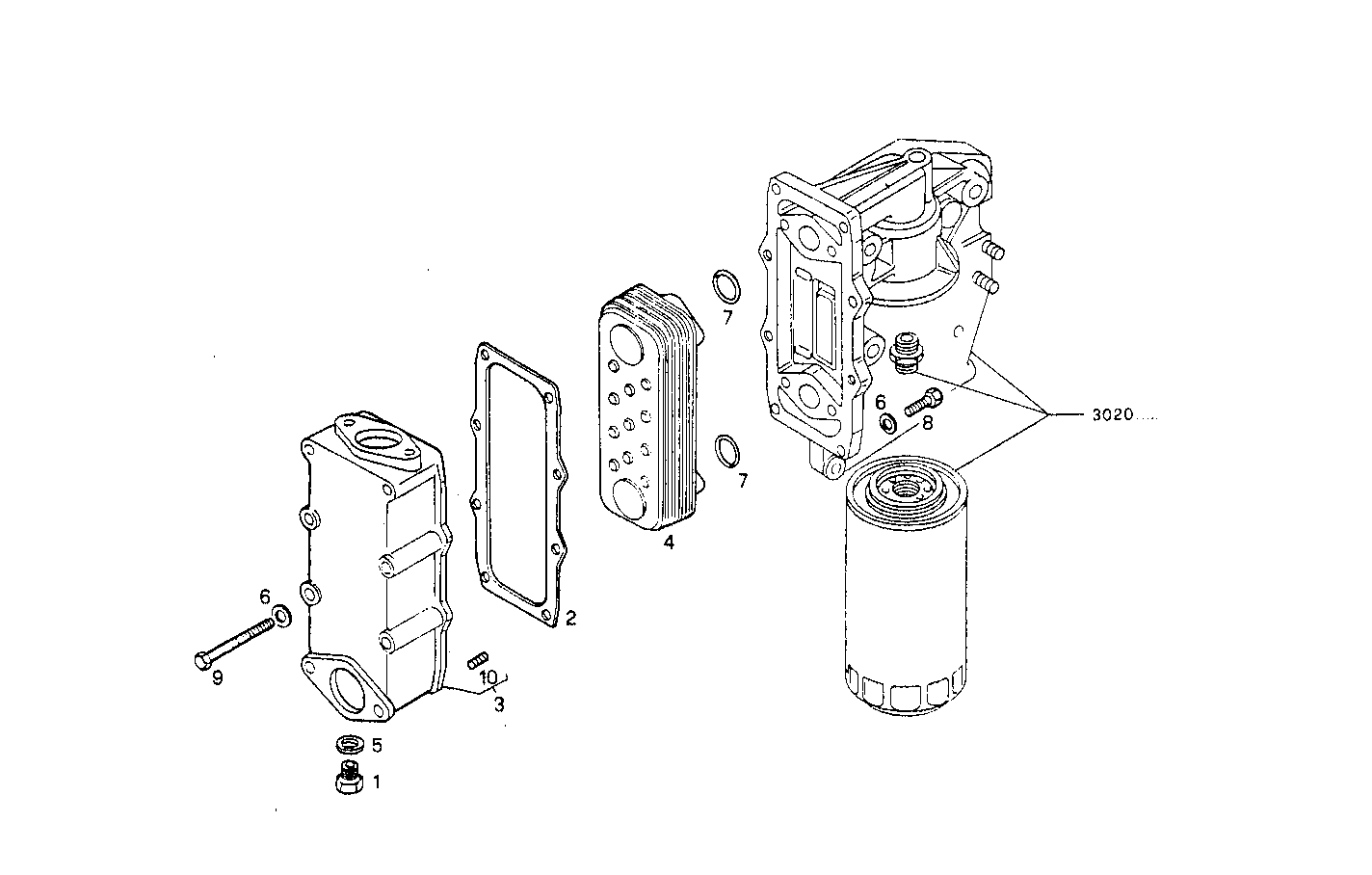

3100.008 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4595833 THREADED PLUG M20X1,5
2 4795338 GASKET
3 4754653 HEAT EXANGER BODY ASSY
4 61689530 OIL COOLER
5 10263360 SEAL GASKET 20x26x1
6 17090274 WASHER Ø10X20 MM
7 14459081 O-RING Ø2,62X44,12 MM
8 16625734 HEXAGON BOLT M8X35
9 16045421 HEXAGON BOLT M8X110 MM
10 13582271 THREADED INSERT M8
