GS8361SRi26.06A651

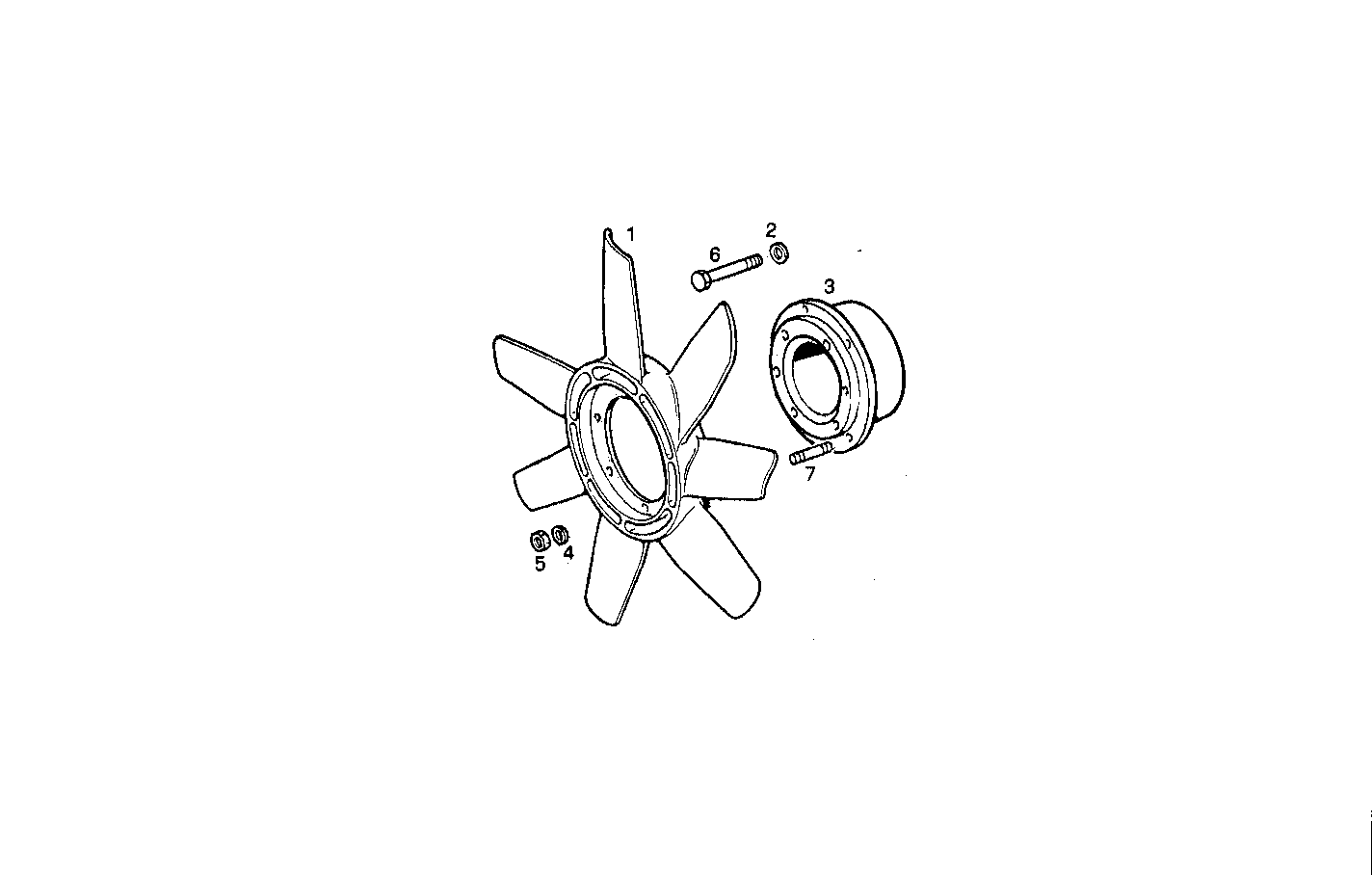

3230.008 FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 8021734 | FAN Ø650 MM |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 8011257 | HUB |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 15971830 | HEXAGON BOLT M10X1,25X100 MM |
| 7 | 16746524 | STUD M8X16X16 |
