GS8361SRi26.06A653

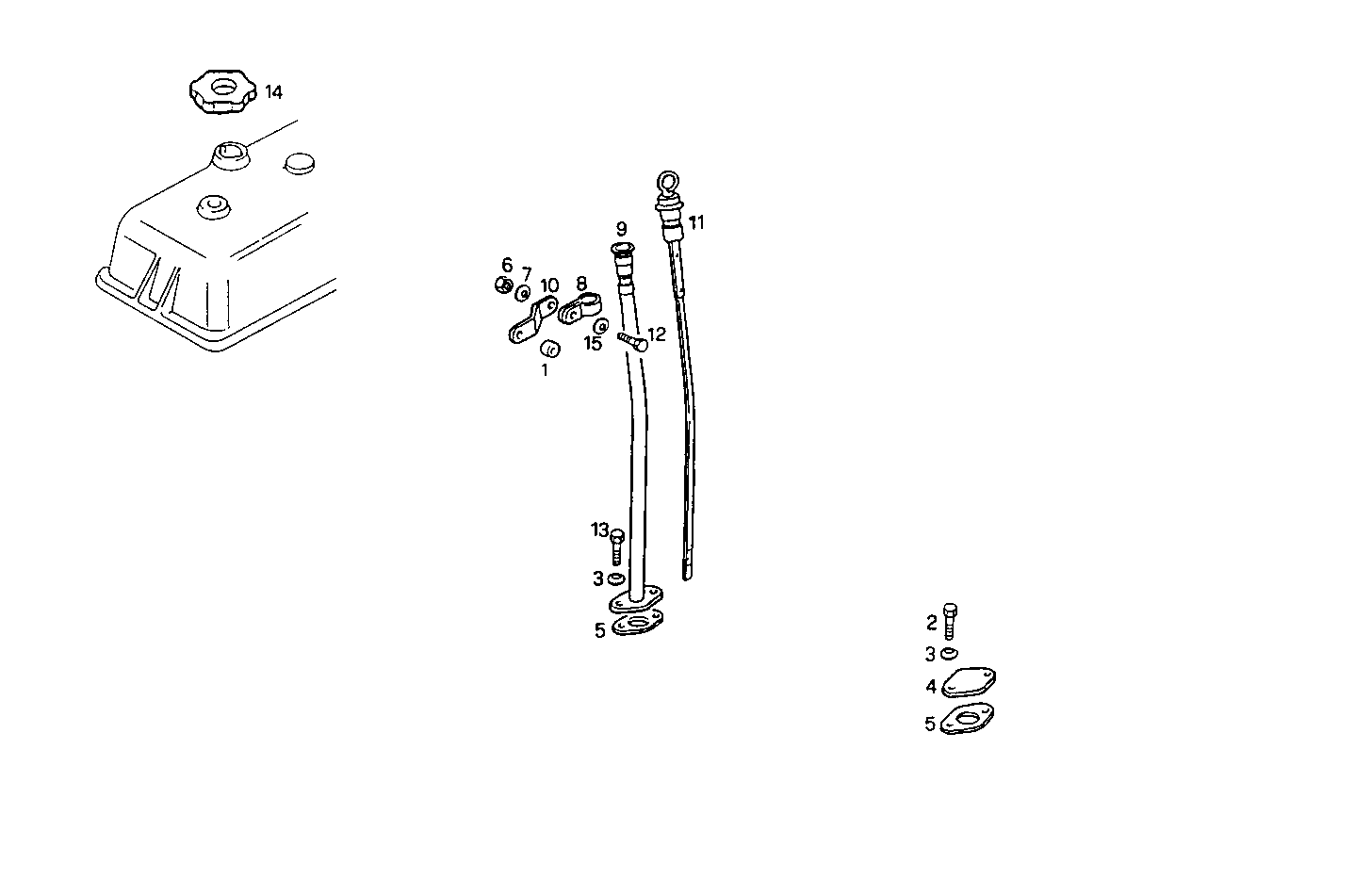

2710.020 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 8109682 | SPACING BAR |
2 | 16043821 | HEXAGON BOLT M8X30 MM |
3 | 17090274 | WASHER Ø10X20 MM |
4 | 4735248 | COVER |
5 | 98412099 | GASKET |
6 | 17037821 | HEXAGON NUT M6X1 |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 17315290 | LOCK/YOKE |
9 | 98424520 | ROD GUIDE |
10 | 4735924 | RETAINER |
11 | 4735922 | OIL DIPSTICK |
12 | 16604324 | HEXAGON BOLT M6X50 MM (8.8) |
14 | 98418980 | OIL FILLER PLUG ASSY |
