GS8361SRi26.06A653

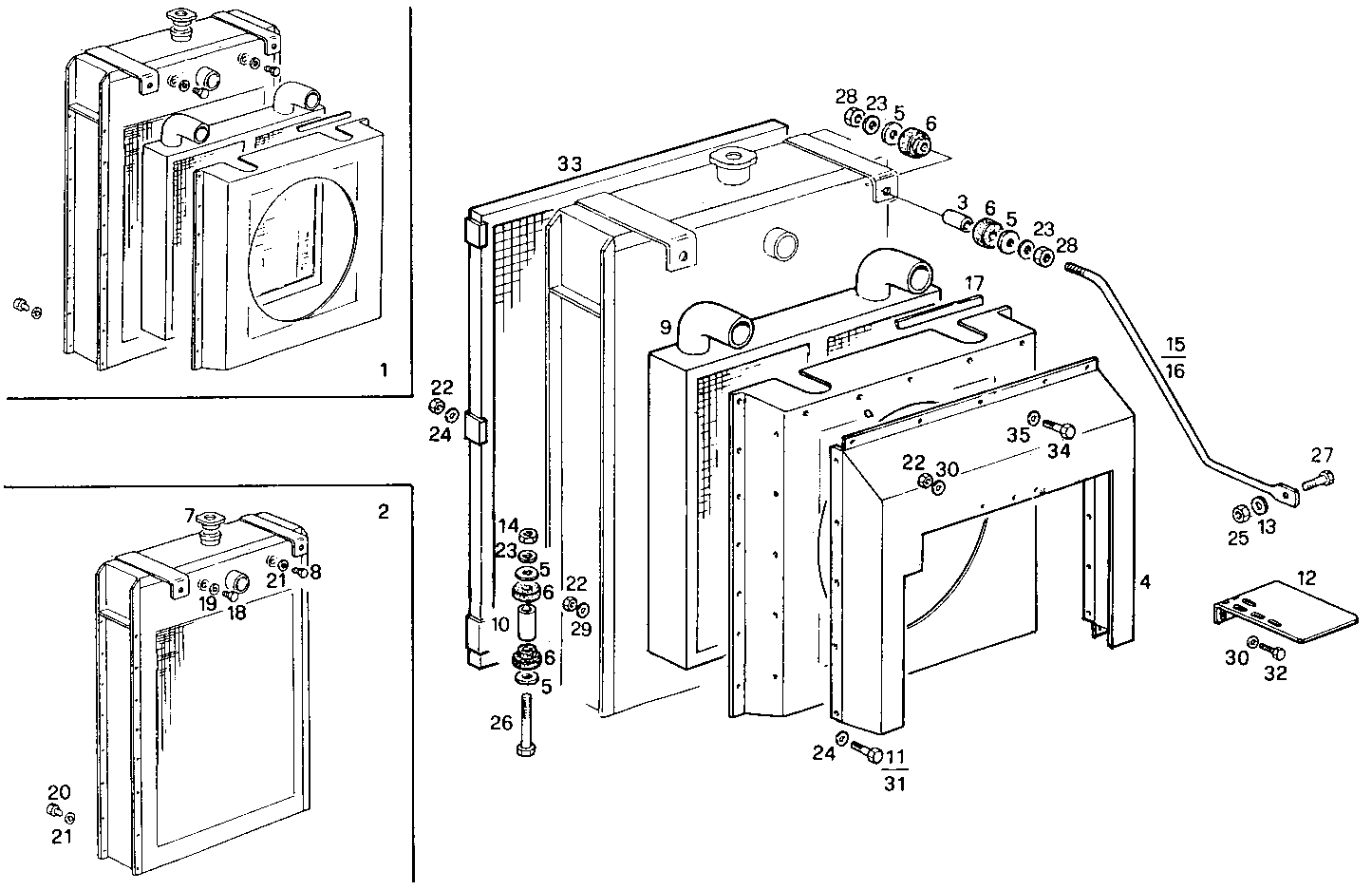

3300.011/01 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8018494 WATER RADIATOR ASSY
2 8007076 WATER RADIATOR
3 741571 SPACING BAR Ø10X17 MM SP=2,3
4 8014848 PROTECTION
5 741570 WASHER Ø10X17 MM SP=2,3
6 741569 RUBBER LUG
7 8107632 RADIATOR PLUG
8 8105096 PLUG
9 8018492 AIR/AIR INTERCOOLER
10 8108634 SPACING BAR
11 16605424 SCREW M8X16 MM (8.8)
12 8014327 PROTECTION
13 17090174 SPRING WASHER Ø10X20 MM
14 17038421 HEXAGON NUT M12 (8)
15 8114381 TIE ROD LEFT
16 8114382 TIE ROD RIGHT
17 8008159 GASKET
18 10300511 LOCK PLUG M12X1,5
19 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
20 10300611 LOCK PLUG M14X1,5
21 4858608 SEAL GASKET dia.14x19,5x1,5
22 17037931 HEXAGON NUT M8X1,25
23 17091074 WASHER Ø12X24X2,8 MM
24 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
25 17038221 HEXAGON NUT M10
26 16610724 SCREW M12X1,75X70 MM
27 15004021 HEXAGON BOLT M10X1,25X25 MM
28 17038621 NUT M12
29 17094914 WASHER 8x16
30 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
31 16605624 HEXAGON BOLT M8X25 MM (8.8)
33 8107633 PROTECTION
34 16603624 HEXAGON BOLT M6X16 MM (8.8)
35 17088974 SPRING WASHER Ø6X18X1,4 MM
