N40ENT426.00A001

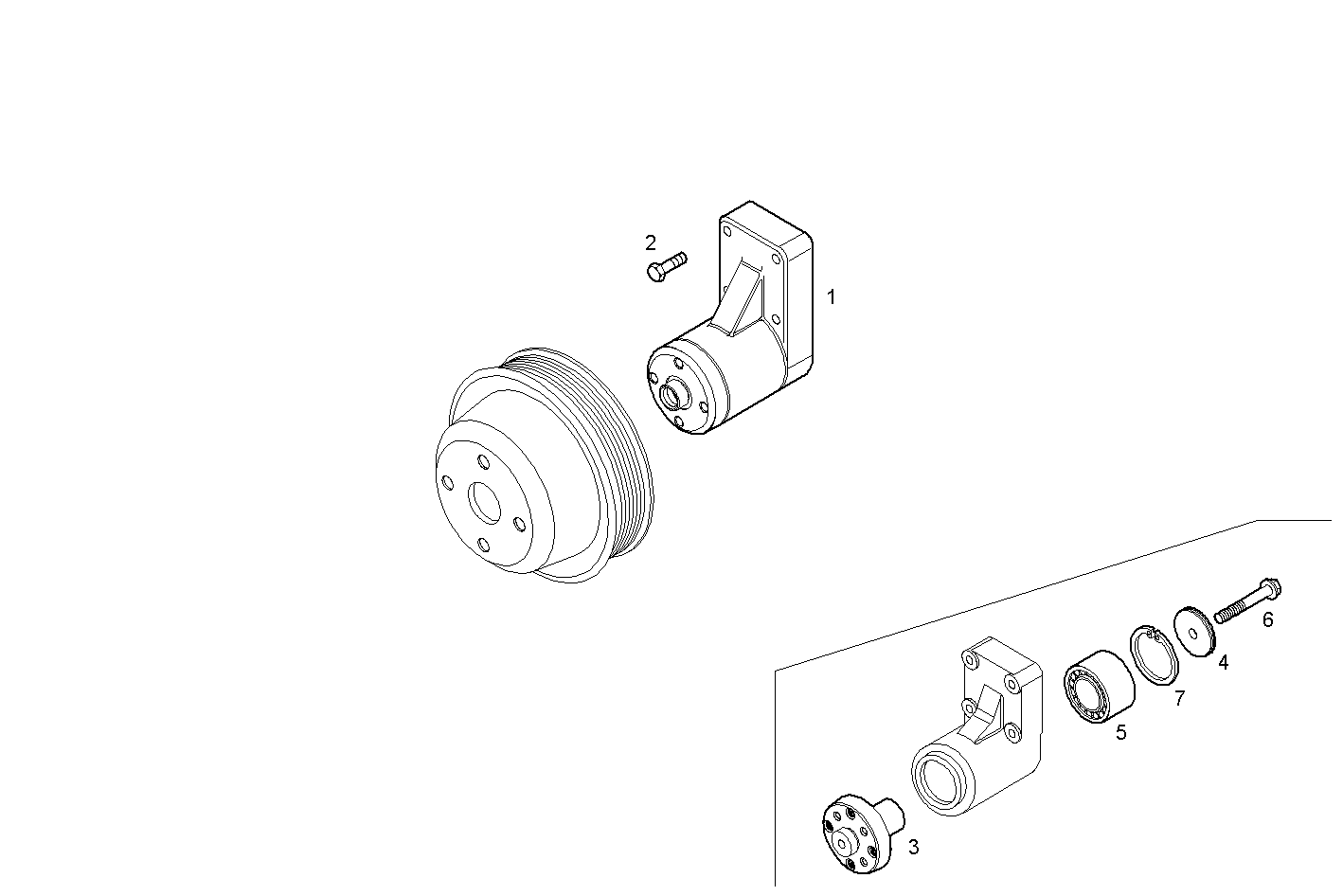

3490.003 FAN SUPPORT
Item | Part number | Description |
---|---|---|
1 | 504055030 | SUPPORT |
2 | 4895323 | HEXAGON BOLT [UP TO 26-11-07] |
3 | 4892426 | HUB |
4 | 4890732 | WASHER |
5 | 4892732 | BALL BEARING |
6 | 16676834 | HEXAGON BOLT M10X70 MM |
7 | 500395697 | SPRING LOCKWASHER |
