N40ENTC21.00A014

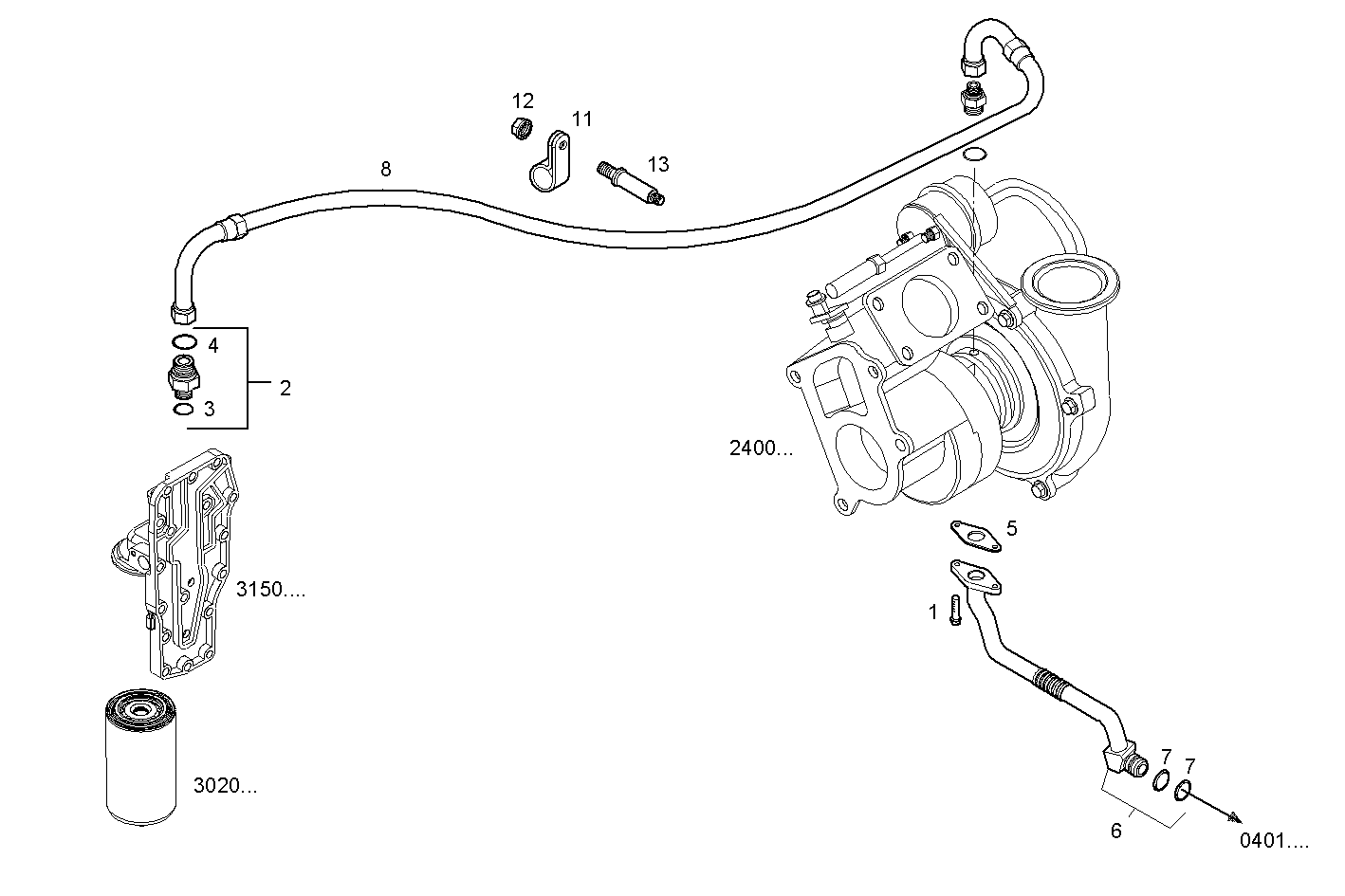

3063.032 TURBOCHARGER OIL LINES

Iveco/FPT TURBOCHARGER OIL LINES

Item Part number Description
1 4899110 HEXAGON BOLT
2 4895107 THREADED UNION ASSY
3 4899107 O-RING
4 4899108 O-RING
5 4891629 FLAT ENGINE GASKET
6 4892479 OIL LINE
7 4899058 O-RING
8 4899377 OIL LINE
11 4899436 CLIP M8X17 MM
12 17044731 HEXAGON NUT M8
13 4896991 COLLAR SCREW
