N40ENTC21.00A022

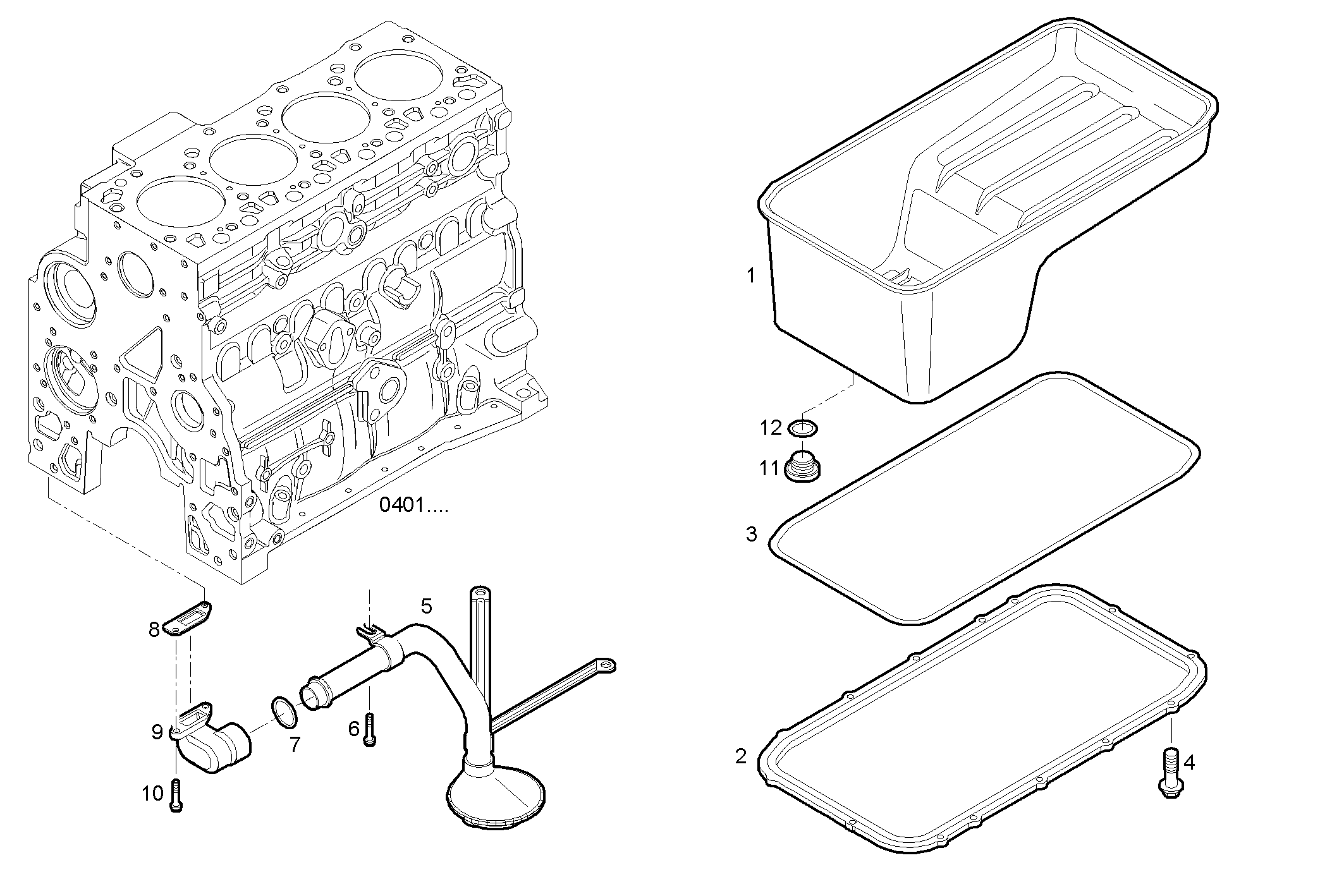

0420.008 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500388253 | OIL SUMP |
| 2 | 4897876 | SPACING BAR |
| 3 | 4897877 | OIL SUMP GASKET |
| 4 | 4899091 | HEXAGON BOLT |
| 5 | 504082952 | SUCTION STRAINER |
| 6 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
| 7 | 17282381 | O-RING Ø25,07 MM SP=2,62 MM |
| 8 | 4898301 | FLAT ENGINE GASKET |
| 9 | 500389883 | INTAKE ELBOW |
| 10 | 4899079 | HEXAGON BOLT |
| 11 | 4894139 | THREADED PLUG M22X1,5 |
| 12 | 17282280 | O-RING Ø2,62X23,47 MM |
