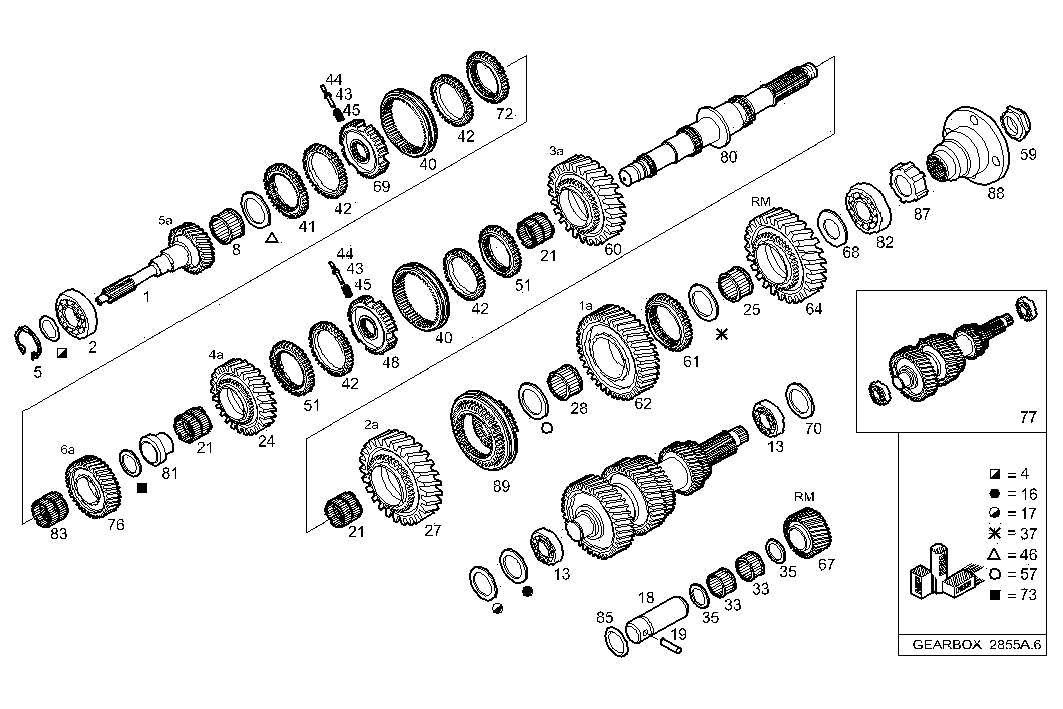

| Item |
Part number |
Description |
|
1 |
8868346 |
INPUT SHAFT |
|
2 |
1905490 |
GEARBOX BEARINGS Ø60X110 MM SP=22 MM |
|
4 |
8870942 |
SET OF SHIMS |
|
5 |
16868373 |
CIRCLIP |
|
8 |
1905270 |
ROLLER CAGE Ø30X48 MM SP=31 MM |
|
13 |
1905252 |
GEARBOX BEARINGS Ø40X75 MM SP=26 MM |
|
16 |
8860774 |
SHIM KIT |
|
17 |
2992481 |
SET OF SHIMS |
|
18 |
8861569 |
RETURN SHAFT REVERSE |
|
19 |
17259070 |
DOWEL PIN |
|
21 |
1905241 |
ROLLER CAGE Ø74X66 MM SP=36 MM |
|
24 |
8859268 |
SPLITTER GEAR 4TH SPEED |
|
25 |
1905243 |
ROLLER CAGE Ø55X63 MM SP=32 MM |
|
27 |
8859266 |
SPLITTER GEAR 2ND SPEED |
|
28 |
1905253 |
ROLLER CAGE Ø60X68 MM SP=34 MM |
|
33 |
1905254 |
ROLLER CAGE Ø60X68 MM SP=34 MM |
|
35 |
8860343 |
STOP WASHER |
|
37 |
8860776 |
SET OF SHIMS |
|
40 |
8870651 |
SLIDING SLEEVE |
|
41 |
8861579 |
SYNCHRONIZER |
|
42 |
8871189 |
SYNCHRONIZER |
|
43 |
8871221 |
CONTROL PISTON |
|
44 |
8856938 |
PARALLEL ROLLER |
|
45 |
8870696 |
SPRING |
|
46 |
8861510 |
SET OF SHIMS |
|
48 |
8871183 |
GEAR BOX HUB |
|
51 |
8861581 |
SYNCHRONIZER |
|
57 |
8860775 |
REVERSE GEAR |
|
59 |
8858586 |
NUT M33X1,5 |
|
60 |
8859267 |
SPLITTER GEAR 3RD SPEED |
|
61 |
8859329 |
GEAR BOX HUB |
|
62 |
8859757 |
SPLITTER GEAR 1ST SPEED |
|
64 |
8859759 |
REVERSE GEAR |
|
67 |
8859775 |
REVERSE GEAR |
|
68 |
8859871 |
STOP WASHER |
|
69 |
8871186 |
GEAR BOX HUB |
|
70 |
8870691 |
SPACING BAR |
|
72 |
8861640 |
SYNCHRONIZER Ø40X80 MM SP=32 MM |
|
73 |
8861809 |
SET OF SHIMS |
|
76 |
8863110 |
SPLITTER GEAR 5TH SPEED |
|
77 |
99808057 |
COUNTERSHAFT ASSY |
|
80 |
8869112 |
MAIN SHAFT |
|
81 |
8869113 |
PLUG-IN SLEEVE |
|
82 |
1905396 |
DRIVE BEARING Ø45X100 MM SP=25 MM |
|
83 |
1905258 |
ROLLER CAGE Ø45X38 MM SP=34 MM |
|
85 |
17282481 |
O-RING Ø26,64 MM SP=2,62 MM |
|
87 |
8859212 |
WORM |
|
88 |
8859401 |
SHIFT SLEEVE ASSY GKN |
|
89 |
8871354 |
SYNCHRONIZ.COMPLET |
