N40ENTC21.00L019

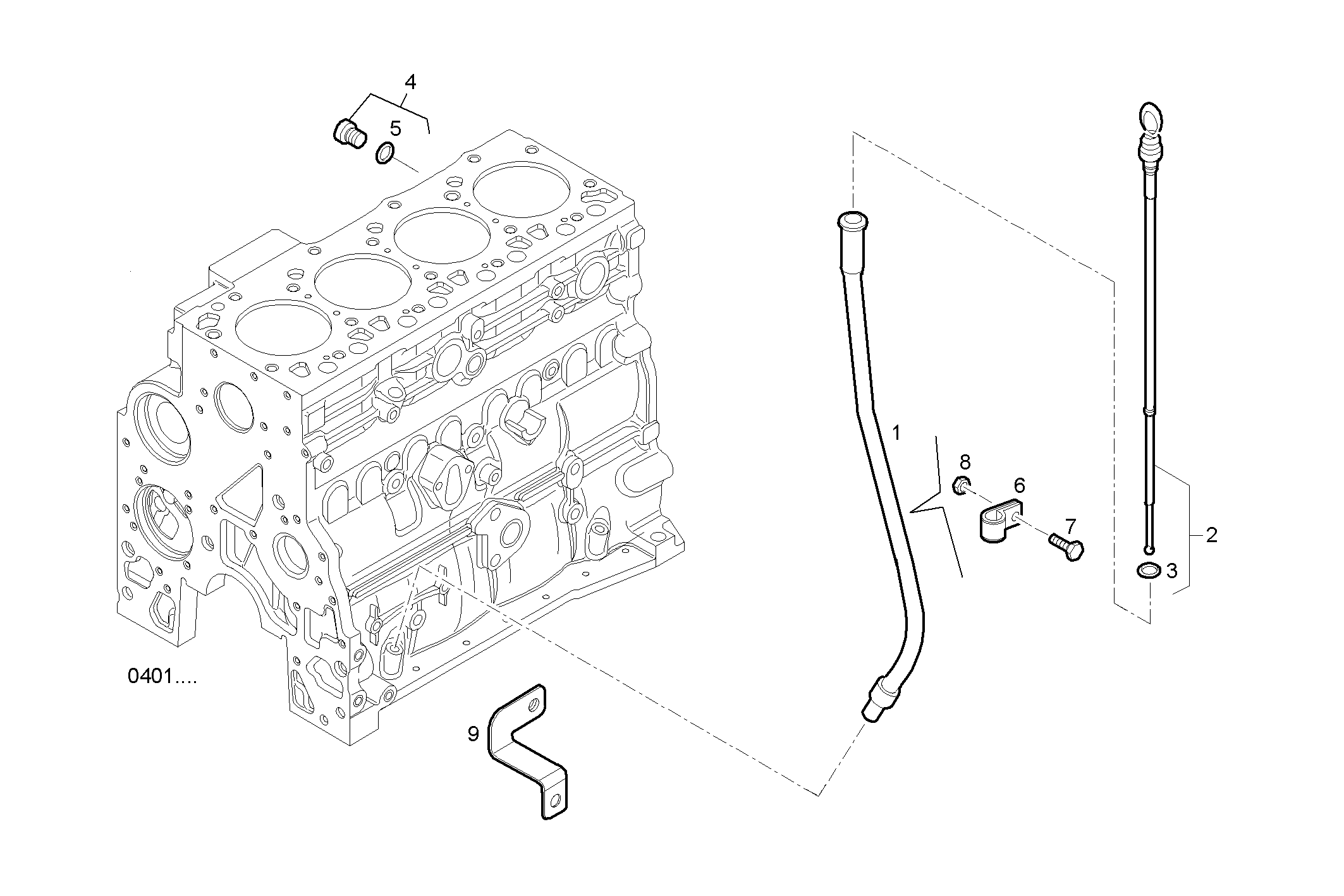

2700.058 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504100837 | OIL LEVEL TUBE |
| 2 | 504081024 | OIL DIPSTICK |
| 3 | 4898502 | O-RING |
| 4 | 4897330 | PLUG ASSY M12X1,5 |
| 5 | 4895610 | O-RING |
| 6 | 17310601 | FASTENING BRACKET |
| 7 | 16609725 | HEXAGON BOLT M6X14 MM |
| 8 | 17044625 | HEXAGON NUT M6 |
| 9 | 8038916 | RETAINER |
