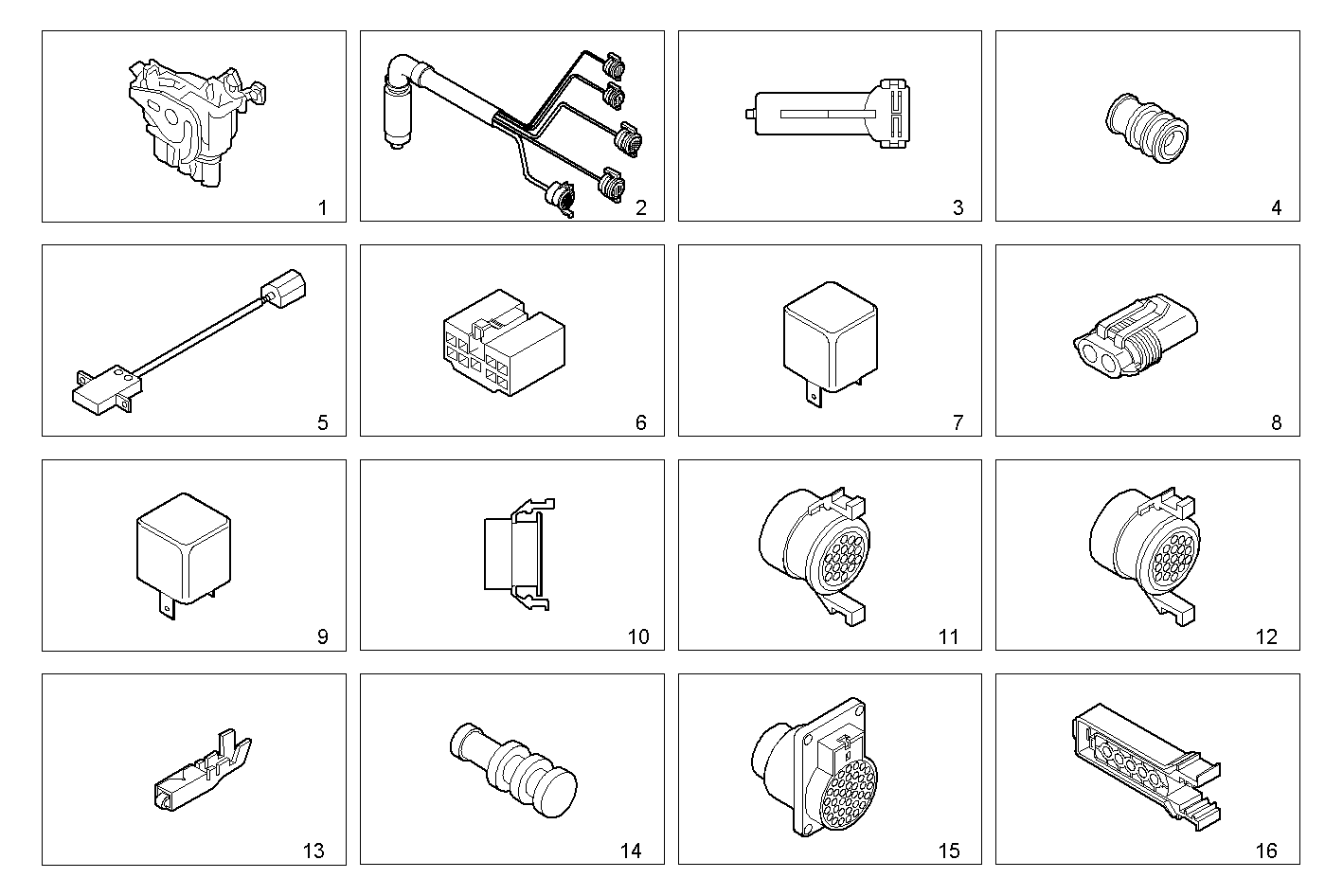

| Item |
Part number |
Description |
|
1 |
500363489 |
WIRE CONNECTOR |
|
2 |
8032263 |
WIRE/CABLE ASSY |
|
3 |
500363578 |
COVER |
|
4 |
500363737 |
RUBBER BUSH |
|
5 |
99464594 |
SWITCH for "Blink code" |
|
6 |
8031431 |
WIRE CONNECTOR assy 5 pin female |
|
7 |
504075123 |
RELAY |
|
8 |
8030574 |
WIRE CONNECTOR ASSY [UP TO 27-06-05] |
|
9 |
500362250 |
RELAY 50A 24V |
|
10 |
8035244 |
WIRE CONNECTOR assy 19 pin male -pin layout A |
|
11 |
8032279 |
WIRE CONNECTOR assy 19 pin male -pin layout B |
|
12 |
8032280 |
WIRE CONNECTOR assy 19 pin male -pin layout C |
|
13 |
500363580 |
TERMINAL |
|
14 |
500395785 |
RUBBER BUSH |
|
15 |
8031432 |
WIRE CONNECTOR assy 30 pin female |
|
16 |
8030193 |
WIRE CONNECTOR assy 5 pin female |
