N40ENTD20.00

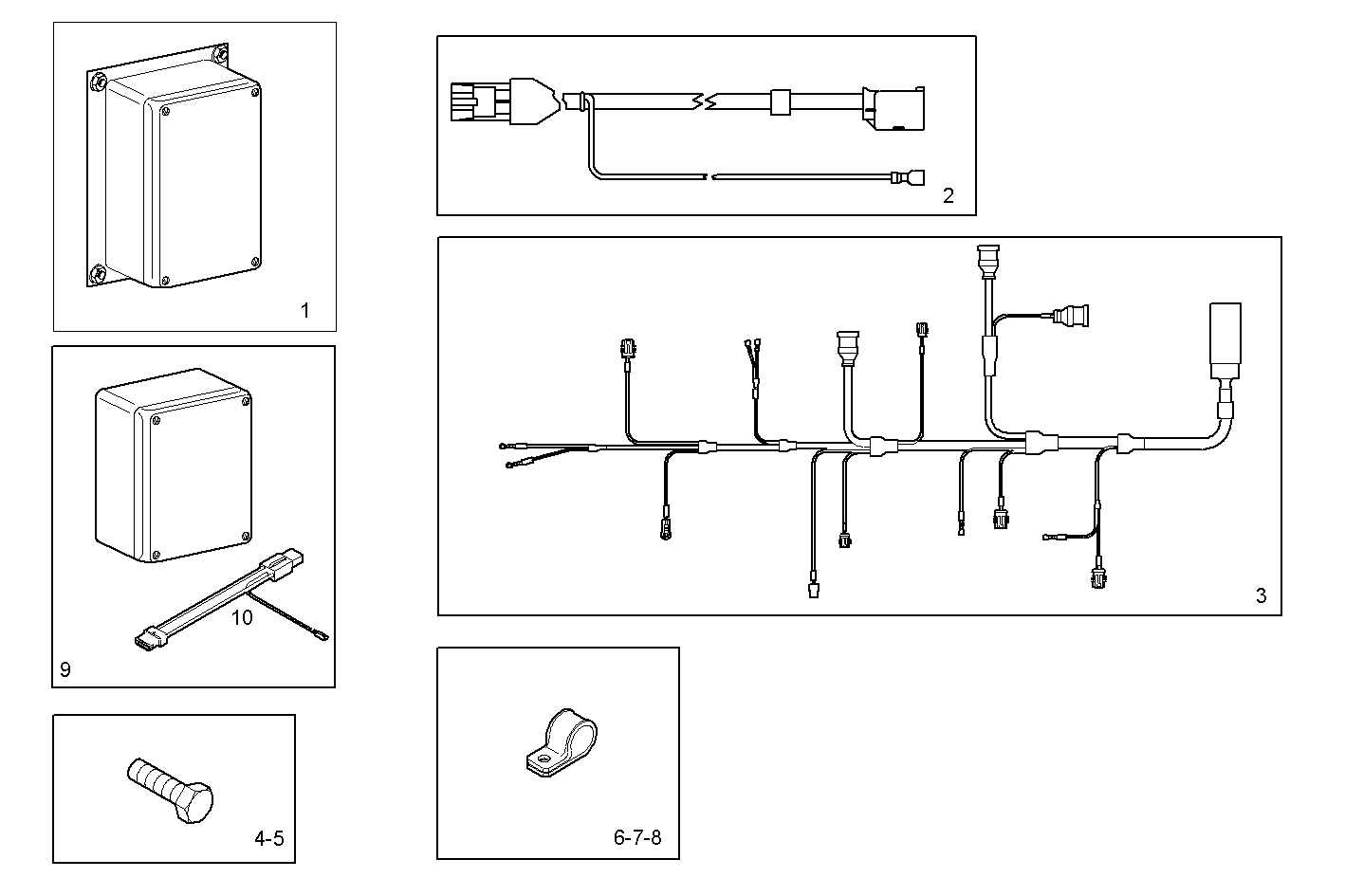

A38100506 CABLES AND FITTING - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8040414 | SWITCHGEAR ASSY |
| 2 | 8037861 | ENGINE HARNESS for alternator |
| 3 | 8049192 | ENGINE HARNESS |
| 4 | 16587024 | HEXAGON BOLT M10X20 MM |
| 5 | 16586224 | HEXAGON BOLT M8X1,25X16 MM |
| 6 | 4936279 | CLIP |
| 7 | 4936278 | CLIP |
| 8 | 17316390 | CLIP |
| 9 | 8052671 | SWITCHGEAR ASSY |
| 10 | 8052686 | WIRE/CABLE |
